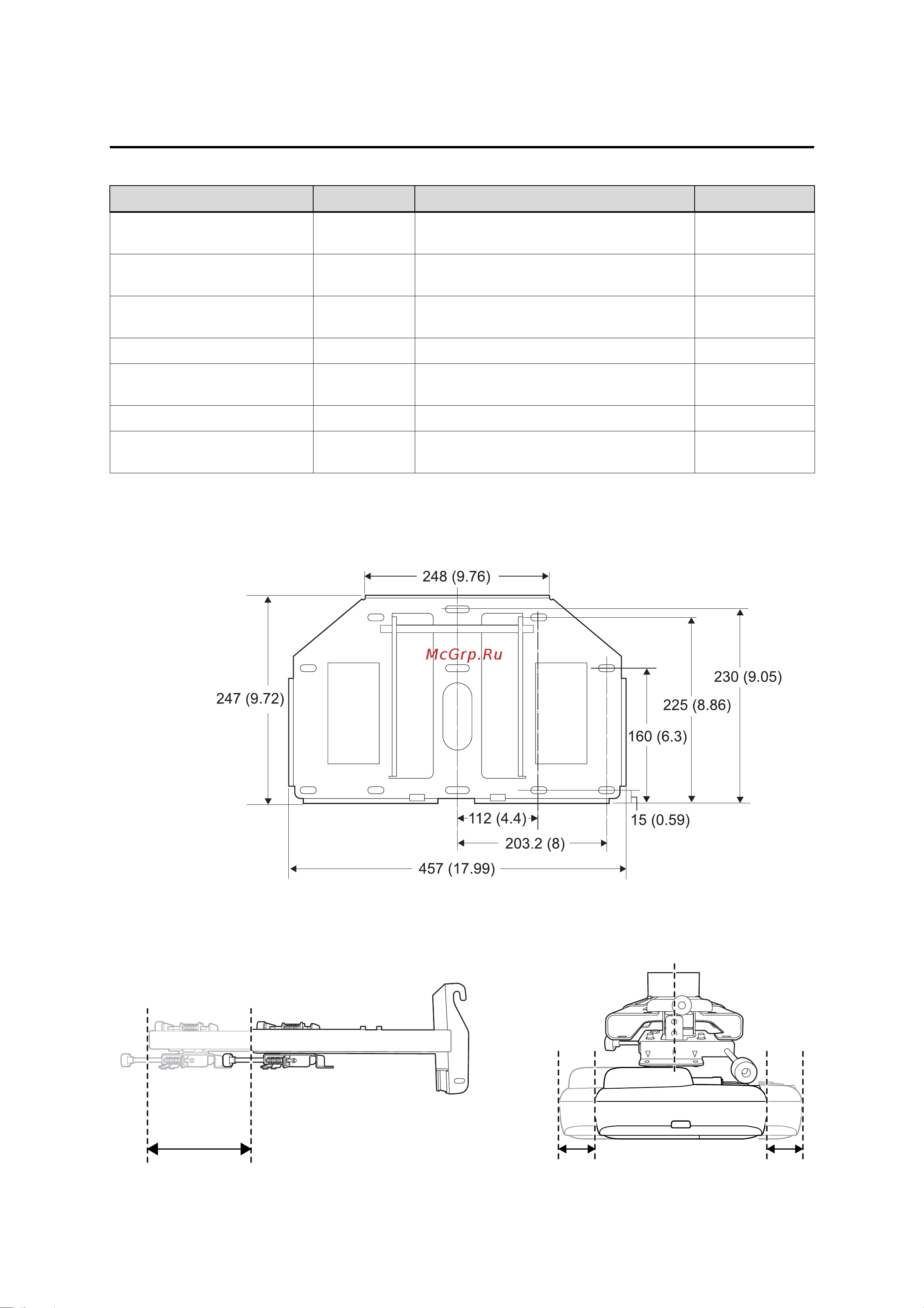

2. Specifications

Wall plate

Mounting bracket adjustment range

Item Specification Remark Reference Page

Mounting bracket mass Approx. 6.3 kg

(13.89 lb.)

Wall plate (2.2 kg [4.85 lb.])

Covers and cap (0.47 kg [1.04 lb.])

Forward/backward slide

adjustment range

0 to 300 mm

(11.81 in.)

Refer to the figure

below

Vertical slide adjustment range ± 4

°

Minimum: 28 mm (1.10 in.)

Maximum: 42.5 mm (1.67 in.)

s p.17

Vertical tilt adjustment range ± 5

°

Fine adjustments possible with adjustment dial

s p.15

Horizontal rotation adjustment

range

± 5

°

Fine adjustments possible with adjustment dial

s p.16

Horizontal roll adjustment range ± 3

°

Fine adjustments possible with adjustment dial

s p.16

Horizontal slide adjustment range ± 45 mm

(1.77 in.)

Refer to the figure

below

[Unit: mm (in.)]

Forward/backward slide adjustment range:

0 to 300 mm (11.81 in.)

Horizontal slide adjustment range:

± 45 mm (1.77 in.)
