BAT1

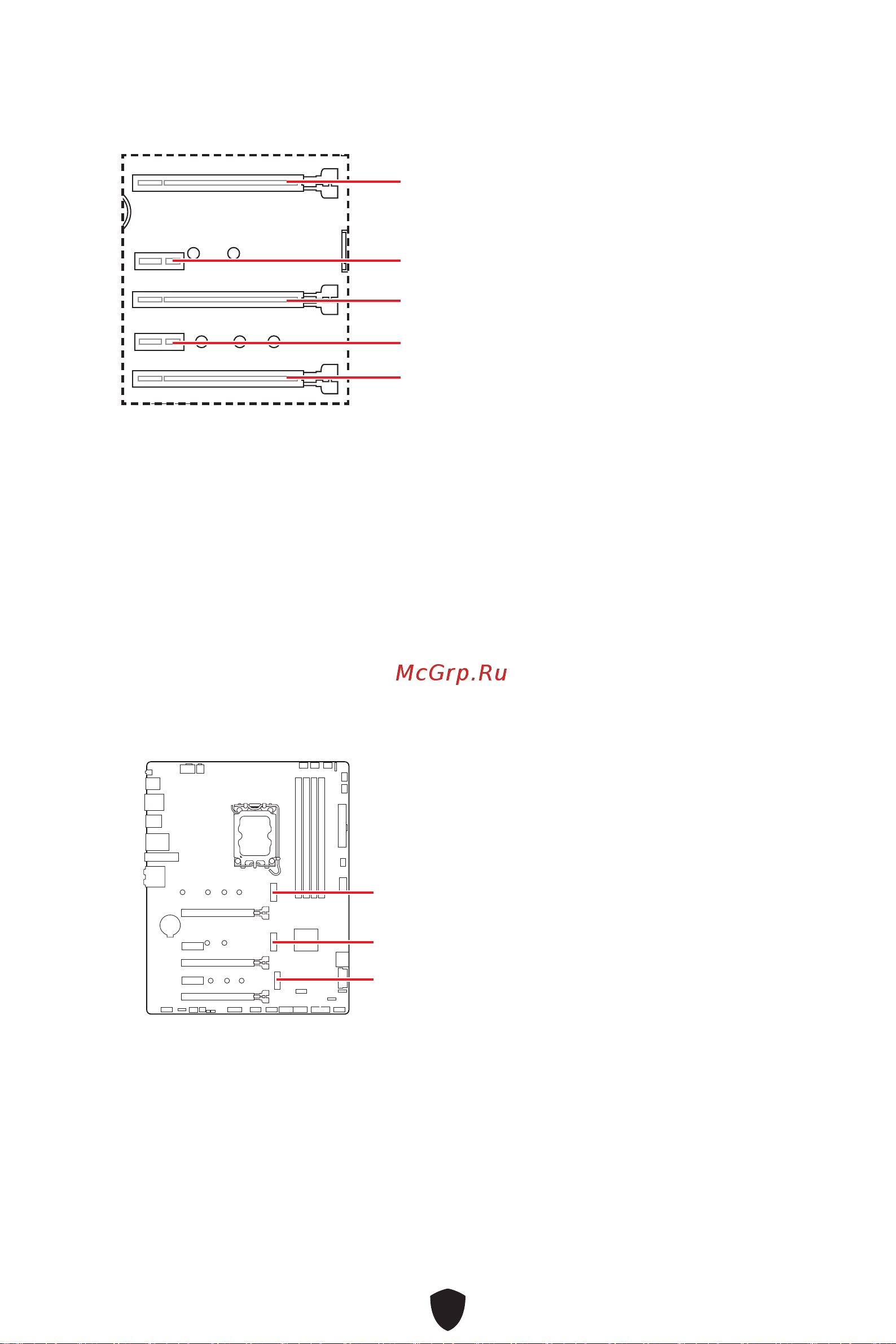

PCI_E1~5: PCIe Expansion Slots

PCI_E1: PCIe 4.0 x16 (From CPU)

PCI_E2: PCIe 3.0 x1 (From Z790 chipset)

PCI_E4: PCIe 3.0 x1 (From Z790 chipset)

PCI_E5: PCIe 4.0 x4 (From Z790 chipset)

PCI_E3: PCIe 4.0 x4 (From Z790 chipset)

⚠

Important

∙

If you install a large and heavy graphics card, you need to use a tool such as MSI

Graphics Card Bolster to support its weight to prevent deformation of the slot.

∙

For a single PCIe x16 expansion card installation with optimum performance, using

the PCI_E1 slot is recommended.

∙

When adding or removing expansion cards, always turn off the power supply and

unplug the power supply power cable from the power outlet. Read the expansion

card’s documentation to check for any necessary additional hardware or software

changes.

M2_1~3: M.2 Slots (Key M)

M2_1

M2_2

M2_3

⚠

Important

∙

Intel® RST only supports PCIe M.2 SSD with UEFI ROM.

∙

If your M.2 SSD equips its own heatsink, please remove the M.2 plates or rubber

cubes in the M.2 slots before installing M.2 SSD. Do not re-install the heatsinks

supplied with your motherboard.
