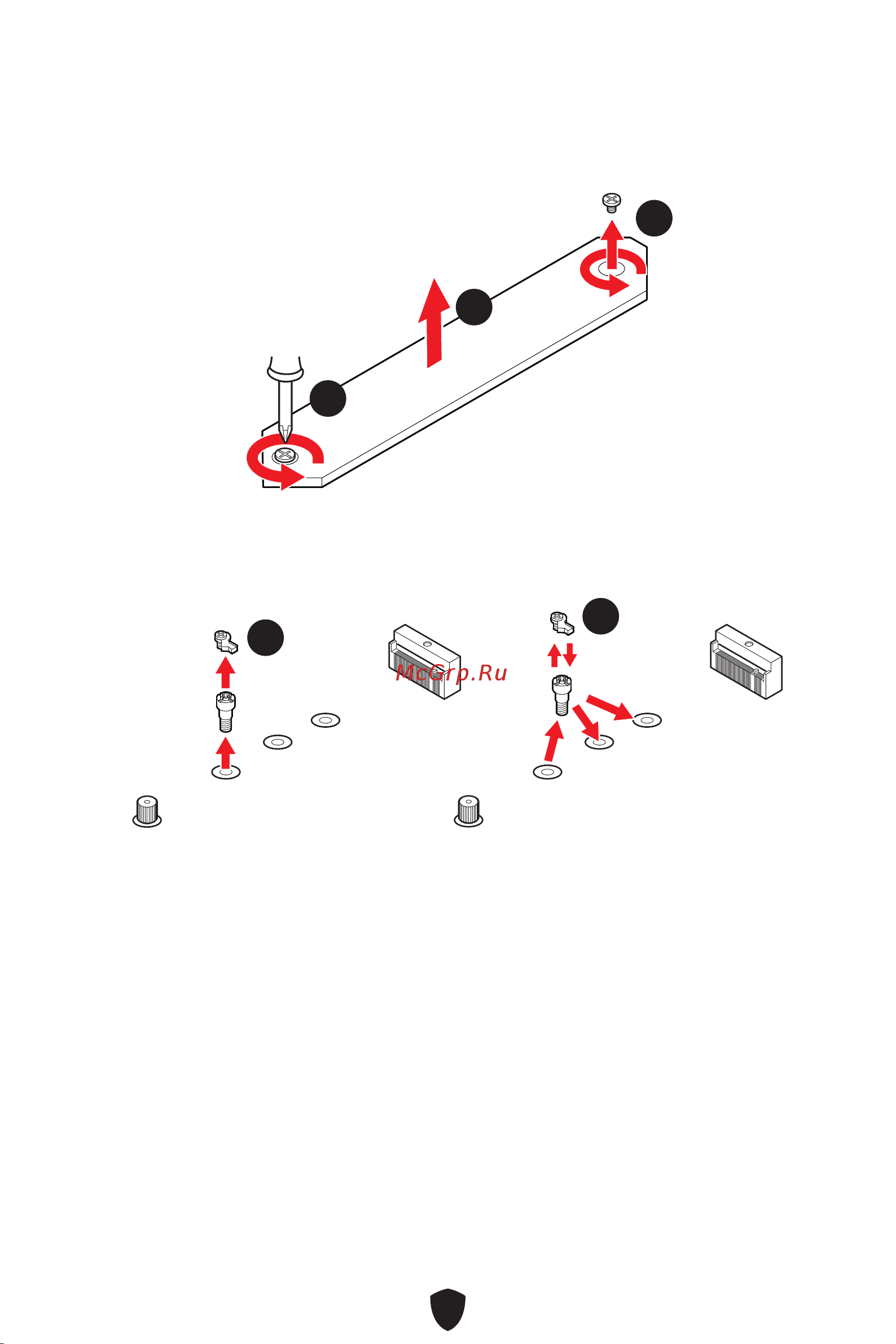

Installing M.2 module into M2_1 slot

1. Loosen the screws of M.2 Shield Frozr heatsink.

2. Lift up the M.2 Shield Frozr heatsink and remove it.

3. For 22110 SSD, remove the EZ M.2 Clip from the 2280 screw hole. For 2242/ 2260

SSD, remove the EZ M.2 Clip from the 2280 screw hole and install it in the 2242/

2260 screw hole. Skip this step if you install 2280 SSD.

22110

2260

2242
