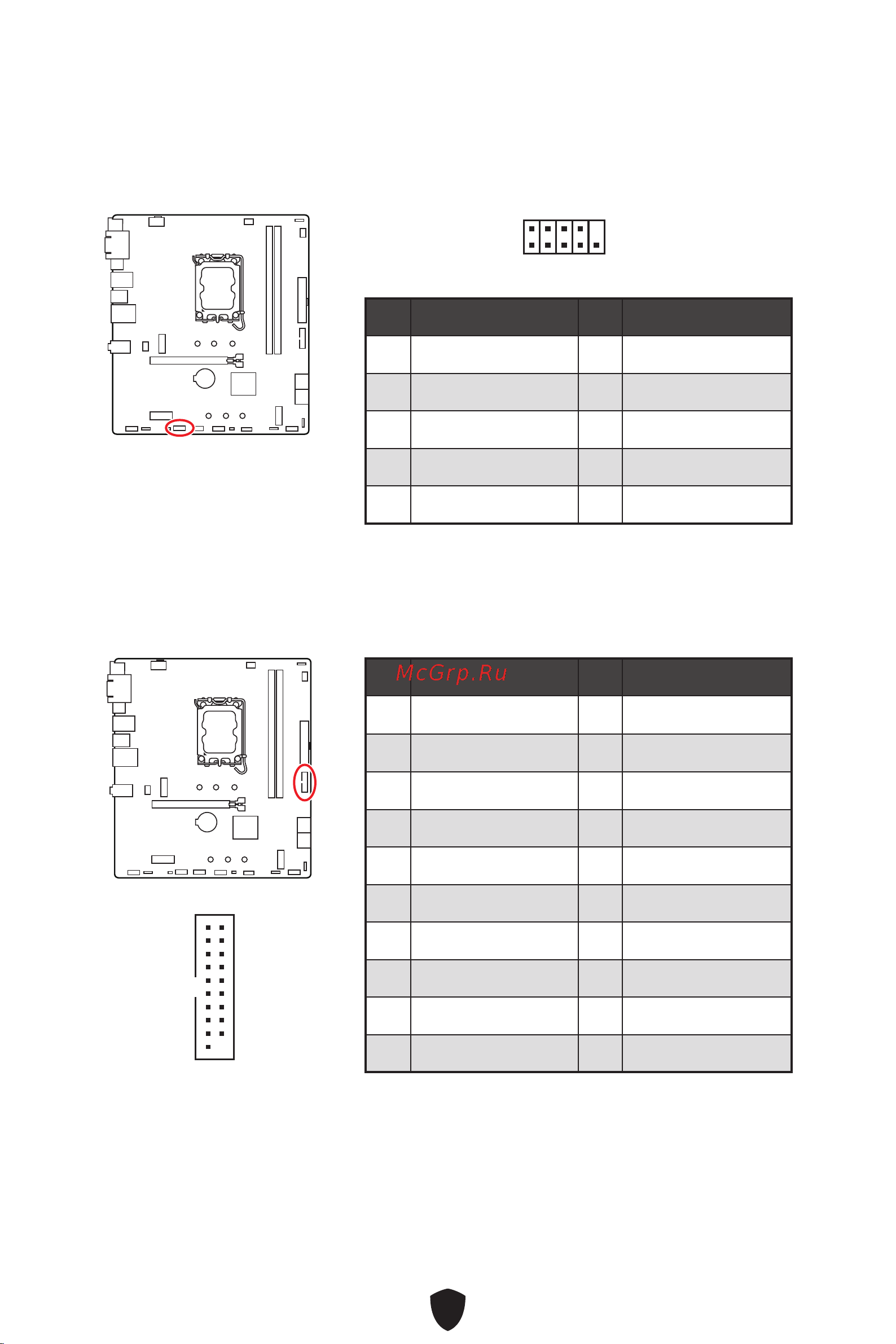

JUSB3: USB 3.2 Gen 1 Connector

This connector allows you to connect USB 3.2 Gen 1 5Gbps ports on the front panel.

⚠

Important

Note that the Power and Ground pins must be connected correctly to avoid possible

damage.

Pin Signal Name Pin Signal Name

1 Power 2 USB3_RX_DN

3 USB3_RX_DP 4 Ground

5 USB3_TX_C_DN 6 USB3_TX_C_DP

7 Ground 8 USB2.0-

9 USB2.0+ 10 Ground

11 USB2.0+ 12 USB2.0-

13 Ground 14 USB3_TX_C_DP

15 USB3_TX_C_DN 16 Ground

17 USB3_RX_DP 18 USB3_RX_DN

19 Power 20 No Pin

10 11

JCOM1: Serial Port Connector

This connector allows you to connect the optional serial port with bracket.

2 10

Pin Signal Name Pin Signal Name

1 DCD 2 SIN

3 SOUT 4 DTR

5 Ground 6 DSR

7 RTS 8 CTS

9 RI 10 No Pin
