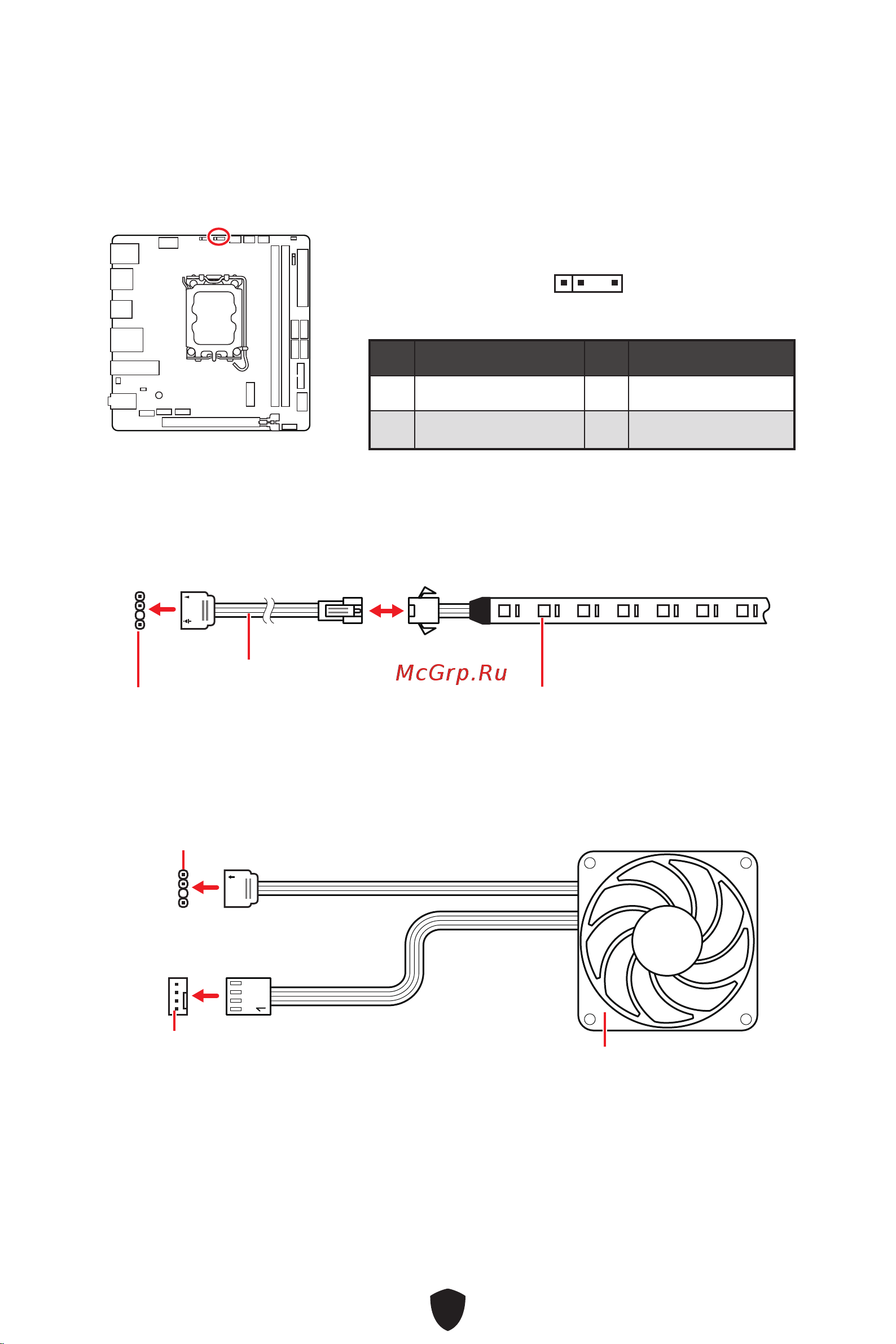

JARGB_V2_1: A-RAINBOW V2 (ARGB Gen2) LED connector

The JARGB_V2 connector allows you to connect the ARGB Gen2 and the ARGB-based

LED strips. The JARGB_V2 connector supports up to 240 individually addressable RGB

LEDs with maximum power rating of 3A (5V).

Pin Signal Name Pin Signal Name

1 +5V 2 Data

3 No Pin 4 Ground

+5V

JARGB_V2 connector

System Fan connector

JARGB_V2 extension cable

ARGB/ ARGB Gen2 LED strip

Addressable RGB LED Strip Connection

Addressable RGB LED Fan Connection

ARGB/ ARGB Gen2 LED Fan
