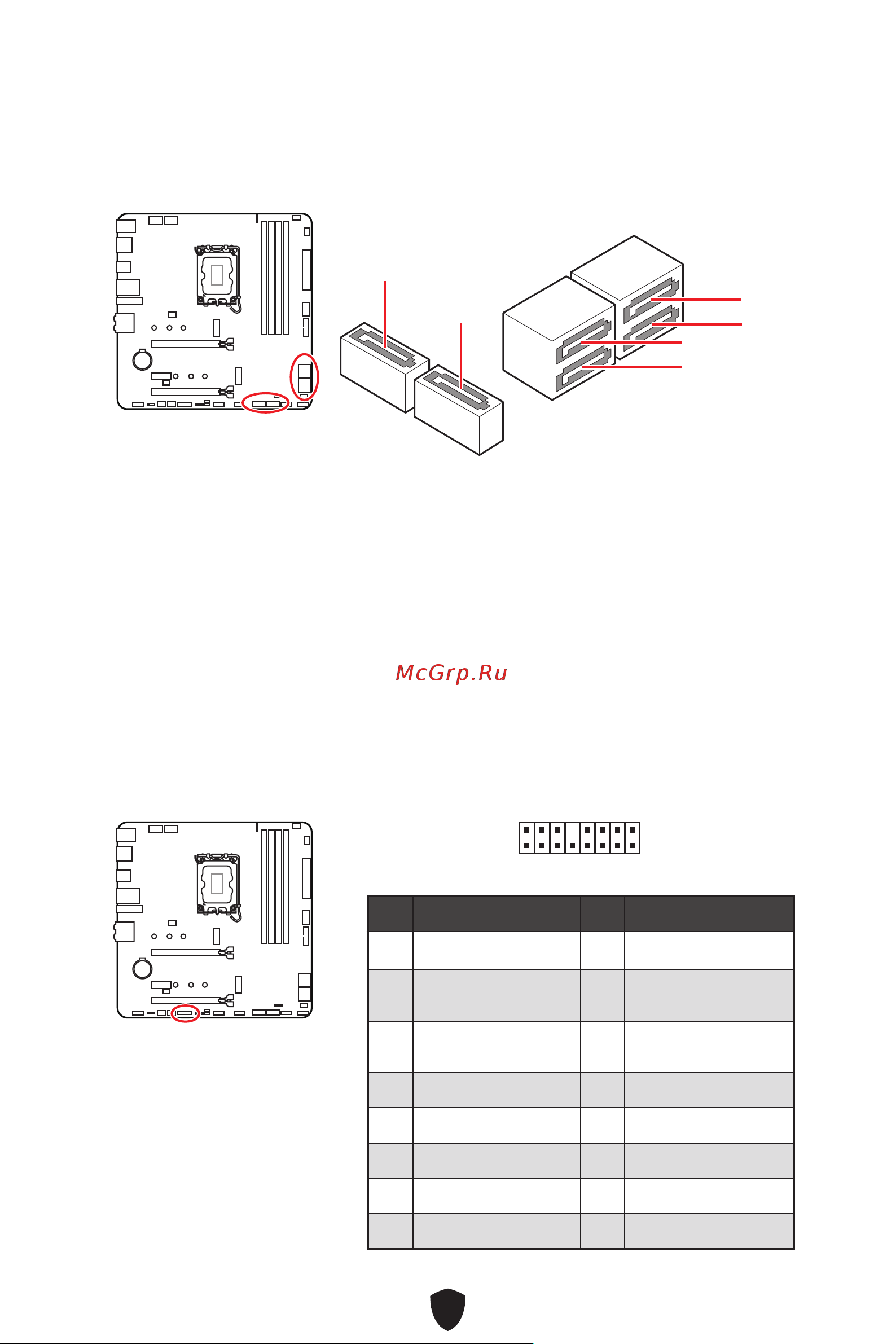

SATA5~8 & SATA_A1~A2: SATA 6Gb/s Connectors

These connectors are SATA 6Gb/s interface ports. Each connector can connect to one

SATA device.

SATA_A2*

SATA5

SATA_A1*

SATA6

⚠

Important

∙

Please do not fold the SATA cable at a 90-degree angle. Data loss may result during

transmission otherwise.

∙

SATA cables have identical plugs on either sides of the cable. However, it is

recommended that the flat connector be connected to the motherboard for space

saving purposes.

SATA7

SATA8

JTBT1: Thunderbolt Add-on Card Connector

This connector allows you to connect the add-on Thunderbolt I/O card.

2 16

Pin Signal Name Pin Signal Name

1 TBT_FORCE_PWR 2 TBT_S0IX_ENTRY_REQ

TBT_CIO_PLUG_

EVENT#

4 TBT_S0IX_ENTRY_ACK

5 SLP_S3#_TBT 6

TBT_PSON_

OVERRIDE_N

7 SLP_S5#_TBT 8 No Pin

9 Ground 10 SMBCLK_VSB

11 DG_PEWAKE# 12 SMBDATA_VSB

13 TBT_RTD3_PWR_EN 14 Ground

15 TBT_CARD_DET_R# 16 PD_IRQ#

* SATA_A1~A2 are for MAG B760M

MORTAR MAX WIFI DDR4 only.
