Body Mounting

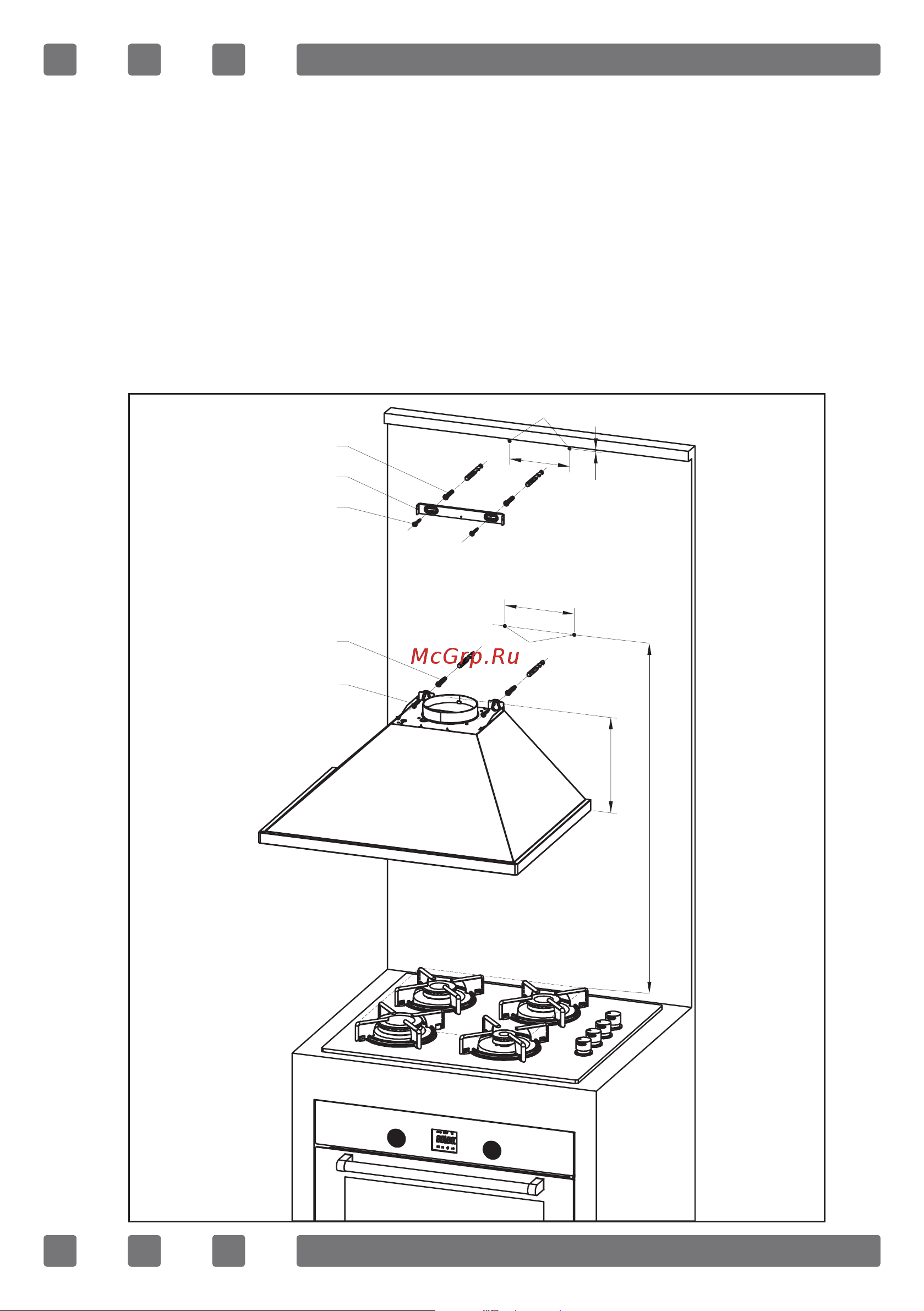

Drill the product from points A with a Ø8 drill bit and from points B with

a Ø6 drill bit as per the dimensions given below. Tap Ø8 and Ø6 dowels.

From the points A, perform installation to the body with a Ø5 x 50 mm

screw; and from points B, perform installation to the inner ue connection

plate with a Ø3.9 x 30 mm screw.

Note: The dimensions provided above are determined by considering

the distance between the lower contact point of the cooking pot and the

bottom of the hood is 650 mm

Min. 870

160

220

138
