Chaffoteaux MIRA SYSTEM 24 CF [9/20] Operating continued
![Chaffoteaux MIRA SYSTEM 24 CF [9/20] Operating continued](/views2/1115103/page9/bg9.png)
9
P1
P2
ON OFF
A1
A2
A3
A4
B1
B2
B3
B4
P3
Pompe Grande VitessePompe Petite Vitesse
Anticycle 3 min
Fonctionnement Modulant
Tempo Débistat Sanitaire 1,5 sec Tempo Débistat Sanitaire 0 sec
Célectic
OFF
ON
Anticycle 30 s
Fonctionnement TOUT OU RIEN
Consigne chauffage à 40 C
Consigne chauffage variable de 35 à 85 C
Post circulation 30 s Post circulation 3 mn

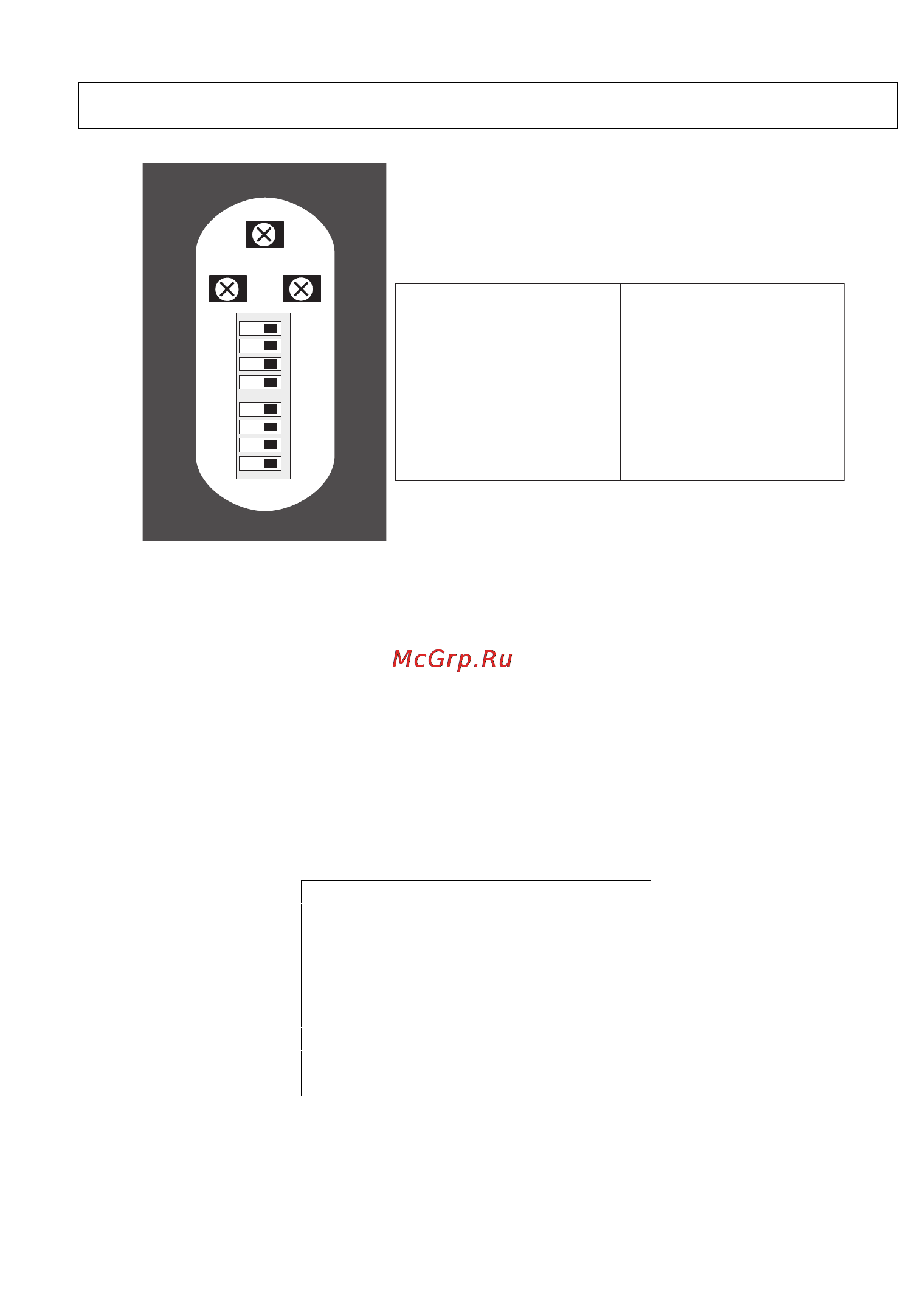

Factory settings
Fig.13
Burner gas output setting
The values shown in the tables below are given for information purposes for a nominal gas distribution pressure, to allow any
adjustments to the boiler heating output according to the requirements of the appliance.
They cannot be used to calculate the precise regulated output of the water heater.
Adaptive speed pump
ON
OFF
ON/OFF operation
Heating setting to 40 °C
Modulating Operation
Adjustable heating setting 35 to 85 °C
30 s anticycle 3 min anticycle
7. Operating (continued)
Post-circulation 30 s. Post-circulation 3 min.
24 kW CF
Gas G20 PROPANE BUTANE
Working P.
(kW)
Pressure
plate
(mm CE)
10 16 49 38
12 38 102 78
16 65 171 131
20 96 256 195
24 133 355 270
TIC 3 min. TIC 30 s.
High speed pump
