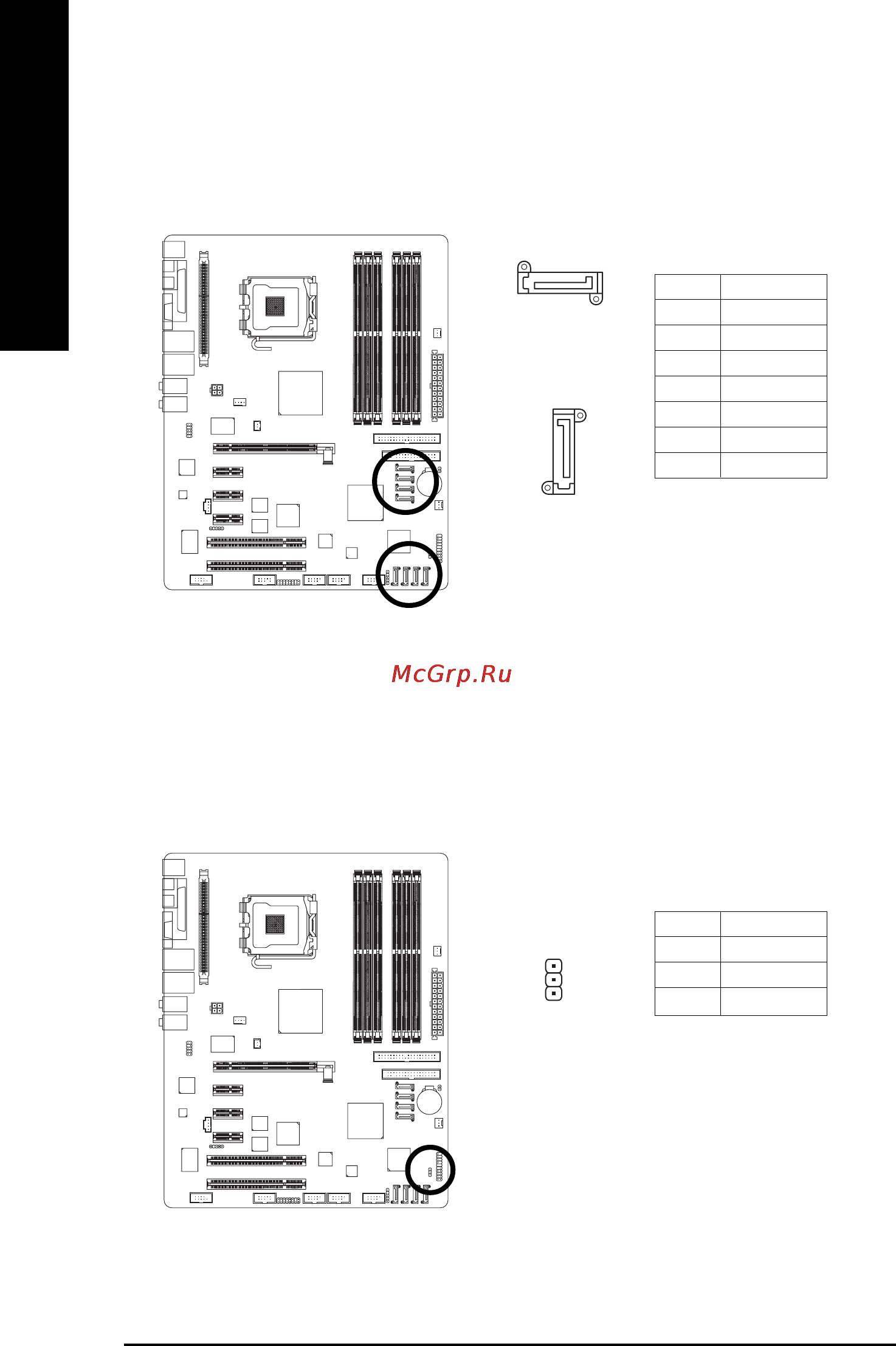

GA-8GNXP-D Motherboard - 22 -
English
9) SATA1_SB/SATA2_SB/SATA3_SB/SATA4_SB (Serial ATA Connector, Controlled by ICH6R)
10) SATA1_SII/SATA2_SII/SATA3_SII/SATA4_SII (Serial ATA Connector, Controlled by SiI3114)
Serial ATA can provide 150MB/s transfer rate. Please refer to the BIOS setting for the Serial ATA
and install the proper driver in order to work properly.
11) PWR_LED
PWR_LED is connect with the system power indicator to indicate whether the system is on/off. It will
blink when the system enters suspend mode.
Pin No. Definition
1 GND
2 TXP
3 TXN
4 GND
5 RXN
6 RXP
7 GND
Pin No. Definition
1 MPD+
2 MPD-
3 MPD-
1
7
1
7
1
SATA_SB
(Controlled by ICH6R)
SATA_SII
(Controlled by SiI3114)
