- 7 -

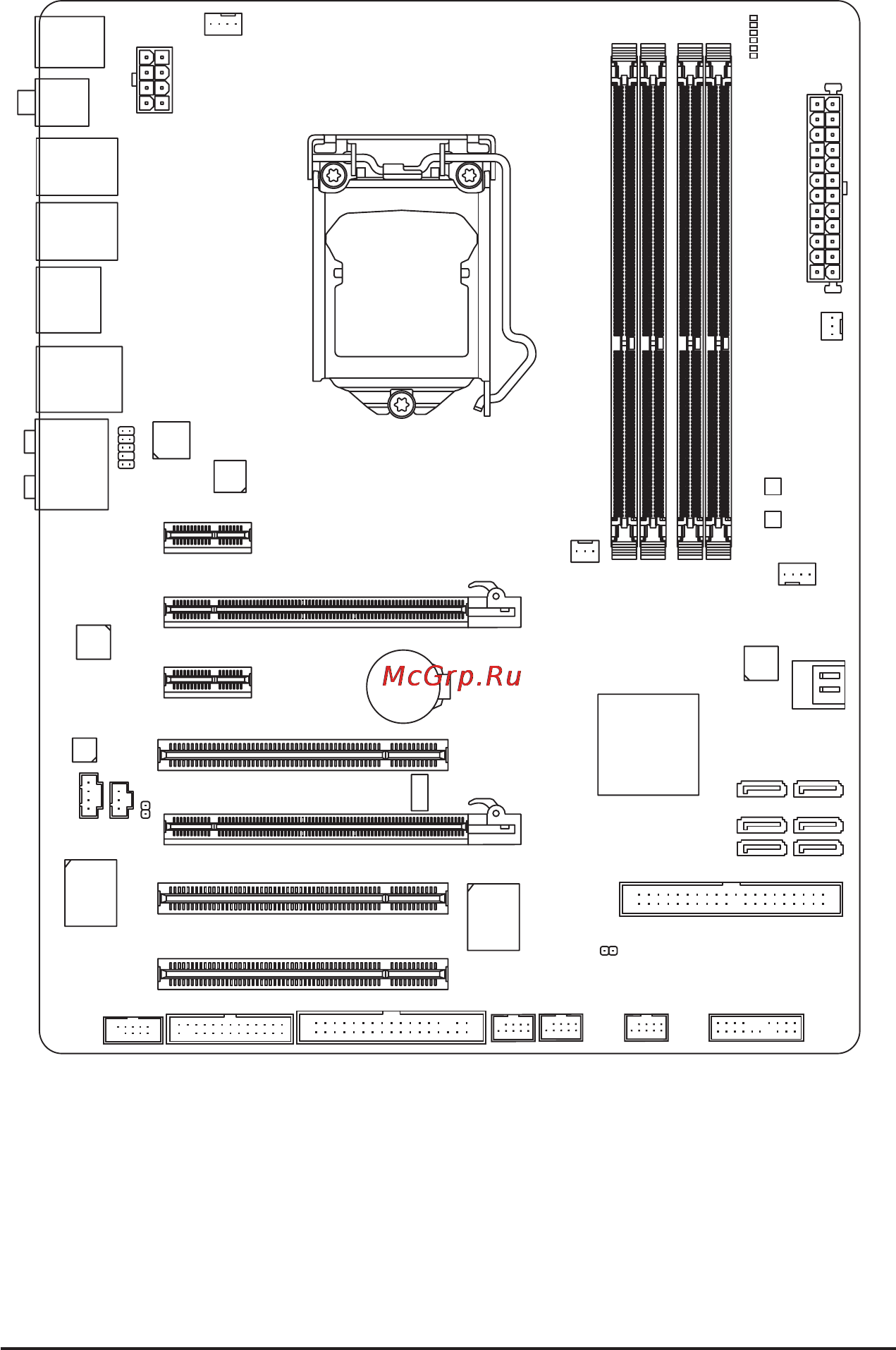

GA-P55A-UD3P/ GA-P55A-UD3R Motherboard Layout
(Note 1) Due to a hardware limitation, the PCIEX1_1 slot can only accommodate a shorter PCI Express x1
expansion card. For a longer expansion card, use other expansion slots.
(Note 2) This feature is optional due to different regional policy.
j
Only for GA-P55A-UD3P.
CPU_FAN
ATX_12V_2X4
ATX
CD_IN
F_AUDIO
AUDIO
B_BIOS
PCIEX4
PCIEX1_1
(Note 1)
IDE
SPDIF_I
DDR3_1
DDR3_3
DDR3_2
DDR3_4
BAT
F_PANELF_USB3
COMA
Intel
®
P55
LPT
SATA2_1
SATA2_3
SATA2_5
GSATA3_6
SATA2_0
SATA2_2
SATA2_4
GSATA3_7
PCI2
PCI3
CLR_CMOS
CODEC
SYS_FAN1
M_BIOS
PCIEX1_2
PCIEX16
SPDIF_O
F_USB1
SYS_FAN2
Marvell 9128
LGA1156
GA-P55A-UD3P
GA-P55A-UD3R
PWR_FAN
R_SPDIF
USB_ESATA_1
R_USB
USB_ESATA_2
PHASE LED
USB30_LAN
PCI1
FDD
TPM IC
(Note 2)
j
Realtek
RTL8111E
KB_MS_USB
F_USB2
JMicron
JMB362
NEC
D720200F1
iTE
IT8720
iTE
IT8213
