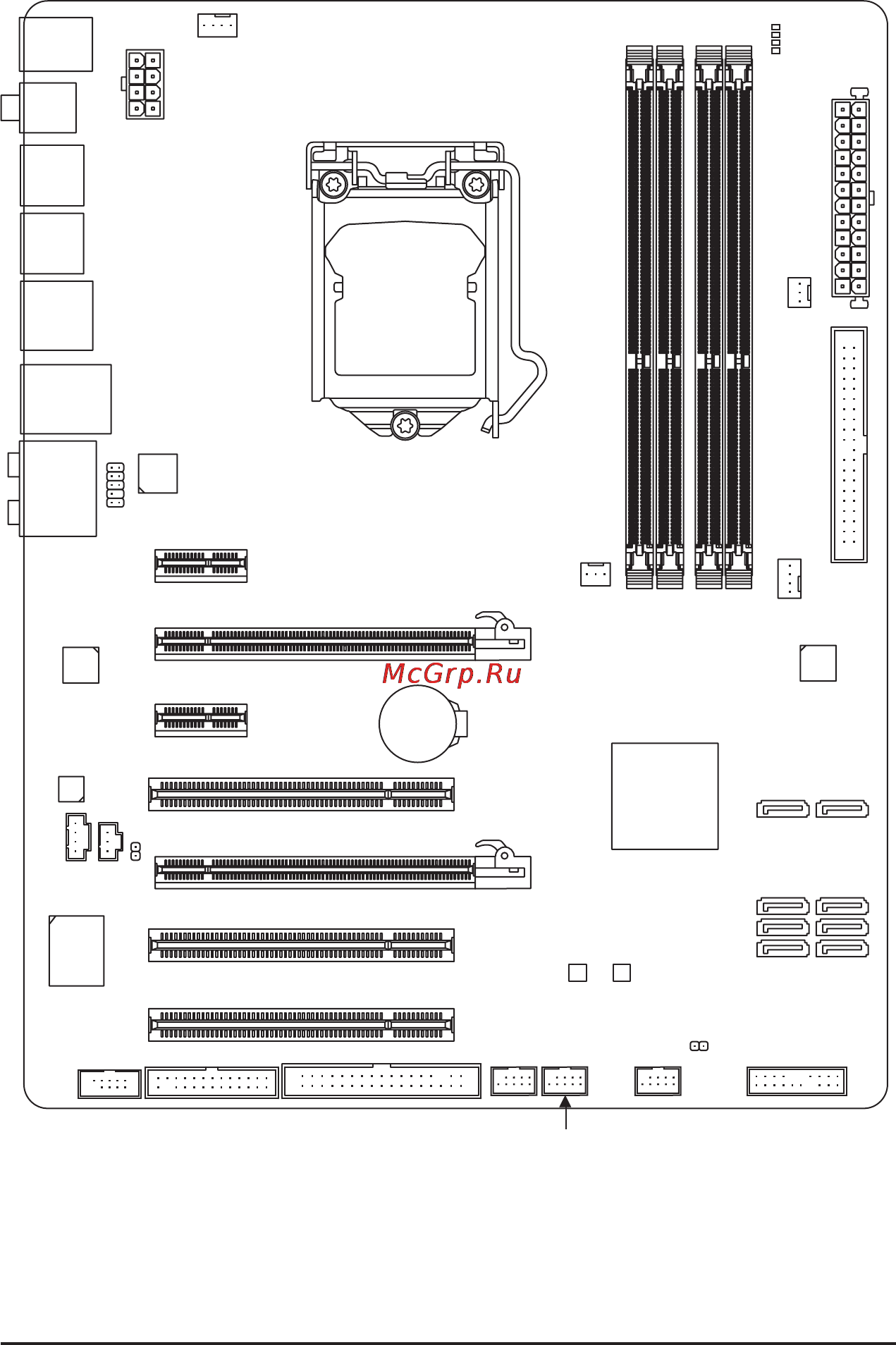

GA-P55-USB3 Motherboard Layout
(Note) Due to a hardware limitation, the PCIEX1_1 slot can only accommodate a shorter PCI Express x1
expansion card. For a longer expansion card, use other expansion slots.
CPU_FAN
ATX_12V_2X4
ATX
CD_IN
F_AUDIO
AUDIO
B_BIOS
PCIEX4_X1
PCIEX1_1
(Note)
IDE
SPDIF_I
DDR3_1
DDR3_3
DDR3_2
DDR3_4
BAT
Intel
®
P55/H55
SATA2_1
SATA2_3
SATA2_5
GSATA2_6
SATA2_0
SATA2_2
SATA2_4
GSATA2_7
PCI2
PCI3
CODEC
SYS_FAN1
M_BIOS
PCIEX1_2
PCIEX16
SPDIF_O
SYS_FAN2
GIGABYTE
SATA2
LGA1156
GA-P55-USB3
PWR_FAN
R_SPDIF
R_USB_1
R_USB30
R_USB_2
PHASE LED
USB_LAN
PCI1
j
Only for P55 Chipset.
KB_MS_USB
F_PANEL
F_USB2
COMA
LPT
CLR_CMOS
F_USB1
FDD
F_USB3
j
iTE
IT8720
Realtek
RTL8111E
NEC
D720200F1
