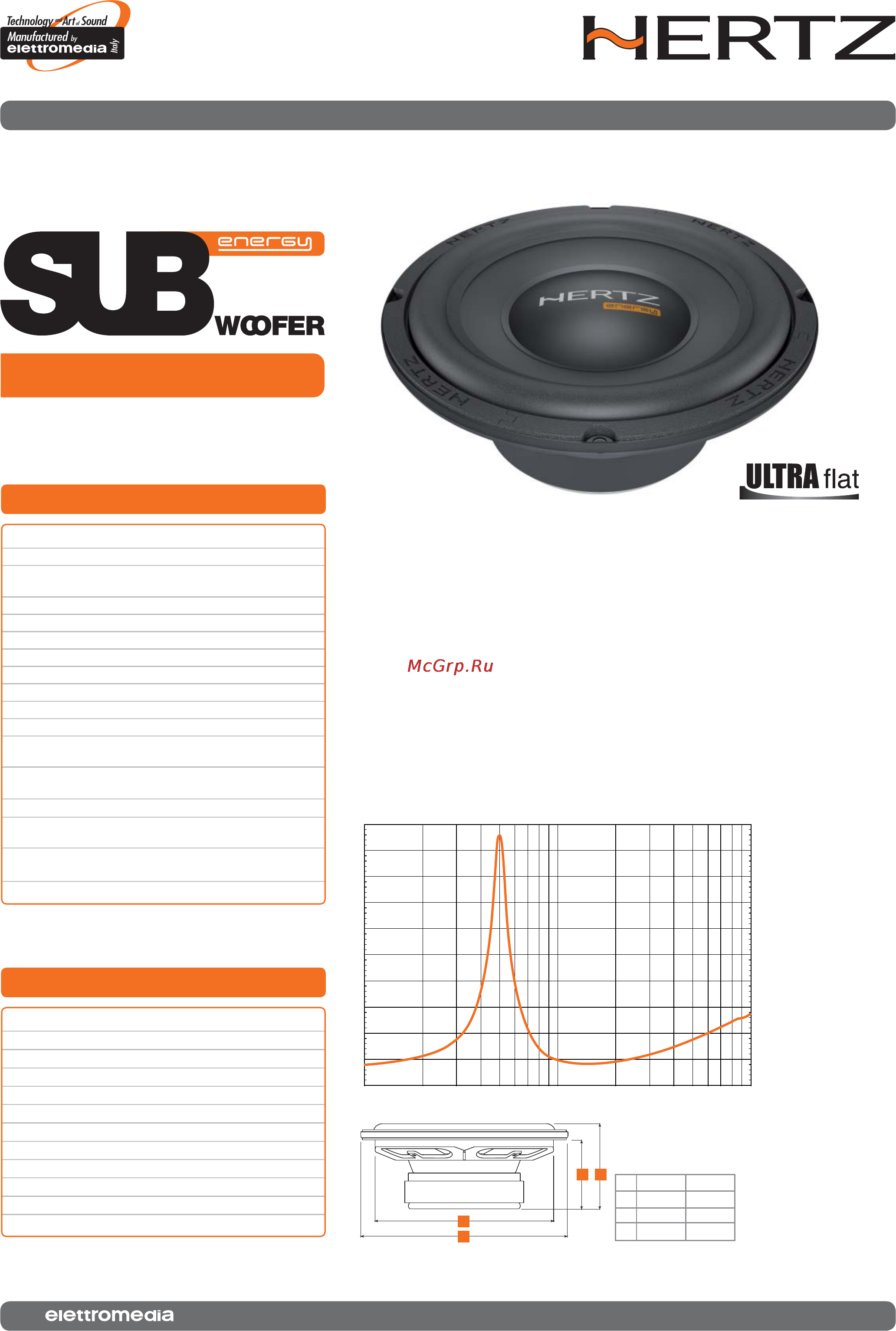

ES F20.5 400 W
Technical Specifi cations
Electro-Acoustic Parameters
Component Subwoofer
Size mm (inch) 200 (8”)
Power handling W peak 400
cont. program 200
Impedance Ω 4
Frequency response Hz 32 ÷ 400
Sensitivity dB/SPL 93
Outer Diameter mm (inch) 209 (8”
1/4
)
Mounting Diameter mm (inch) 180 (7”
1/16
)
Total Depth mm (inch) 86 (3”
3/8
)
Mounting Depth mm (inch) 70 (2”
3/4
)
Magnet size mm (inch) 120 (4”
3/4
)
Total Driver
Displacement l (ft³) 0,4 (0,018)
Weight of one
component kg (lb) 2,4 (5,28)
Voice Coil Diameter mm (inch) 38 (1”
1/2
)
Magnet High density
fl ux ferrite
Cone Water repellent
pressed paper
*X-mech mm (inch) 12 (1/2”)
* Xmech: maximum mechanic excursion; indicates the
maximum linear motion range of the speaker in both directions.
D mm 166
Xmax mm 5
Re Ohm 2,9
Fs Hz 54
Vas l 11,8
Mms g 49,2
Cms mm/N 0,18
BL T m 10,6
Qts 0,40
Qes 0,42
Qms 6,88
Spl dB 93
1k50020010050201010 1kHz
50.0
Ohm
40.0
30.0
20.0
10.0
0.0
1. Ultra Flat design, for maximum installation fl exibility.
2. Massive motor assembly, for perfect control under high power, high excursion
conditions.
3. Water-repellent pressed paper cone.
4. Copper voice coil, wound on aluminium former, for startling thermal and
mechanical capacity.
5. Back Vented Spider support, for perfect symmetry under high excursion and
thermal dissipation.
6. Wide-wave, resin-bonded fi ber spider for mechanical reliability and consistent
parameters.
7. High current, tin-plated terminals.
8. Silver plated lead wires for maximum reliability and conductivity.
9. Basket and motor coupled and damped through special epoxy glue.
10. High thermal dissipation and magnetic permeability plates, providing constant,
even fl ux.
A 209 mm 8”
1/4
B 180 mm 7”
1/16
C 86 mm 3”
3/8
D 70 mm 2”
3/4
A
B
CD
