REM OUT or

ELECTRIC ANTENNA

GND

+BATT

HP 2

HP 4

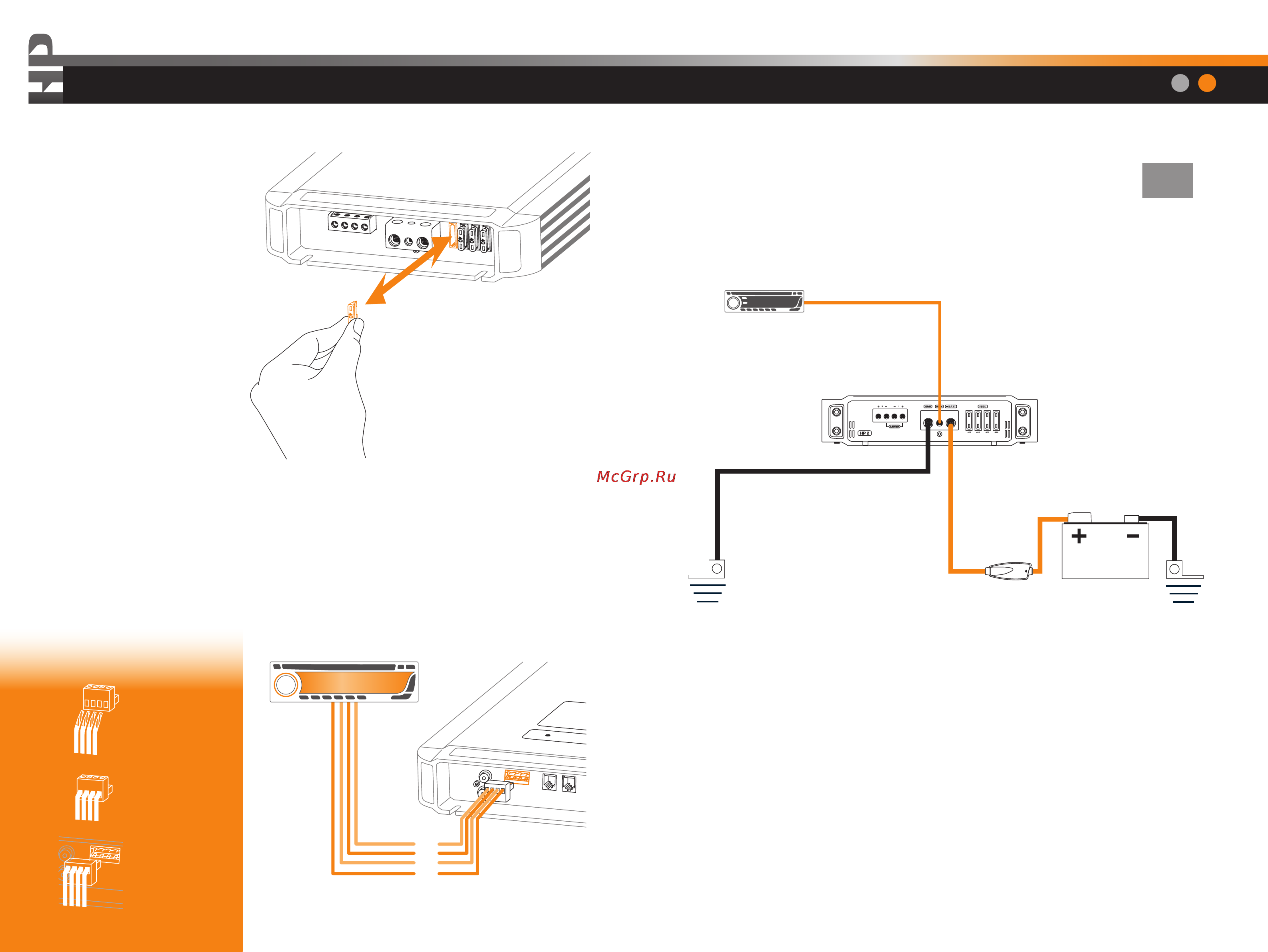

Power Terminals

HP 2: 4 x 40 A fuses

HP 4: 4 x 30 A fuses

How to Replace

the fuses

•Remove the fuses from the power

supply panel, they are located on

the right side of the power supply

terminal block.

•Be sure that the value of the new

fuses is identical to the fuses

supplied, then insert them into their

seats ensuring to carry out a perfect

connection to avoid false contacts

or voltage drops along the power

supply line.

High Level Input (SPEAKER IN)

For greater convenience you can connect the cables to the specific connector before inserting it

into the inputs panel. Refer to the following instructions. Carry out this operation with amplifier

and head unit off.

1_Peel the cables

2_Fix the cables

into the connector

3_Insert the

connector

L+

L-

R+

R-

Italiano | English

58 59
