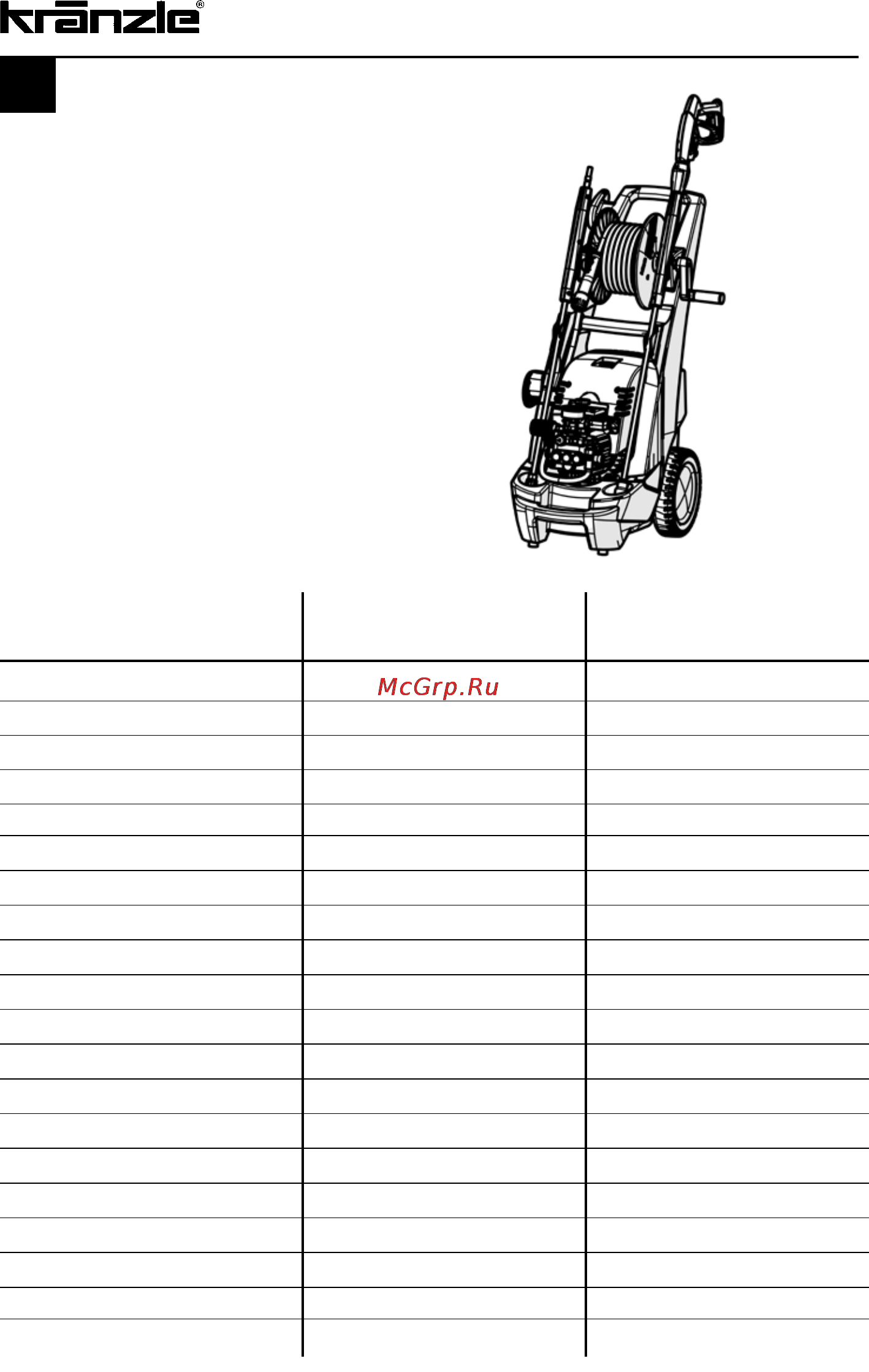

Kranzle Bully 980 TS [4/44] Technical data
![Kranzle Bully 980 TS [4/44] Technical data](/views2/1119831/page4/bg4.png)
4
Operating press. continuously adj.
3 - 18 MPa (30-180bar) 3 - 16 MPa (30 - 160 bar)
Nozzle size 055 075
Permissible overpressure 16 MPa 19,5 MPa
Water output at
1.400 r.p.m. 16 l/min
at
1.400 r.p.m. 19 l/min
max. water intake pressure 1.0 MPa 1.0 MPa
Inlet water temperature max. 60 °C max. 60 °C
Suction height 2.5 m 2.5 m
Hose drum yes yes
Steel-weave high-pressure hose
15 m 15 m
Total stop system yes yes
Connected load
3~ 400 V / 50 Hz, 11.5 A 3~ 400 V / 50 Hz, 11.5 A
Power input P 1 - 7.0 kW P 1 - 7.0 kW
Power output P 2 - 5.0 kW P 2 - 5.0 kW
Weight 68 kg 68 kg
Dim. incl. pulling handle in mm 730 x 425 x 970 730 x 425 x 970
Sound level acc. to DIN 45 635 89 dB (A) 89 dB (A)
Sound level with Dirtkiller
91 dB (A) 91 dB (A)
Acoustic power L
WA
91 dB (A) 91 dB (A)
Recoil at lance approx. 25 N approx. 25 N
Vibration at lance
2.2 m/s
2
2.2 m/s
2
Kränzle Kränzle
bully 980 TS T bully 1180 TS T
Technical data
Permissible tolerance for figures ± 5 % acc. to VDMA uniform sheet 24411
