Installation/Connections

 Choose the mounting location where the unit will not interfere with the normal driving function of the

driver.

 Before finally installing the unit, connect the wiring and make sure that the unit works properly.

 Consult with your nearest dealer if installation requires the drilling of holes or other modifications of the

vehicle.

 Install the unit where it does not get in the driver's way and cannot injure the passenger if there is a

sudden stop, like an emergency stop.

 If installation angle exceeds 30° from horizontal, the unit may not perform properly.

 Avoid installing the unit where it would be subject to high temperature, such as from direct sunlight, or

from hot air, from the heater, or where it would be subject to dust, dirt or excessive vibration.

Din Front/Rear-Mount

This unit can be properly installed either from 'Front' (conventional DIN Front-mount) or 'Rear' (DIN Rear-

mount installation, utilizing threaded screw Holes at the sides of the unit chassis). For details, refer to the

following illustrated installation methods.

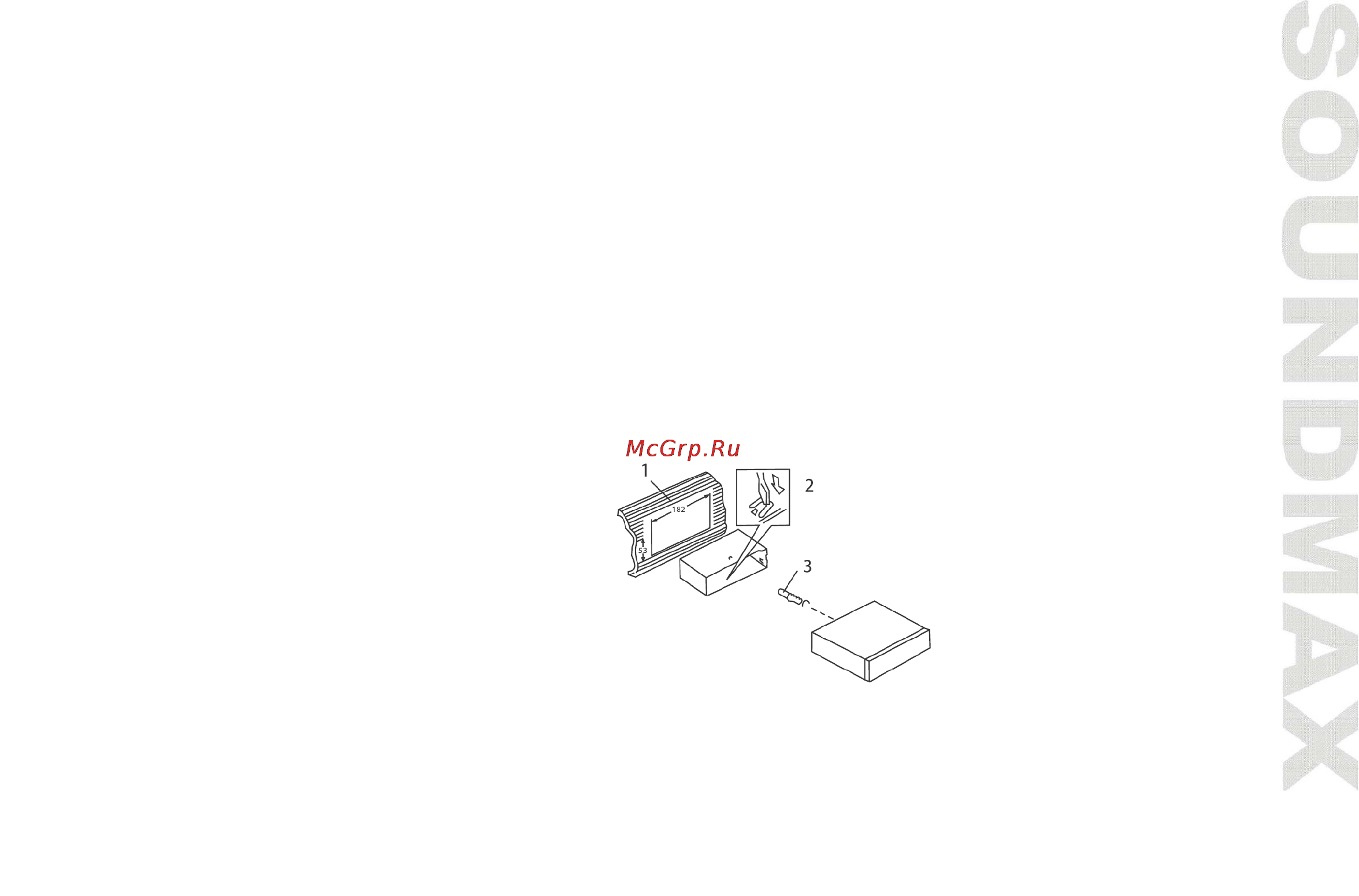

DIN FRONT-MOUNT (Method A)

1. Car dashboard

2. Sleeve

3. Screw

4. Nut

5. Spring washer

6. Screw

7. Metal strap

8. Flat washer

1. Install the sleeve into the dashboard; ensure it is installed with the correct side and there are no

obstacles (wires, dashboard elements, etc) for the unit installation.
