fig. 39.1

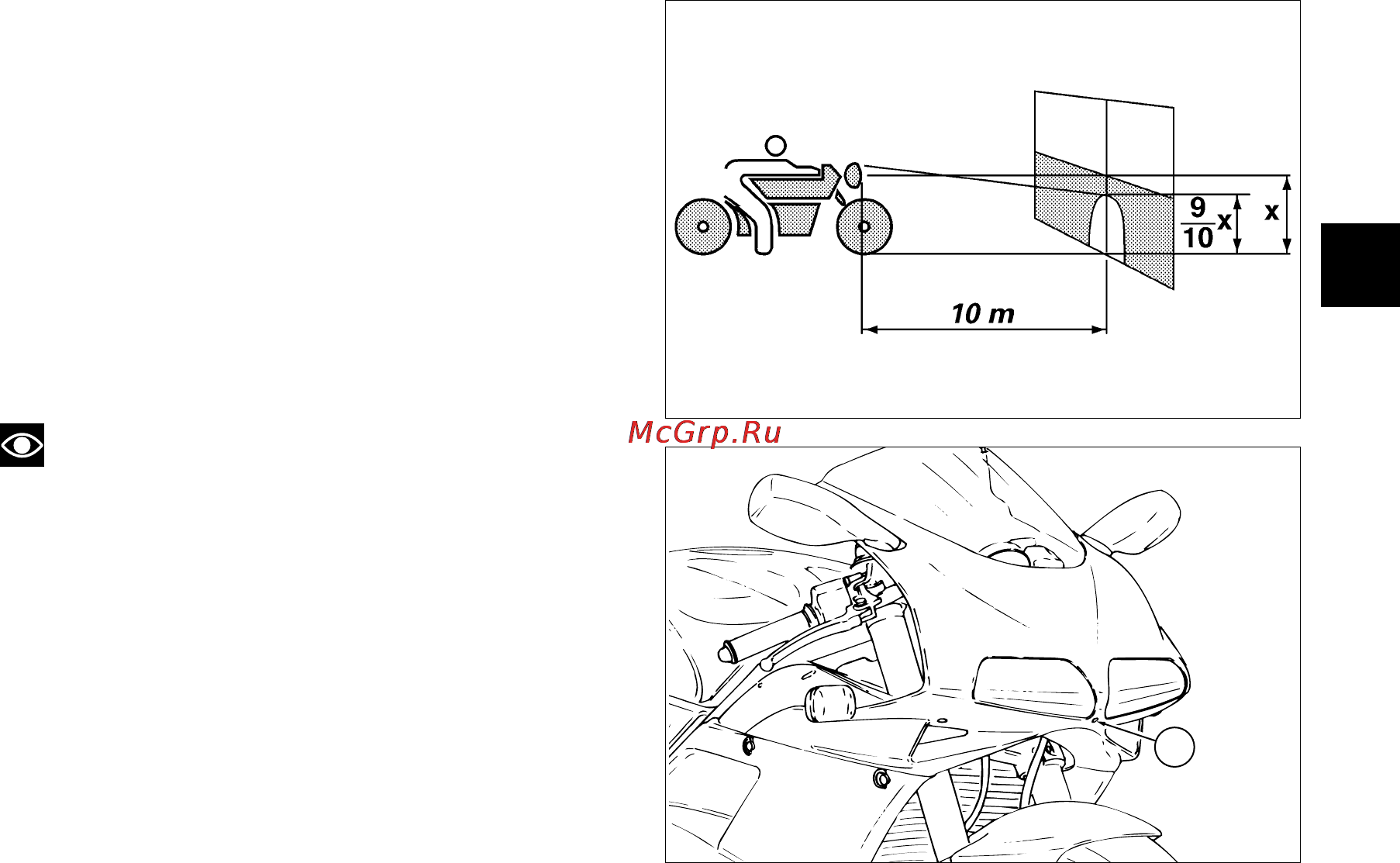

Beam setting (fig. 39.1)

When checking the beam setting, put the motorcycle

upright. Tyres should be inflated at the correct pressure

and one person should be sitting astride the motorcycle,

keeping it at right angles to its longitudinal axis. Place the

motorcycle opposite a wall or a screen, 10 meters (394

in.) apart from it, then draw a horizontal line dictated by

headlamp center and a vertical one in line with the

longitudinal axis of motorcycle.

If possible, perform this check in dim light.

Switch on the low beam. The height of the light spot

(measured at the upper limit between dark and lighted-up

area) should not exceed 9/10th of the height from ground

of headlamp center.

Note

The procedure described here is in compliance with

the “Italian Standard” establishing the maximum height

of the light beam. Owners in other countries will adapt

said procedure to the provisions in force in their

countries.

The height of the light beam can be corrected using the

screws (1, fig. 39.2), after removing the protection cover.

Turn the screw clockwise to lower the beam, turn

anticlockwise to lift.

fig. 39.2
