• Diagrams 11 720 engine 1
• Diagrams 11_3719 short engine 2
• Diagrams 11_3568 underride portection 3
• Diagrams 11_3569 engine housing 4
• Diagrams 11 594 engine ventilation 5
• Diagrams 11 592 front cover timing chain cover 6
• Diagrams 11_3595 cylinder 7
• Diagrams 11 813 piston single components 8
• Diagrams 11_3584 cylinder head cover 9
• Diagrams 11 591 cylinder head mounting parts 10
• Diagrams 11_3669 crankshaft attaching parts 11
• Diagrams 11_2806 connecting rod connecting rod bearing 12
• Diagrams 11 676 camshaft 13
• Diagrams 11 804 camshaft supporting bracket 14
• Diagrams 11 672 timing gear intake valve exhaust valve 15
• Diagrams 11 798 rocker arm shaft valve lifter 16
• Diagrams 11_3670 timing chain chain tensioner slide rail 17
• Diagrams 11 797 timing valve train timing chain camshaft 18
• Diagrams 11 795 lubrication system oil filter 19
• Diagrams 11 796 single parts f oil pump 20
• Diagrams 11_3596 compensating shaft 21
• Diagrams 12 259 ignition system 22
• Diagrams 12 257 generator 23
• Diagrams 12 017 starter 24
• Diagrams 12 258 starter cover mounting 25
• Diagrams intake manifold 26
• Diagrams 13_1116 throttle housing assy 27
• Diagrams 13_1117 bms k control unit 28
• Diagrams 13_1118 air cleaner housing 29
• Diagrams 16 548 fuel tank 30
• Diagrams 16 574 filler cap 31
• Diagrams 16 579 fuel pump and fuel level sensor 32
• Diagrams 16 581 sucking jet pump with lines 33
• Diagrams 16 582 activated carbon container fuel ventilat 34
• Diagrams 16 482 fuel supply quick coupling 35
• Diagrams 16 450 fuel distributor pressure regulator 36
• Diagrams 16 573 tank top bag 37
• 14 15 3 38
• Diagrams 17_0313 oil cooler oil cooling pipe 38
• Diagrams 18 529 exhaust manifold with catalyst 39
• Diagrams 18 530 muffler system 40
• Diagrams 21_0195 clutch mounting parts 41
• Diagrams 21_0196 clutch control 42
• Diagrams 23 963 manual transmission 43
• Diagrams 23_0965 6 speed transmission shift components 44
• Diagrams 23_0964 shift lever 45
• Diagrams 26 118 drive shaft 46
• Diagrams 31_0684 fork leg 47
• Diagrams 31 0685 fork slider lower fork bridge 48
• Diagrams 31_0686 telescope fork 49
• Diagrams 31 529 upper fork bridge 50
• Diagrams 31_0687 trailing arm 51
• Diagrams 31_0688 front spring strut 52
• Diagrams 32 248 handlebar 53
• Diagrams 32 502 complete left handle unit 54
• Diagrams 32 523 handle unit left single parts 55
• Diagrams 32 523 handle unit left single parts 56
• Diagrams 32_1503 complete right handle unit 57
• Diagrams 32 524 handle unit right single parts 58
• Diagrams 32_1505 heated handlebar grips 59
• Diagrams 32 504 bowden cable cable distributor 60
• Diagrams 32 490 hand protector 61
• Diagrams 33 224 final drive 62
• Diagrams 33 265 final drive parts 63
• Diagrams 33 265 final drive parts 64
• Diagrams 33 266 differential gear set 65
• Diagrams 33 226 rear trailing arm 66
• Diagrams 33 225 tension struts with mounting 67
• Diagrams 33 1214 rear spring strut 68
• Diagrams 34 392 front wheel brake integral abs 69
• Diagrams 34_1406 brake pipe front integral abs 70
• Diagrams 34 393 rear wheel brake 71
• Diagrams 34 408 brake master cylinder rear integral abs 72
• Diagrams 34 407 fluid container rear 73
• Diagrams 34 422 brake pedal 74
• Diagrams 34 409 pressure modulator integral abs 75
• Diagrams 36_ü412 spoke wheel 76
• Diagrams 36_0413 spoke wheel rim spoke 77
• Diagrams 36 780 wheel hub mounting parts front 78
• Diagrams 36 779 wheel hub rear 79
• Diagrams 36 781 cast rim front 80
• Diagrams 36 782 cast rim rear 81
• Diagrams 46 829 front frame 82
• Diagrams 46 828 rear frame 83
• Diagrams 46 843 center stand 84
• Diagrams 46 844 side stand 85
• Diagrams 46 866 luggage support 86
• Diagrams 46 867 luggage grid 87
• Diagrams 46 864 set case holder 88
• Diagrams 46 862 case variable 89
• Diagrams 46 868 case variable single parts 90
• Diagrams 46 868 case variable single parts 91
• Diagrams 46 851 bag aluminum case top case 92
• Diagrams 46 863 top case 93
• Diagrams 46 869 retrofit kit top case bracket 94
• Diagrams 46 931 top case 95
• Diagrams 46 838 upper mudguard 96
• Diagrams 46 839 lower mudguard 97
• Diagrams 46 846 rear mudguard 98
• Diagrams 46 840 mudguard rear 99
• Diagrams 46 856 fairing bracket 100
• Diagrams 46 841 trim panel parts mounting parts 101
• Diagrams 46 841 trim panel parts mounting parts 102
• Diagrams 46 842 windshield 103
• Diagrams 46 855 engine suspension 104
• Diagrams 46 854 front and rear footpeg 105
• Diagrams 46 834 engine protection bar set 106
• Diagrams 46 837 left safety bar plastic 107
• Diagrams 51_5350 sticker 108
• Diagrams 51 224 mirror 110
• Diagrams 51 341 ignition switch and mounting parts 111
• Diagrams 51_5340 uniform locking system 112
• Diagrams 51 342 painted parts 947 ozeanblau 113
• Diagrams 51 343 painted parts 950 fels rot 114
• Diagrams 51 344 painted parts 952 wustengelb 115
• Diagrams 52_3104 dualseat 116
• Diagrams 52_3107 dualseat locking mechanism 117
• Diagrams 52_3106 tool box 118
• Diagrams 61 288 cable harness 119
• Diagrams 61_1875 central vehicle electronics 120
• Diagrams 61_1819 combination switch at handlebar 121
• Diagrams 61 882 switch sensors 122
• Diagrams 61 882 switch sensors 123
• Diagrams 61_1816 retrofit kit socket 124
• Diagrams 61_1826 horn 125
• Diagrams 61_1817 battery 126
• Diagrams 61_1346 charging device 127
• Diagrams 62_0466 instrument cluster 128
• Diagrams 62_0469 bracket f instrument cluster 129
• Diagrams 63_0849 headlight 130
• Diagrams 63_0851 turn indicator 131
• Diagrams 63_0851 turn indicator 132
• Diagrams 63_0902 side marker 133
• Diagrams 63_0857 rear light 134
• Diagrams 65 482 accessories bmw navigator ii 135
• Diagrams 65 455 mounting parts bmw navigator ii 136
• Diagrams 65_1510 connect cable for navigation system 137
• Diagrams 65 426 alarm systems 138
• Diagrams 71_0383 car tool 139
• Diagrams 71 ü259 repair package 140
• Diagrams 71_0177 motorcycle tarpaulin 141
• Diagrams 71_0398 tarpaulin 142

Похожие устройства

• Stiga SP 350 Инструкция по эксплуатации
• BMW R1150R ABS (2001) Инструкция по эксплуатации
• Stiga SP 350 Q Инструкция по эксплуатации
• BMW R1150RT ABS (2001) Инструкция по эксплуатации
• Stiga SP 352 Инструкция по эксплуатации
• BMW R1150GS (2000) Инструкция по эксплуатации
• Stiga SP 355 Инструкция по эксплуатации
• BMW R1100S (1999) Инструкция по эксплуатации
• Stiga SP 380 Q Инструкция по эксплуатации
• BMW R1200C (1999) Инструкция по эксплуатации
• Stiga SP 382 Инструкция по эксплуатации
• BMW R850C (1999) Инструкция по эксплуатации
• Stiga SP 400 Инструкция по эксплуатации
• BMW R100R Инструкция по эксплуатации
• Stiga SP 400 Q Инструкция по эксплуатации
• BMW R80GS Инструкция по эксплуатации
• Stiga SP 420 Инструкция по эксплуатации
• BMW K1200RS Инструкция по эксплуатации
• Stiga SP 422 Инструкция по эксплуатации
• Stiga SP 440 Инструкция по эксплуатации

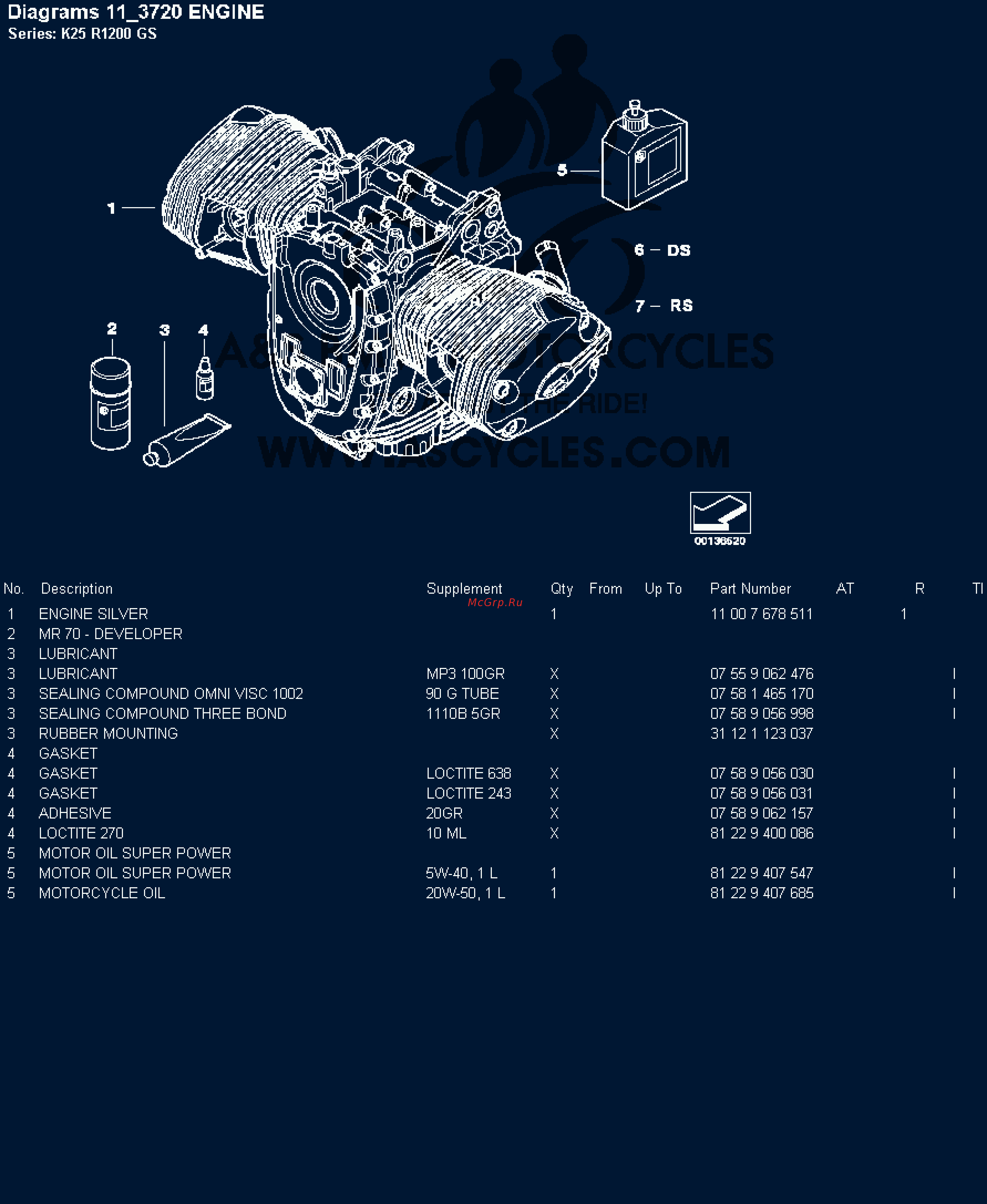

Diagrams 11 3720 ENGINE Series K25 R1200 GS О01ЭВ520 No Description 1 2 3 3 3 3 3 4 4 4 4 4 5 5 5 ENGINE SILVER MR 70 DEVELOPER LUBRICANT LUBRICANT SEALING COMPOUND OMNI VISC 1002 SEALING COMPOUND THREE BOND RUBBER MOUNTING GASKET GASKET GASKET ADHESIVE LOCTITE 270 MOTOR OIL SUPER POWER MOTOR OIL SUPER POWER MOTORCYCLE OIL Supplement Qty From Up To Part Number 1 11 00 7 678 511 MP3 100GR 90 G TUBE 1110B5GR X X X X 07 55 9 062 476 07 58 1 465 170 07 58 9 056 998 31 12 1 123 037 LOCTITE 638 LOCTITE 243 20GR 10 ML X X X X 07 58 9 056 030 07 58 9 056 031 07 58 9 062 157 81 22 9 400 086 5W 40 1 L 1 1 81 22 9 407 547 81 22 9 407 685 20W 50 1 L AT R 1
