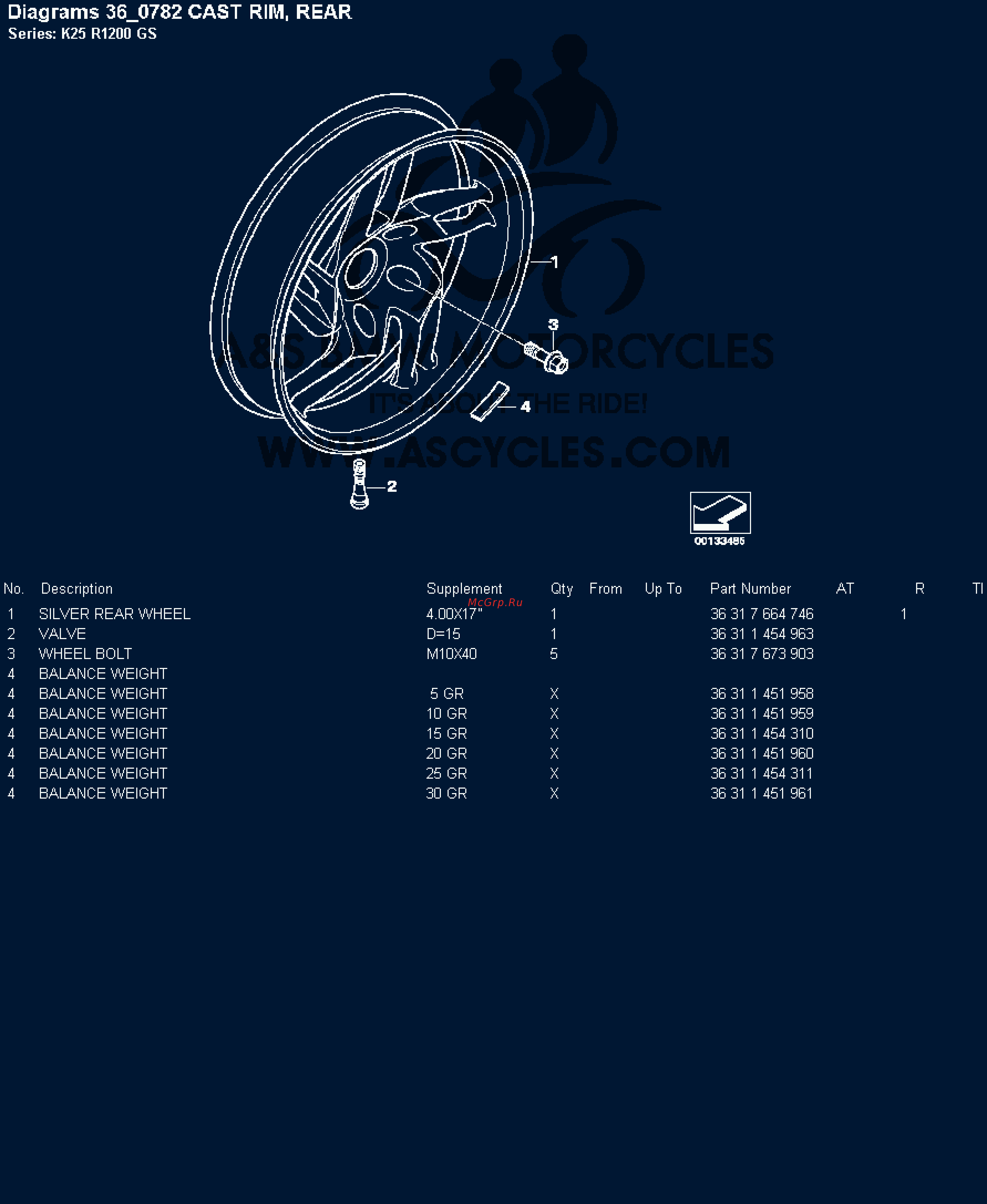

Diagrams 36 0782 CAST RIM REAR Series K25 R1200 GS 00133485 No Description Supplement Qty From Up To Part Number 1 2 3 4 4 4 4 4 4 4 SILVER REAR WHEEL VALVE WHEEL BOLT BALANCE WEIGHT BALANCE WEIGHT BALANCE WEIGHT BALANCE WEIGHT BALANCE WEIGHT BALANCE WEIGHT BALANCE WEIGHT 4 00X17 D 15 M10X40 1 1 5 36 31 7 664 746 36 31 1 454 963 36 31 7 673 903 5 GR 10 GR 15 GR 20 GR 25 GR 30 GR X X X X X X 36 31 1 451 958 36 31 1 451 959 36 31 1 454 310 36 31 1 451 960 36 31 1 454 311 36 31 1 451 961 AT R 1
