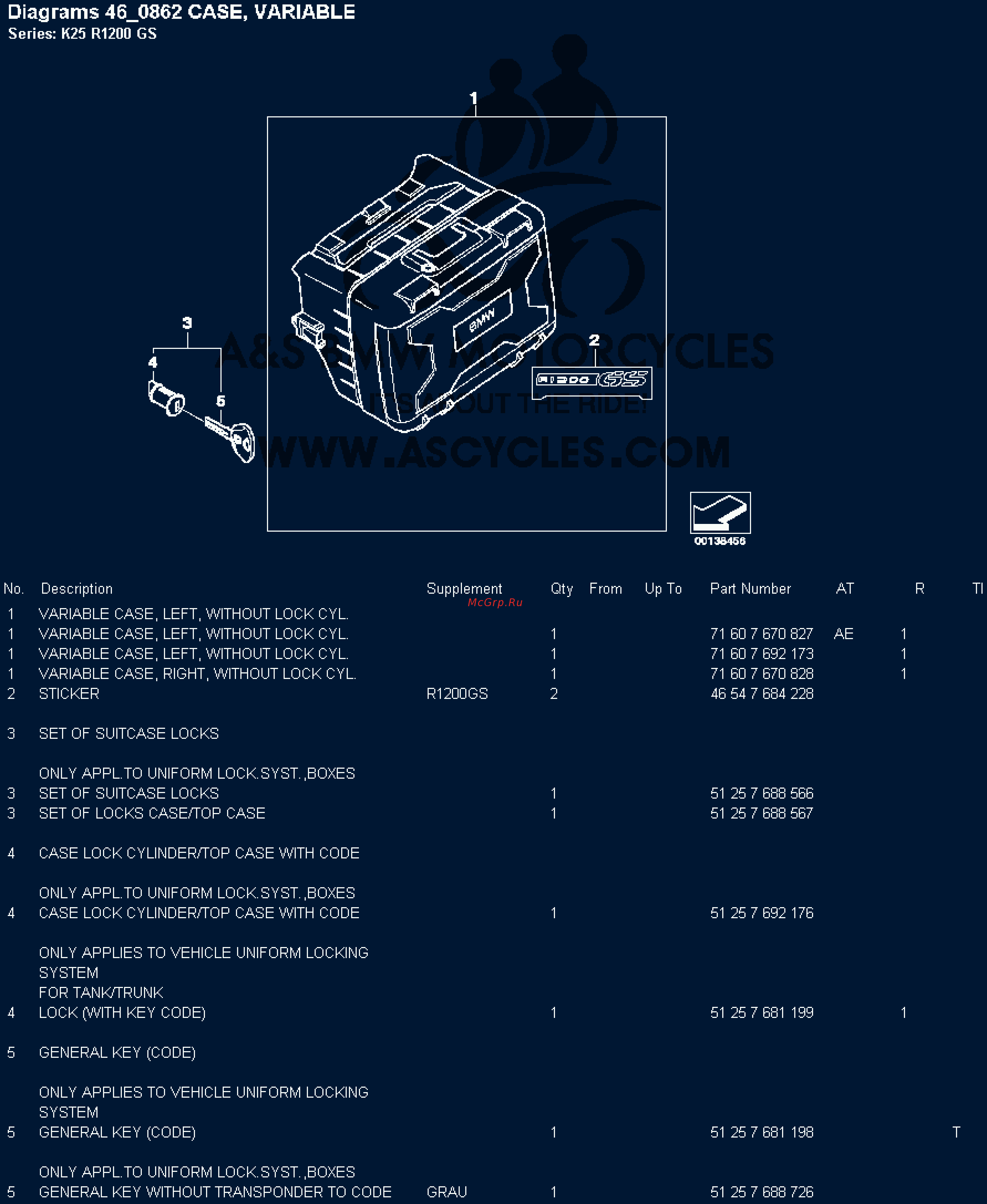

Diagrams 46 0862 CASE VARIABLE Series K25 R1200 GS 00130468 No Description Supplement Qty From Up To Part Number AT R1200GS 1 1 1 2 71 60 7 670 827 AE 71 60 7 692 173 71 60 7 670 828 46 54 7 684 228 1 1 51 25 7 688 566 51 25 7 688 567 ONLY APPL TO UNIFORM LOCK SYST BOXES 4 CASE LOCK CYLINDER TOP CASE WITH CODE 1 51 25 7 692 176 ONLY APPLIES TO VEHICLE UNIFORM LOCKING SYSTEM FOR TANK TRUNK 4 LOCK WITH KEY CODE 1 51 25 7 681 199 1 51 25 7 681 198 1 VARIABLE CASE LEFT WITHOUT LOCK CYL 1 VARIABLE CASE LEFT WITHOUT LOCK CYL 1 VARIABLE CASE LEFT WITHOUT LOCK CYL 1 VARIABLE CASE RIGHT WITHOUT LOCK CYL 2 STICKER 3 SET OF SUITCASE LOCKS ONLY APPL TO UNIFORM LOCK SYST BOXES 3 SET OF SUITCASE LOCKS 3 SET OF LOCKS CASE TOP CASE 4 CASE LOCK CYLINDER TOP CASE WITH CODE 5 GENERAL KEY CODE ONLY APPLIES TO VEHICLE UNIFORM LOCKING SYSTEM 5 GENERAL KEY CODE ONLY APPL TO UNIFORM LOCK SYST BOXES R Tl 1 1 1
