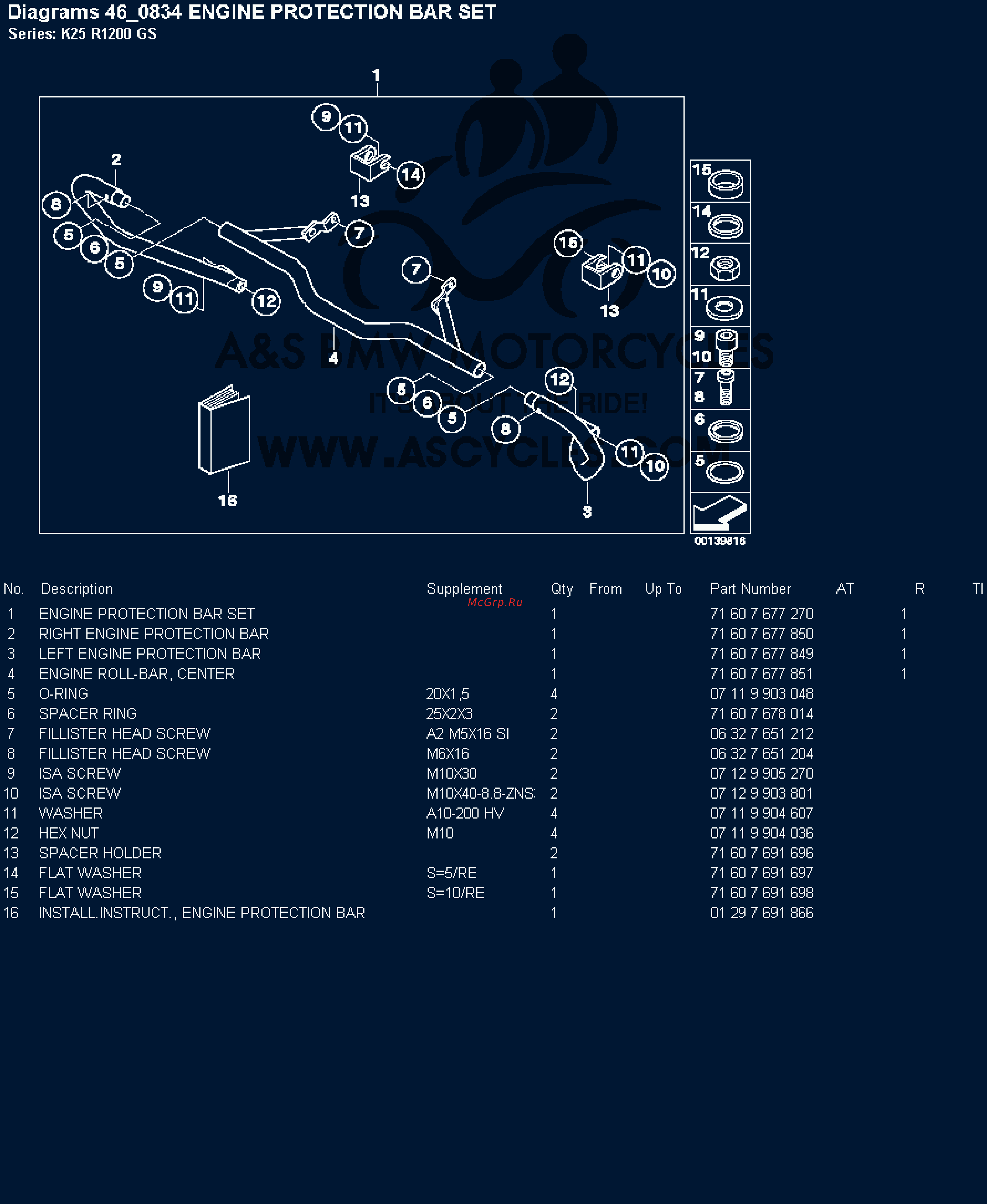

Diagrams 46 0834 ENGINE PROTECTION BAR SET Series K25 R1200 GS 00139618 No Description 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 ENGINE PROTECTION BAR SET RIGHT ENGINE PROTECTION BAR LEFT ENGINE PROTECTION BAR ENGINE ROLL BAR CENTER O RING SPACER RING FILLISTER HEAD SCREW FILLISTER HEAD SCREW ISA SCREW ISA SCREW WASHER HEX NUT SPACER HOLDER FLAT WASHER FLAT WASHER INSTALL INSTRUCT ENGINE PROTECTION BAR Supplement 20X1 5 25X2X3 A2 M5X16 SI M6X16 M10X30 M10X40 8 8 ZNS A10 200 HV M10 S 5 RE S 10 RE Qty 1 1 1 1 4 2 2 2 2 2 4 4 2 1 1 1 From Up To Part Number 71 60 7 677 270 71 60 7 677 850 71 60 7 677 849 71 60 7 677 851 07 11 9 903 048 71 60 7 678 014 06 32 7 651 212 06 32 7 651 204 07 12 9 905 270 07 12 9 903 801 07 11 9 904 607 07 11 9 904 036 71 60 7 691 696 71 60 7 691 697 71 60 7 691 698 01 29 7 691 866 AT R 1 1 1 1
