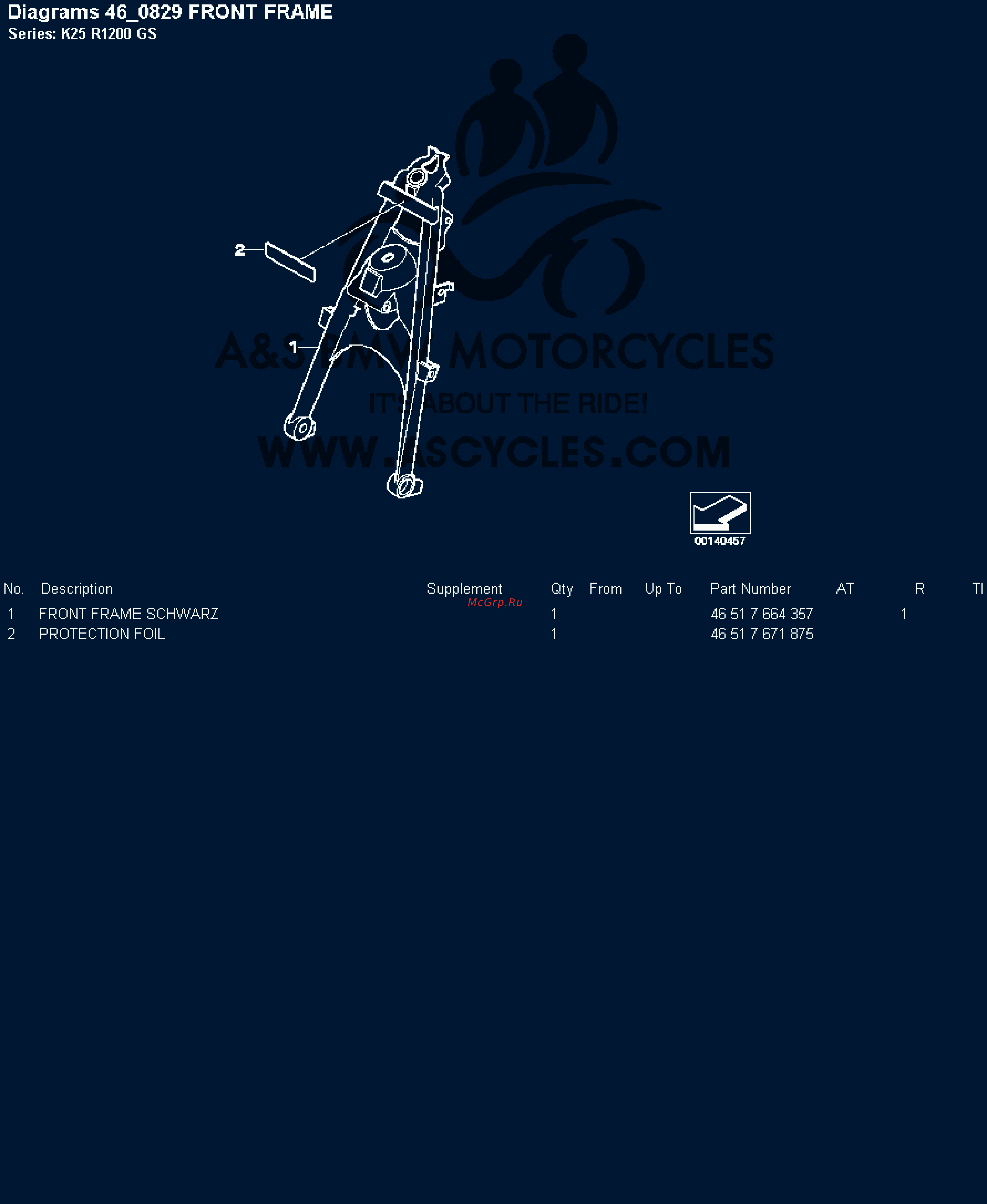

Diagrams 46 0829 FRONT FRAME Series K25 R1200 GS 00140457 No Description 1 FRONT FRAME SCHWARZ 2 PROTECTION FOIL Supplement Qty From Up To Part Number AT R 1 1 46 51 7 664 357 46 51 7 671 875 1
