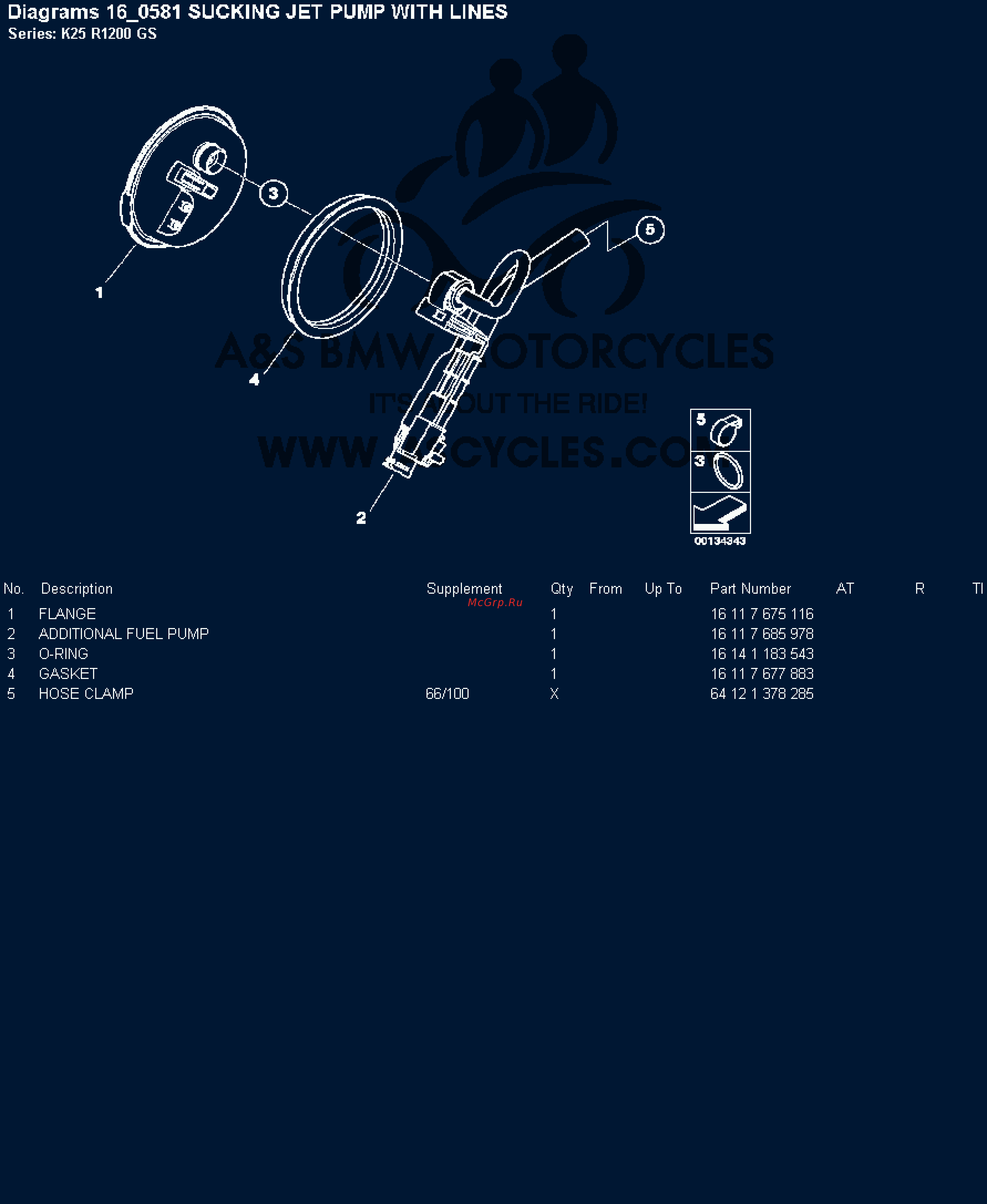

Diagrams 16 0581 SUCKING JET PUMP WITH LINES Series K25 R1200 GS 00134343 No Description 1 FLANGE 2 ADDITIONAL FUEL PUMP 3 O RING 4 GASKET 5 HOSE CLAMP Supplement 66 100 Oty From Up To Part Number 16 11 7 675 116 16 11 7 685 978 16 14 1 183 543 16 11 7 677 883 64 12 1 378 285 AT
