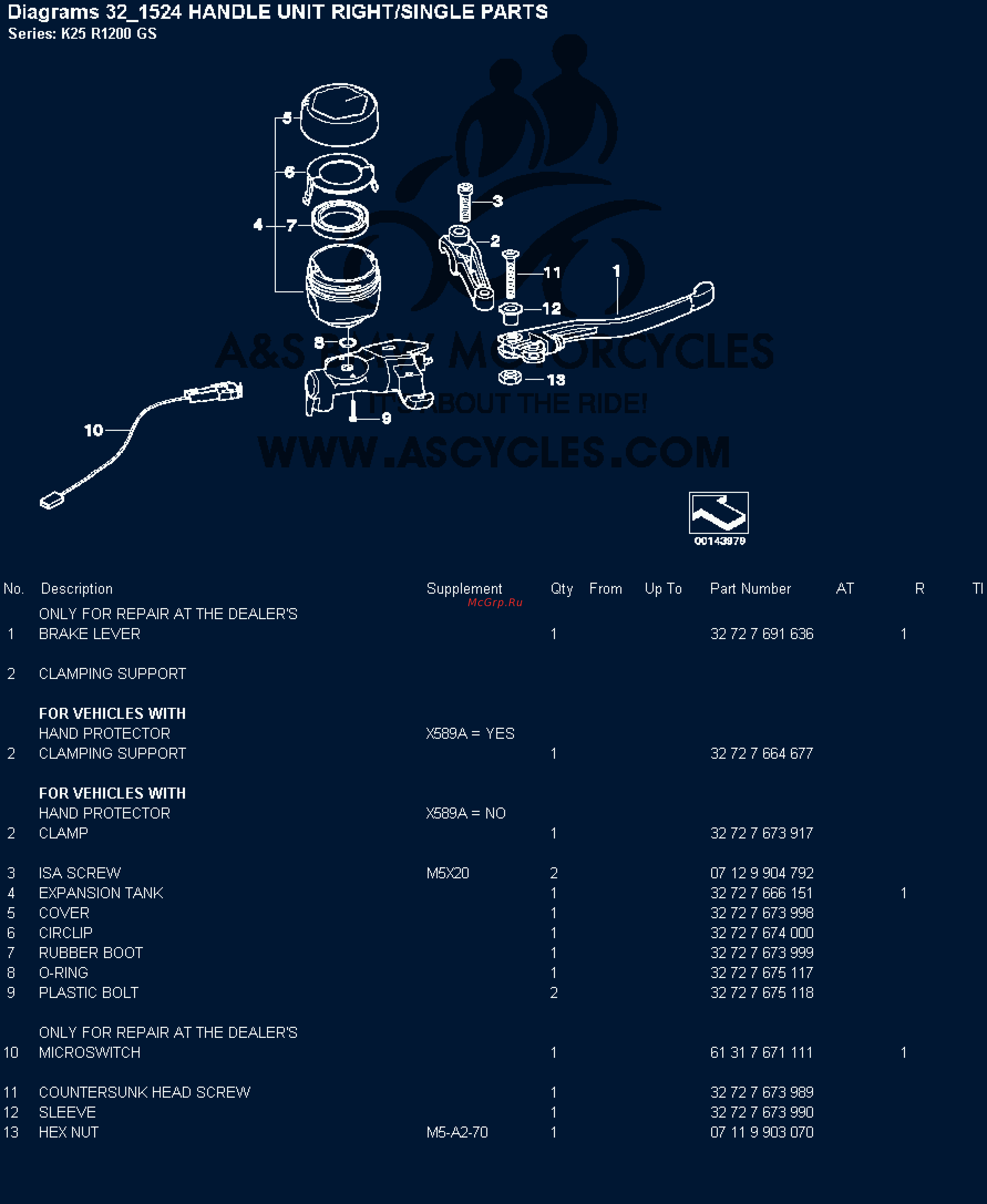

Diagrams 32 1524 HANDLE UNIT RIGHT SINGLE PARTS Series K25 R1200 GS 00143970 No Description Supplement Oty From Up To Part Number ONLY FOR REPAIR AT THE DEALER S 1 BRAKE LEVER AT R Tl 32 72 7 691 636 1 2 CLAMPING SUPPORT FOR VEHICLES WITH HAND PROTECTOR 2 CLAMPING SUPPORT X589A YES FOR VEHICLES WITH HAND PROTECTOR 2 CLAMP X589A NO 3 ISA SCREW 4 EXPANSION TANK 5 COVER 6 CIRCLIP 7 RUBBER BOOT 8 O RING 9 PLASTIC BOLT 1 M5X20 ONLY FOR REPAIR AT THE DEALER S 10 MICROSWITCH 11 COUNTERSUNK HEAD SCREW 12 SLEEVE 13 HEXNUT M5 A2 70 32 72 7 664 677 1 32 72 7 673 917 2 1 1 1 1 1 2 07 12 9 904 792 32 72 7 666 151 32 72 7 673 998 32 72 7 674 000 32 72 7 673 999 32 72 7 675 117 32 72 7 675 118 1 61 31 7 671 111 1 1 1 32 72 7 673 989 32 72 7 673 990 07 11 9 903 070 1
