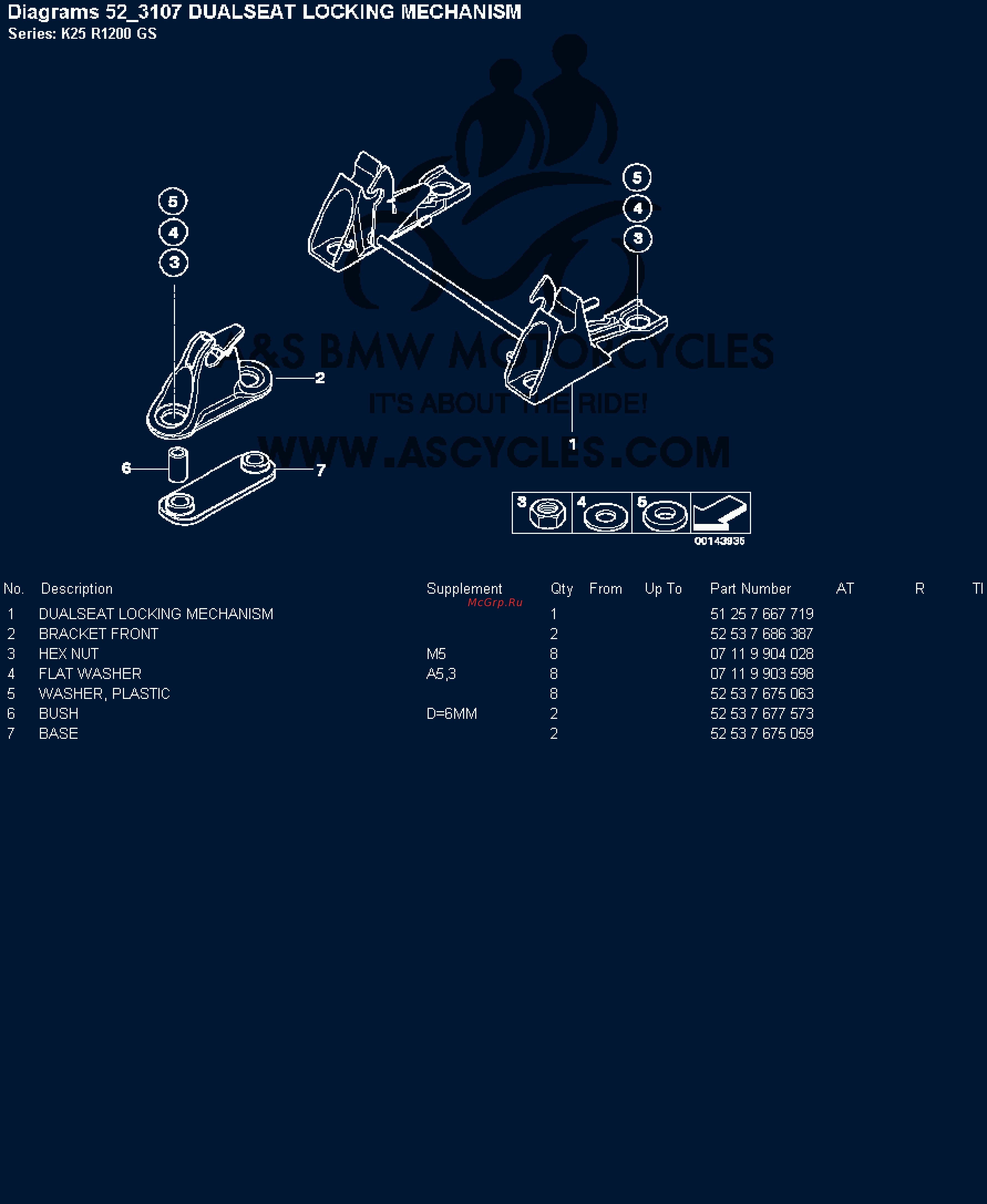

Diagrams 52_3107 DUALSEAT LOCKING MECHANISM Series K25 R1200 GS 00143935 No Description 1 2 3 4 5 6 7 DUALSEAT LOCKING MECHANISM BRACKET FRONT HEX NUT FLAT WASHER WASHER PLASTIC BUSH BASE Supplement M5 A5 3 D 6MM Qty 1 2 8 8 8 2 2 From Up To Part Number 51 25 7 667 719 52 53 7 686 387 07 11 9 904 028 07 11 9 903 598 52 53 7 675 063 52 53 7 677 573 52 53 7 675 059 AT
