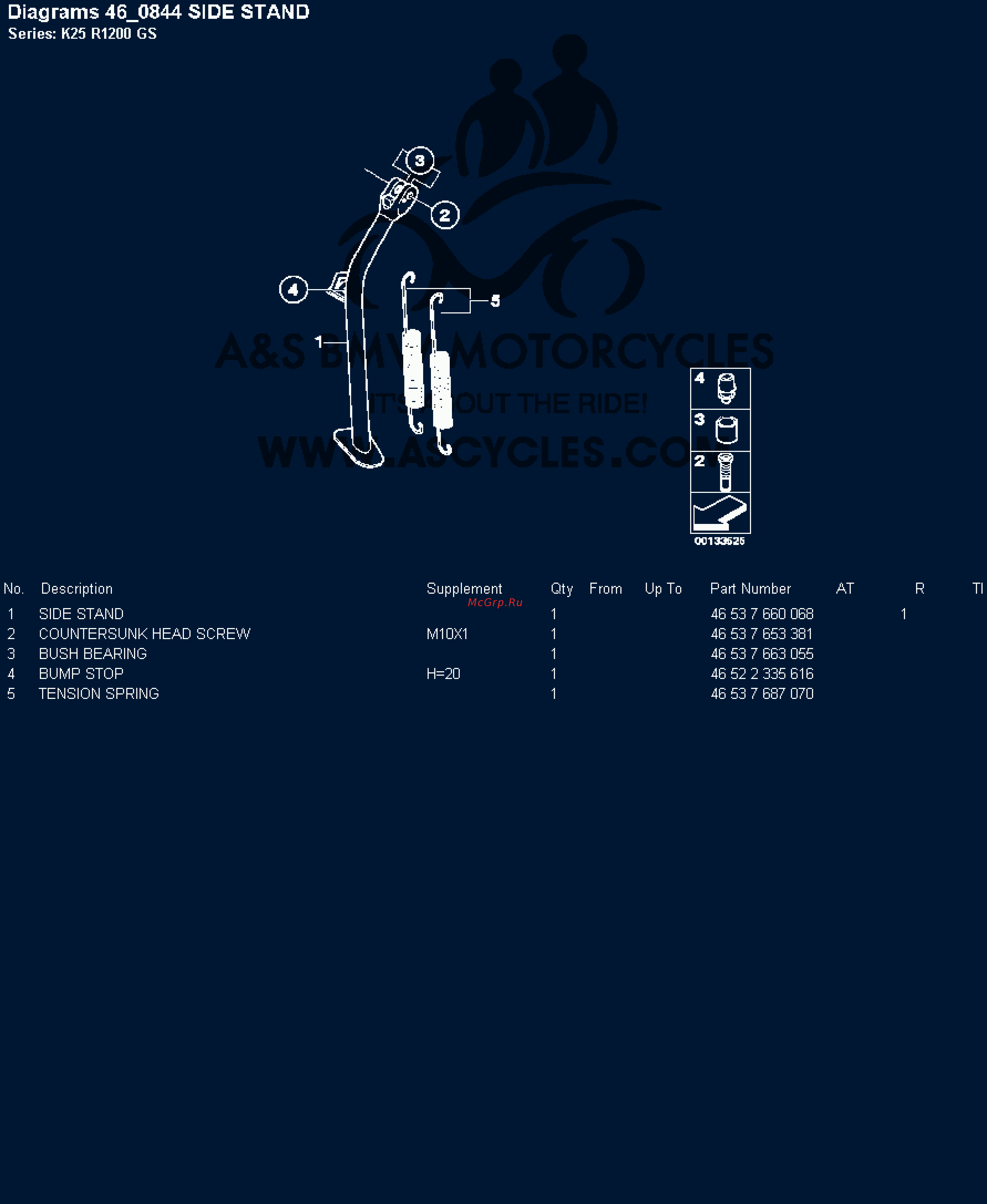

Diagrams 46 0844 SIDE STAND Series K25 R1200 GS 00133625 No Description 1 2 3 4 5 SIDE STAND COUNTERSUNK HEAD SCREW BUSH BEARING BUMP STOP TENSION SPRING Supplement M10X1 H 20 Qty 1 1 1 1 1 From Up To Part Number 46 53 7 660 068 46 53 7 653 381 46 53 7 663 055 46 52 2 335 616 46 53 7 687 070 AT R 1
