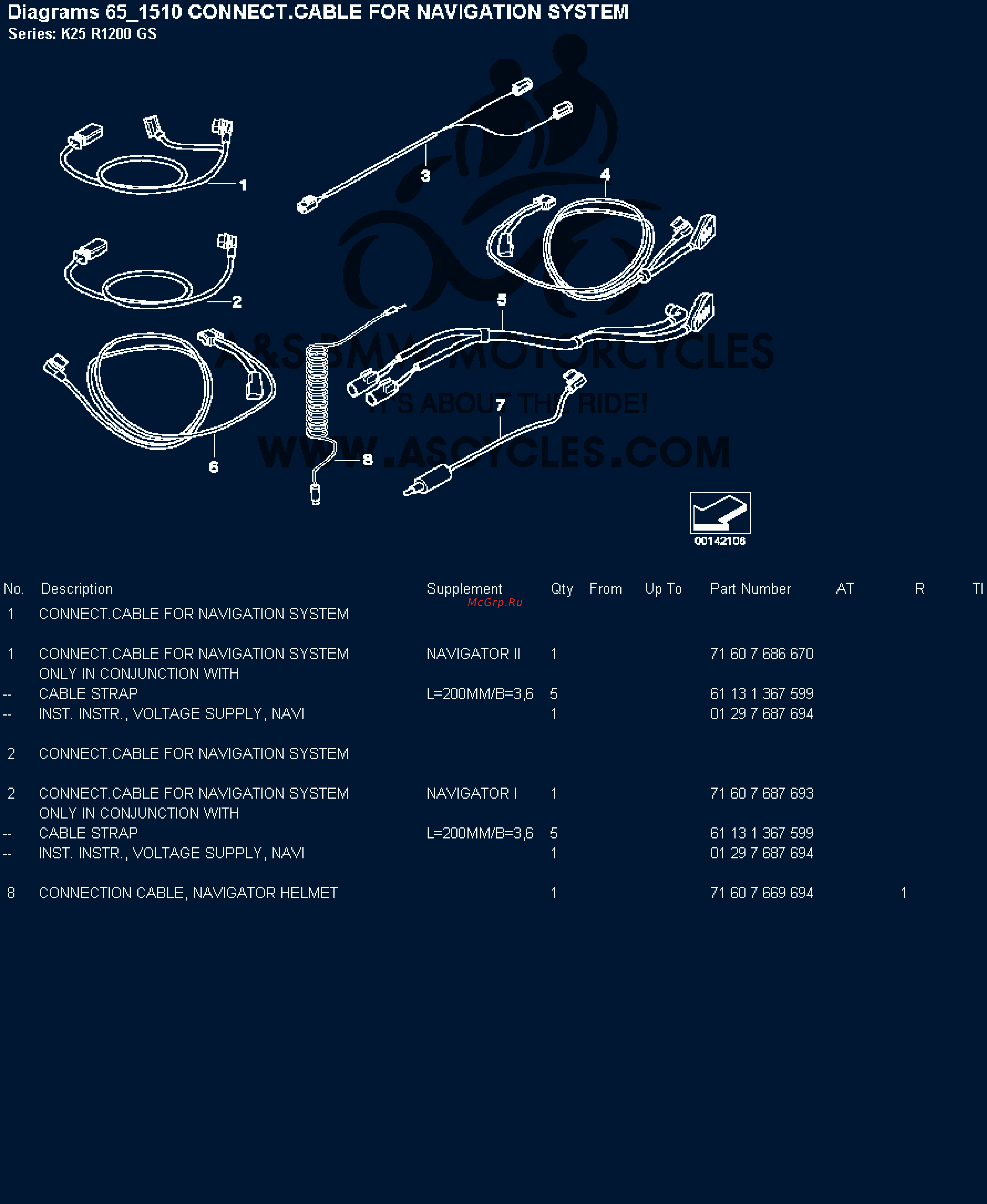

Diagrams 65_1510 CONNECT CABLE FOR NAVIGATION SYSTEM Series K25 R1200 GS 00142106 No Description Supplement Qty From Up To Part Number AT R Tl 1 CONNECT CABLE FOR NAVIGATION SYSTEM 1 CONNECT CABLE FOR NAVIGATION SYSTEM ONLY IN CONJUNCTION WITH CABLE STRAP INST INSTR VOLTAGE SUPPLY NAVI NAVIGATOR II 1 71 60 7 686 670 L 200MM B 3 6 5 1 61 13 1 367 599 01 29 7 687 694 NAVIGATOR I 1 71 60 7 687 693 L 200MM B 3 6 5 1 61 13 1 367 599 01 29 7 687 694 1 71 60 7 669 694 2 CONNECT CABLE FOR NAVIGATION SYSTEM 2 CONNECT CABLE FOR NAVIGATION SYSTEM ONLY IN CONJUNCTION WITH CABLE STRAP INST INSTR VOLTAGE SUPPLY NAVI 8 CONNECTION CABLE NAVIGATOR HELMET
