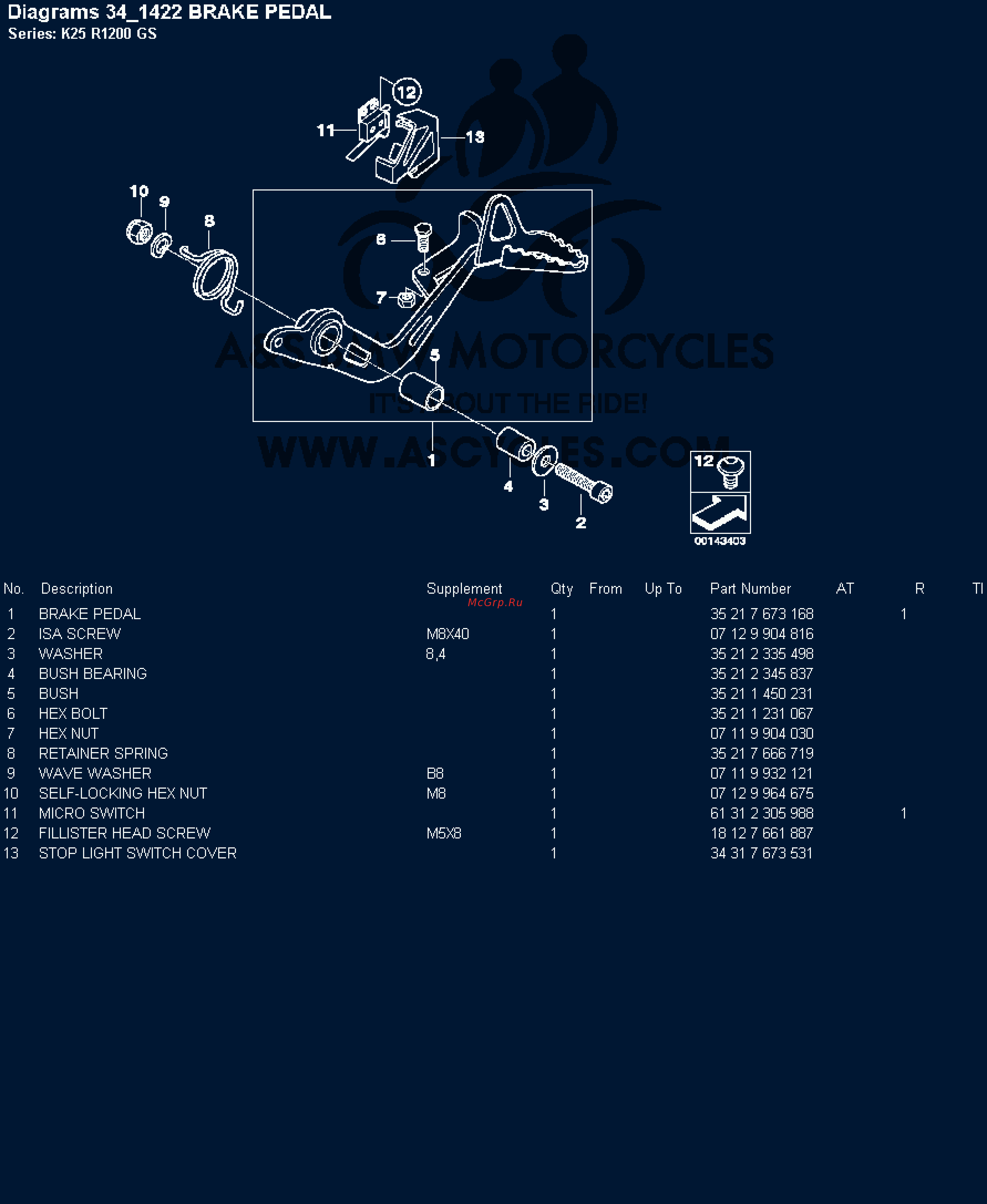

Diagrams 34 1422 BRAKE PEDAL Series K25 R1200 GS 00143403 No Description 1 2 3 4 5 6 7 8 9 10 11 12 13 BRAKE PEDAL ISA SCREW WASHER BUSH BEARING BUSH HEX BOLT HEX NUT RETAINER SPRING WAVE WASHER SELF LOCKING HEX NUT MICRO SWITCH FILLISTER HEAD SCREW STOP LIGHT SWITCH COVER Supplement M8X40 8 4 B8 M8 M5X8 Qty 1 1 1 1 1 1 1 1 1 1 1 1 1 From Up To Part Number 35 21 7 673 168 07 12 9 904 816 35 21 2 335 498 35 21 2 345 837 35 21 1 450 231 35 21 1 231 067 07 11 9 904 030 35 21 7 666 719 07 11 9 932 121 07 12 9 964 675 61 31 2 305 988 18 12 7 661 887 34 31 7 673 531 AT R 1 1
