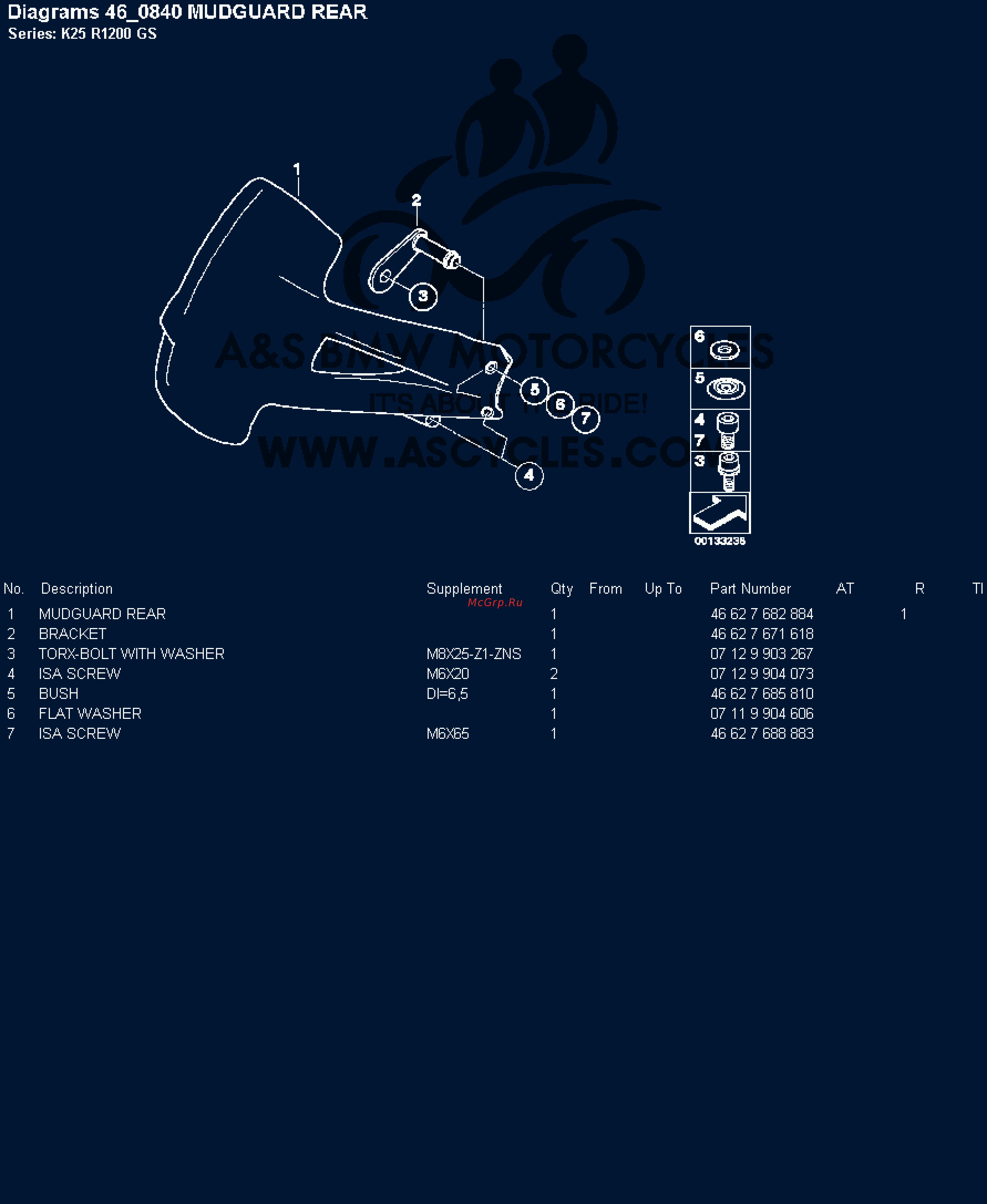

Diagrams 46 0840 MUDGUARD REAR Series K25 R1200 GS 00133236 No Description 1 2 3 4 5 6 7 MUDGUARD REAR BRACKET TORX BOLT WITH WASHER ISA SCREW BUSH FLAT WASHER ISA SCREW Supplement M8X25 Z1 ZNS M6X20 Dl 6 5 M6X65 Qty 1 1 1 2 1 1 1 From Up To Part Number 46 62 7 682 884 46 62 7 671 618 07 12 9 903 267 07 12 9 904 073 46 62 7 685 810 07 11 9 904 606 46 62 7 688 883 AT R 1
