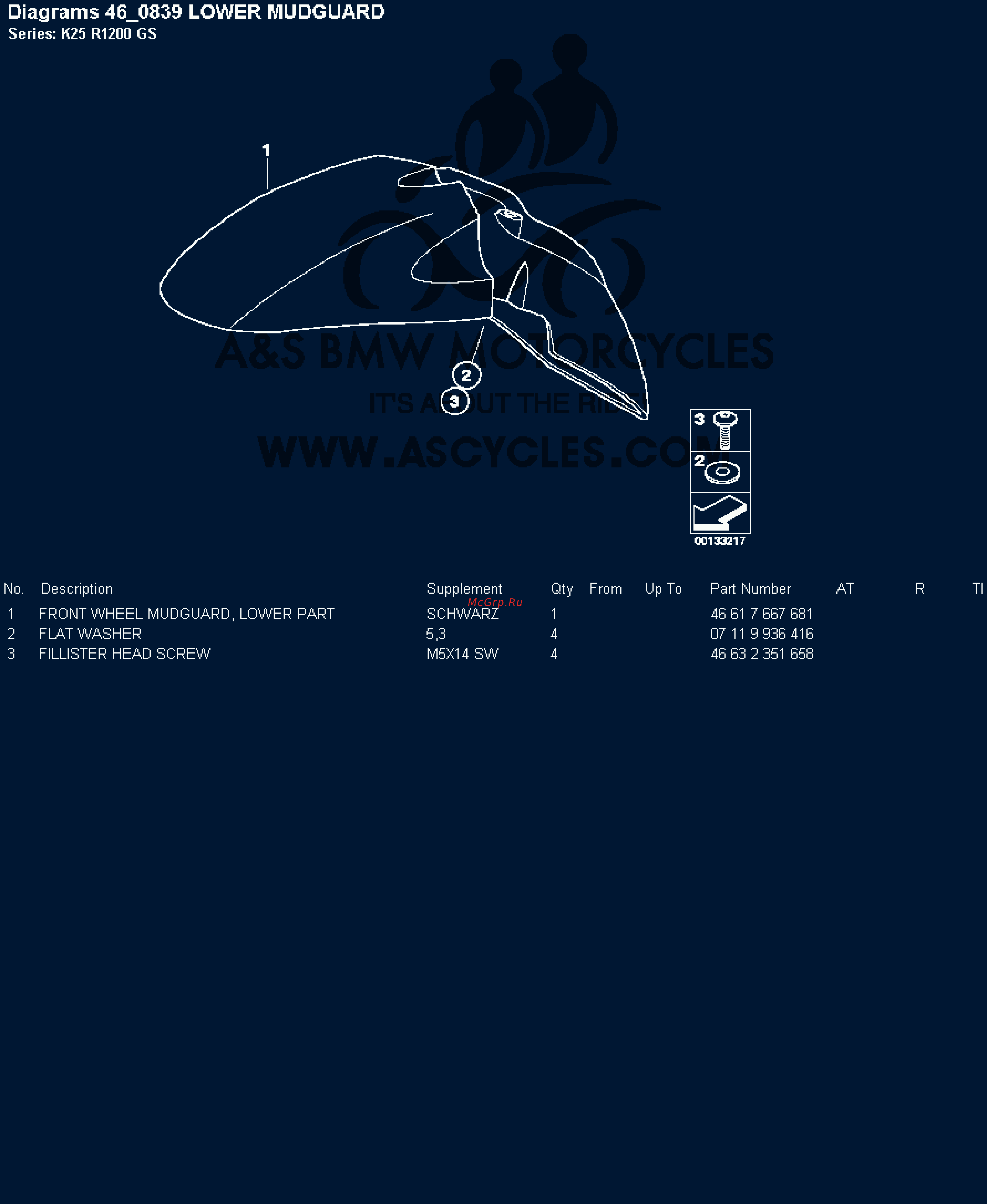

Diagrams 46 0839 LOWER MUDGUARD Series K25 R1200 GS 00133217 No Description Supplement Qty From Up To Part Number 1 2 3 FRONT WHEEL MUDGUARD LOWER PART FLAT WASHER FILLISTER HEAD SCREW SCHWARZ 5 3 M5X14 SW 1 4 4 46 61 7 667 681 07 11 9 936 416 46 63 2 351 658 AT R
