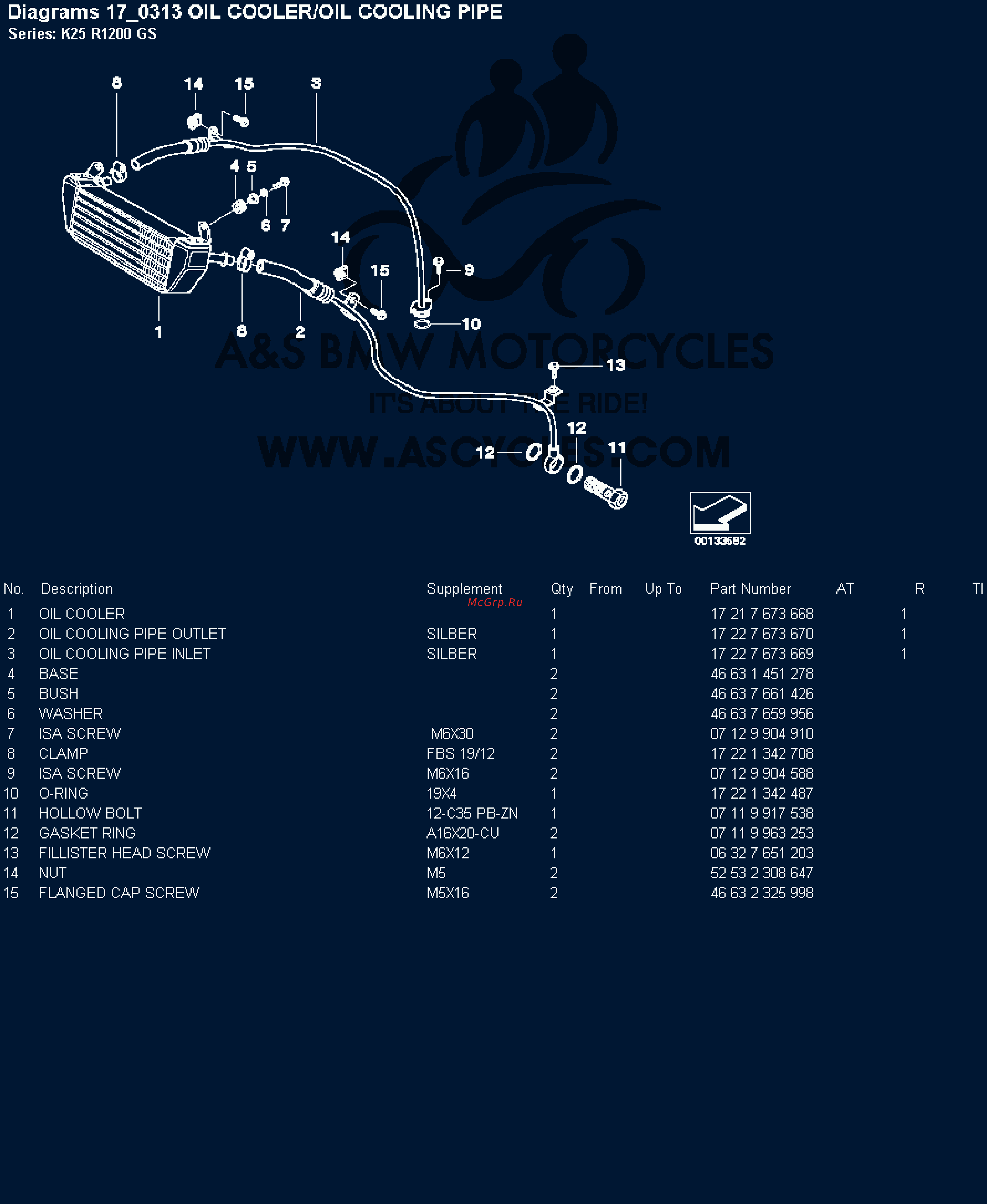

Diagrams 17_0313 OIL COOLER OIL COOLING PIPE Series K25 R1200 GS 8 14 15 3 00133602 No Description 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 OIL COOLER OIL COOLING PIPE OUTLET OIL COOLING PIPE INLET BASE BUSH WASHER ISA SCREW CLAMP ISA SCREW O RING HOLLOW BOLT GASKET RING FILLISTER HEAD SCREW NUT FLANGED CAP SCREW Supplement SILBER SILBER M6X30 FBS 19 12 M6X16 19X4 12 C35 PB ZN A16X20 CU M6X12 M5 M5X16 Qty 1 1 1 2 2 2 2 2 2 1 1 2 1 2 2 From Up To Part Number 17 21 7 673 668 17 22 7 673 670 17 22 7 673 669 46 63 1 451 278 46 63 7 661 426 46 63 7 659 956 07 12 9 904 910 17 22 1 342 708 07 12 9 904 588 17 22 1 342 487 07 11 9 917 538 07 11 9 963 253 06 32 7 651 203 52 53 2 308 647 46 63 2 325 998 AT R 1 1 1
