BMW 1200GS [6/142] Diagrams 11 592 front cover timing chain cover

Содержание

• Diagrams 11 720 engine 1
• Diagrams 11_3719 short engine 2
• Diagrams 11_3568 underride portection 3
• Diagrams 11_3569 engine housing 4
• Diagrams 11 594 engine ventilation 5
• Diagrams 11 592 front cover timing chain cover 6
• Diagrams 11_3595 cylinder 7
• Diagrams 11 813 piston single components 8
• Diagrams 11_3584 cylinder head cover 9
• Diagrams 11 591 cylinder head mounting parts 10
• Diagrams 11_3669 crankshaft attaching parts 11
• Diagrams 11_2806 connecting rod connecting rod bearing 12
• Diagrams 11 676 camshaft 13
• Diagrams 11 804 camshaft supporting bracket 14
• Diagrams 11 672 timing gear intake valve exhaust valve 15
• Diagrams 11 798 rocker arm shaft valve lifter 16
• Diagrams 11_3670 timing chain chain tensioner slide rail 17
• Diagrams 11 797 timing valve train timing chain camshaft 18
• Diagrams 11 795 lubrication system oil filter 19
• Diagrams 11 796 single parts f oil pump 20
• Diagrams 11_3596 compensating shaft 21
• Diagrams 12 259 ignition system 22
• Diagrams 12 257 generator 23
• Diagrams 12 017 starter 24
• Diagrams 12 258 starter cover mounting 25
• Diagrams intake manifold 26
• Diagrams 13_1116 throttle housing assy 27
• Diagrams 13_1117 bms k control unit 28
• Diagrams 13_1118 air cleaner housing 29
• Diagrams 16 548 fuel tank 30
• Diagrams 16 574 filler cap 31
• Diagrams 16 579 fuel pump and fuel level sensor 32
• Diagrams 16 581 sucking jet pump with lines 33
• Diagrams 16 582 activated carbon container fuel ventilat 34
• Diagrams 16 482 fuel supply quick coupling 35
• Diagrams 16 450 fuel distributor pressure regulator 36
• Diagrams 16 573 tank top bag 37
• 14 15 3 38
• Diagrams 17_0313 oil cooler oil cooling pipe 38
• Diagrams 18 529 exhaust manifold with catalyst 39
• Diagrams 18 530 muffler system 40
• Diagrams 21_0195 clutch mounting parts 41
• Diagrams 21_0196 clutch control 42
• Diagrams 23 963 manual transmission 43
• Diagrams 23_0965 6 speed transmission shift components 44
• Diagrams 23_0964 shift lever 45
• Diagrams 26 118 drive shaft 46
• Diagrams 31_0684 fork leg 47
• Diagrams 31 0685 fork slider lower fork bridge 48
• Diagrams 31_0686 telescope fork 49
• Diagrams 31 529 upper fork bridge 50
• Diagrams 31_0687 trailing arm 51
• Diagrams 31_0688 front spring strut 52
• Diagrams 32 248 handlebar 53
• Diagrams 32 502 complete left handle unit 54
• Diagrams 32 523 handle unit left single parts 55
• Diagrams 32 523 handle unit left single parts 56
• Diagrams 32_1503 complete right handle unit 57
• Diagrams 32 524 handle unit right single parts 58
• Diagrams 32_1505 heated handlebar grips 59
• Diagrams 32 504 bowden cable cable distributor 60
• Diagrams 32 490 hand protector 61
• Diagrams 33 224 final drive 62
• Diagrams 33 265 final drive parts 63
• Diagrams 33 265 final drive parts 64
• Diagrams 33 266 differential gear set 65
• Diagrams 33 226 rear trailing arm 66
• Diagrams 33 225 tension struts with mounting 67
• Diagrams 33 1214 rear spring strut 68
• Diagrams 34 392 front wheel brake integral abs 69
• Diagrams 34_1406 brake pipe front integral abs 70
• Diagrams 34 393 rear wheel brake 71
• Diagrams 34 408 brake master cylinder rear integral abs 72
• Diagrams 34 407 fluid container rear 73
• Diagrams 34 422 brake pedal 74
• Diagrams 34 409 pressure modulator integral abs 75
• Diagrams 36_ü412 spoke wheel 76
• Diagrams 36_0413 spoke wheel rim spoke 77
• Diagrams 36 780 wheel hub mounting parts front 78
• Diagrams 36 779 wheel hub rear 79
• Diagrams 36 781 cast rim front 80
• Diagrams 36 782 cast rim rear 81
• Diagrams 46 829 front frame 82
• Diagrams 46 828 rear frame 83
• Diagrams 46 843 center stand 84
• Diagrams 46 844 side stand 85
• Diagrams 46 866 luggage support 86
• Diagrams 46 867 luggage grid 87
• Diagrams 46 864 set case holder 88
• Diagrams 46 862 case variable 89
• Diagrams 46 868 case variable single parts 90
• Diagrams 46 868 case variable single parts 91
• Diagrams 46 851 bag aluminum case top case 92
• Diagrams 46 863 top case 93
• Diagrams 46 869 retrofit kit top case bracket 94
• Diagrams 46 931 top case 95
• Diagrams 46 838 upper mudguard 96
• Diagrams 46 839 lower mudguard 97
• Diagrams 46 846 rear mudguard 98
• Diagrams 46 840 mudguard rear 99
• Diagrams 46 856 fairing bracket 100
• Diagrams 46 841 trim panel parts mounting parts 101
• Diagrams 46 841 trim panel parts mounting parts 102
• Diagrams 46 842 windshield 103
• Diagrams 46 855 engine suspension 104
• Diagrams 46 854 front and rear footpeg 105
• Diagrams 46 834 engine protection bar set 106
• Diagrams 46 837 left safety bar plastic 107
• Diagrams 51_5350 sticker 108
• Diagrams 51 224 mirror 110
• Diagrams 51 341 ignition switch and mounting parts 111
• Diagrams 51_5340 uniform locking system 112
• Diagrams 51 342 painted parts 947 ozeanblau 113
• Diagrams 51 343 painted parts 950 fels rot 114
• Diagrams 51 344 painted parts 952 wustengelb 115
• Diagrams 52_3104 dualseat 116
• Diagrams 52_3107 dualseat locking mechanism 117
• Diagrams 52_3106 tool box 118
• Diagrams 61 288 cable harness 119
• Diagrams 61_1875 central vehicle electronics 120
• Diagrams 61_1819 combination switch at handlebar 121
• Diagrams 61 882 switch sensors 122
• Diagrams 61 882 switch sensors 123
• Diagrams 61_1816 retrofit kit socket 124
• Diagrams 61_1826 horn 125
• Diagrams 61_1817 battery 126
• Diagrams 61_1346 charging device 127
• Diagrams 62_0466 instrument cluster 128
• Diagrams 62_0469 bracket f instrument cluster 129
• Diagrams 63_0849 headlight 130
• Diagrams 63_0851 turn indicator 131
• Diagrams 63_0851 turn indicator 132
• Diagrams 63_0902 side marker 133
• Diagrams 63_0857 rear light 134
• Diagrams 65 482 accessories bmw navigator ii 135
• Diagrams 65 455 mounting parts bmw navigator ii 136
• Diagrams 65_1510 connect cable for navigation system 137
• Diagrams 65 426 alarm systems 138
• Diagrams 71_0383 car tool 139
• Diagrams 71 ü259 repair package 140
• Diagrams 71_0177 motorcycle tarpaulin 141
• Diagrams 71_0398 tarpaulin 142

Похожие устройства

• Stiga SP 350 Инструкция по эксплуатации
• BMW R1150R ABS (2001) Инструкция по эксплуатации
• Stiga SP 350 Q Инструкция по эксплуатации
• BMW R1150RT ABS (2001) Инструкция по эксплуатации
• Stiga SP 352 Инструкция по эксплуатации
• BMW R1150GS (2000) Инструкция по эксплуатации
• Stiga SP 355 Инструкция по эксплуатации
• BMW R1100S (1999) Инструкция по эксплуатации
• Stiga SP 380 Q Инструкция по эксплуатации
• BMW R1200C (1999) Инструкция по эксплуатации
• Stiga SP 382 Инструкция по эксплуатации
• BMW R850C (1999) Инструкция по эксплуатации
• Stiga SP 400 Инструкция по эксплуатации
• BMW R100R Инструкция по эксплуатации
• Stiga SP 400 Q Инструкция по эксплуатации
• BMW R80GS Инструкция по эксплуатации
• Stiga SP 420 Инструкция по эксплуатации
• BMW K1200RS Инструкция по эксплуатации
• Stiga SP 422 Инструкция по эксплуатации
• Stiga SP 440 Инструкция по эксплуатации

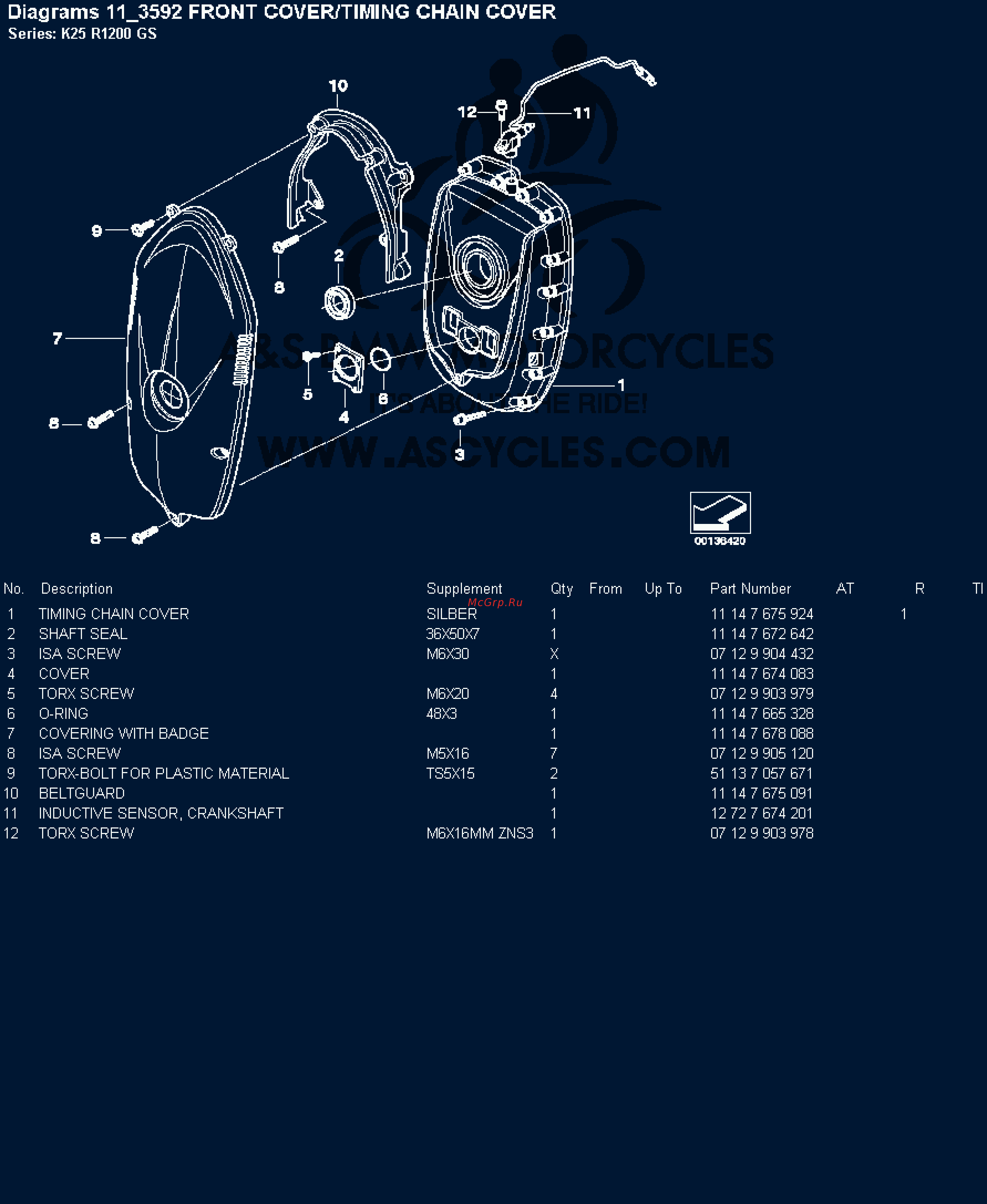

Diagrams 11 3592 FRONT COVER TIMING CHAIN COVER Series K25 R1200 GS No Description Supplement Qty 1 2 3 4 5 6 7 8 9 10 11 12 TIMING CHAIN COVER SHAFT SEAL ISA SCREW COVER TORX SCREW O RING COVERING WITH BADGE ISA SCREW TORX BOLT FOR PLASTIC MATERIAL BELTGUARD INDUCTIVE SENSOR CRANKSHAFT TORX SCREW SILBER 36X50X7 M6X30 1 1 X M6X20 48X3 1 4 M5X16 TS5X15 1 1 7 2 M6X16MMZNS3 1 1 1 From Up To Part Number 11 14 7 675 924 11 14 7 672 642 07 12 9 904 432 11 14 7 674 083 07 12 9 903 979 11 14 7 665 328 11 14 7 678 088 07 12 9 905 120 51 13 7 057 671 11 14 7 675 091 12 72 7 674 201 07 12 9 903 978 AT R 1
