Detach lead to oil pressure switch.
•
Detach lead to side stand switch.
•
Detach lead for injector.
•
Detach lead for throttle angle sensor.
•

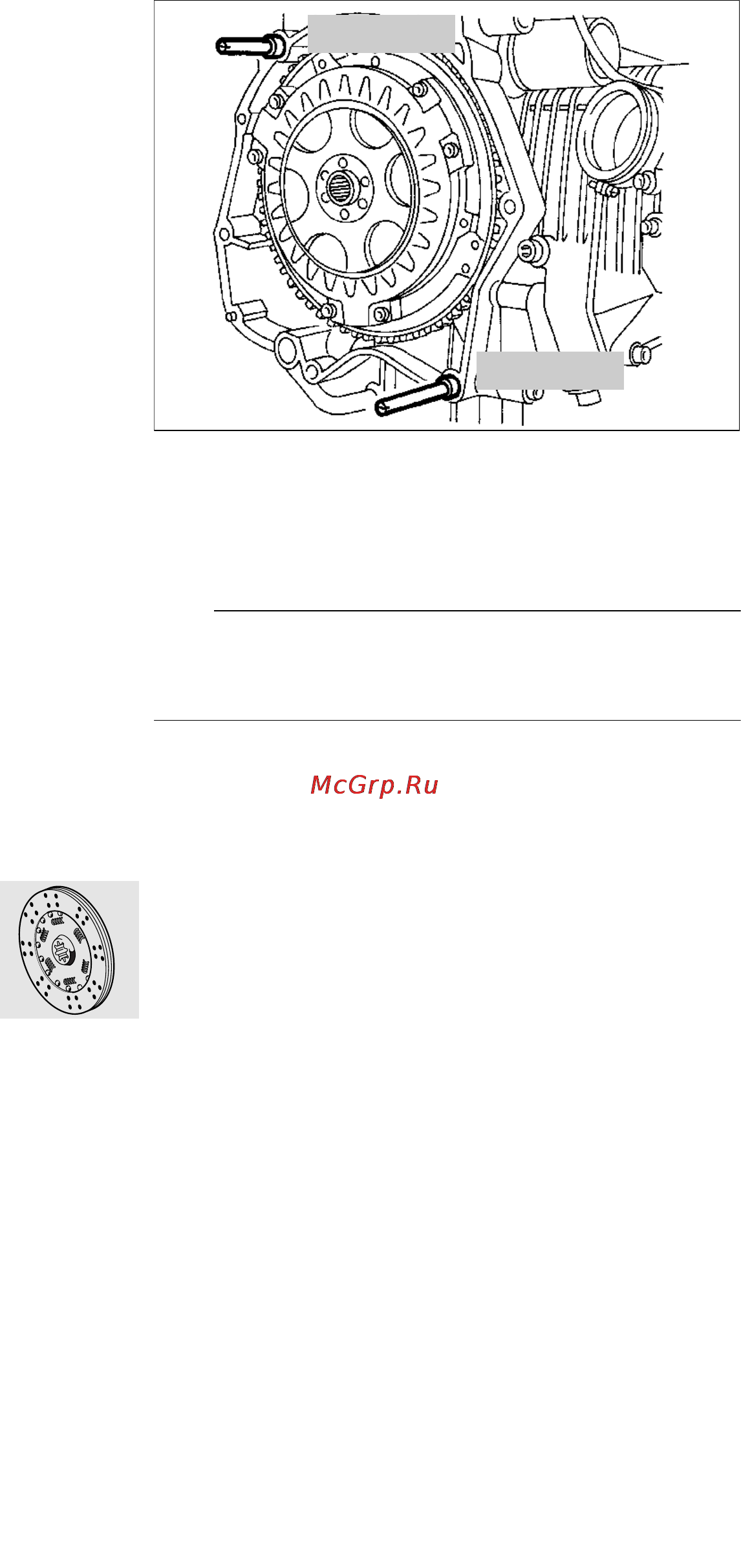

Locate the gearbox when removing and installing
with oiled guide pins, BMW No. 23 1 820.
•
Remove rear wheel, rear wheel drive unit and
swinging arm together with gearbox.
e Caution:
Hold gearbox at installation height until entire clutch
push rod is visible, or else this may be bent.
•
Install in the reverse order of work.
23 1 820
23 1 820
RS230011
