46.17

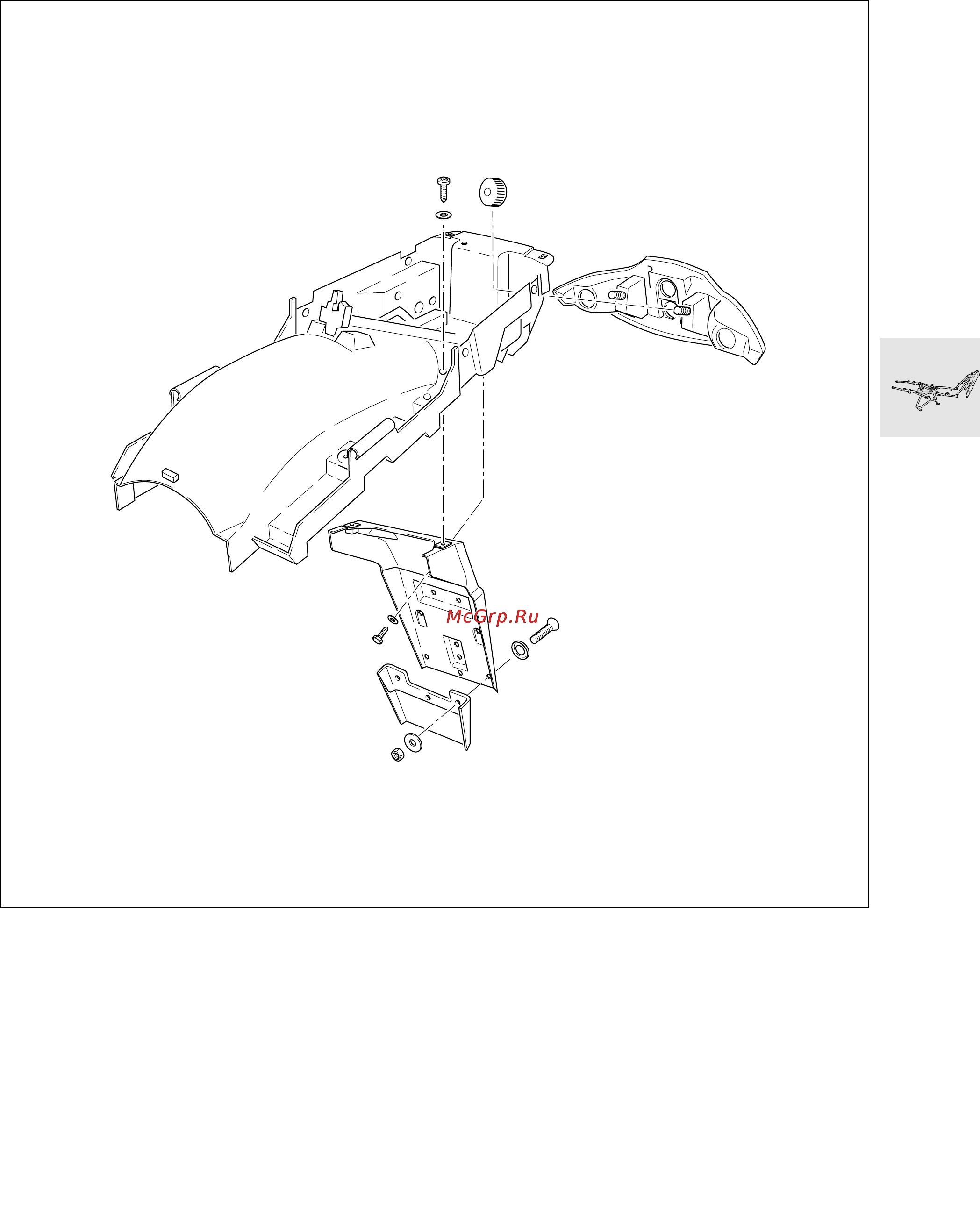

[RT] Removing and installing
number plate mount
•
Remove dualseat.
•
Remove number plate bracket.
•
Install in the reverse order of work.
3x
2x
2x
RT460340
