00.27

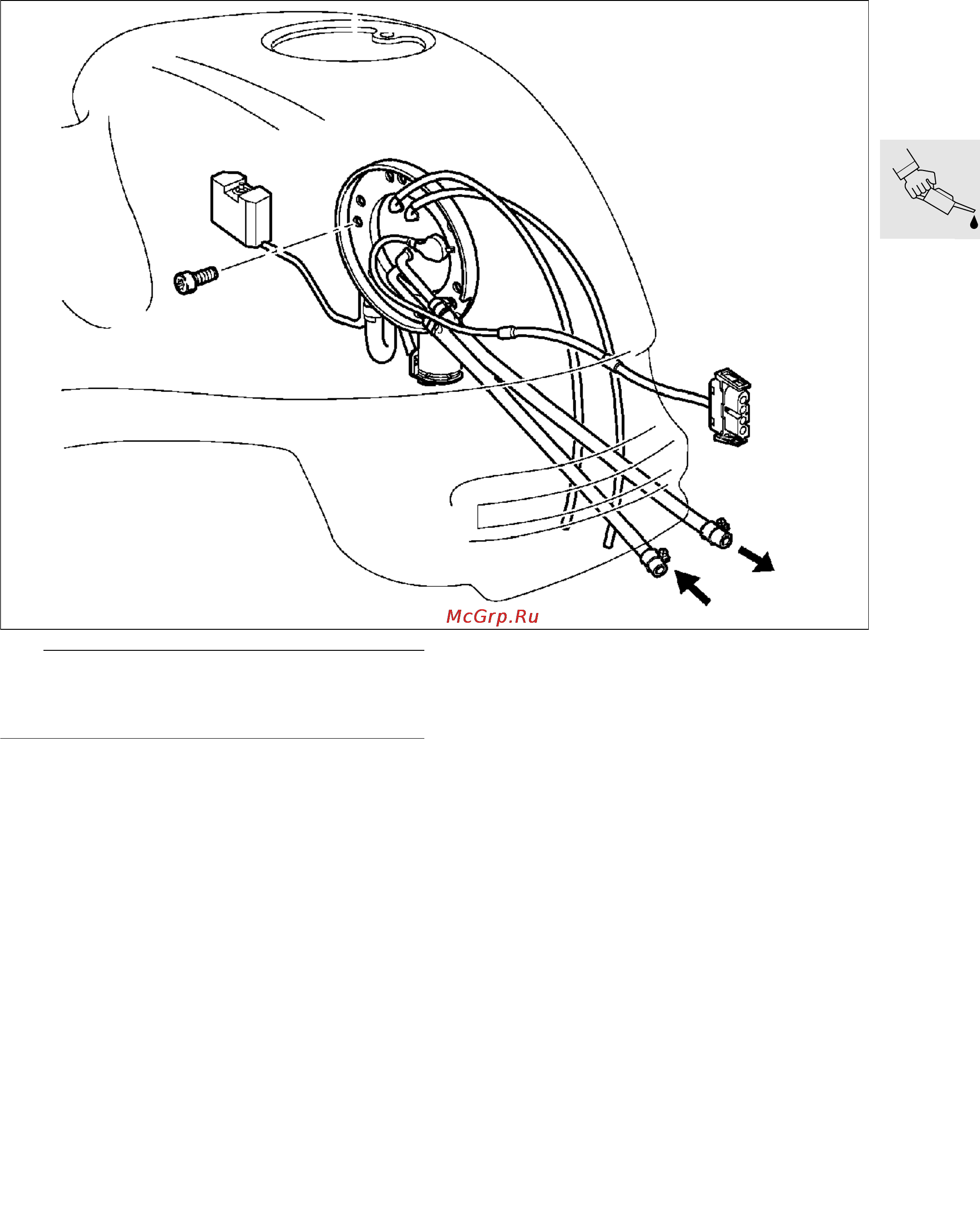

e Caution:
Fuel is flammable and a hazard to health. Observe
relevant safety regulations.
•
Drain fuel tank.
•
Remove fuel pump unit/detach vent hoses.
RS000130
