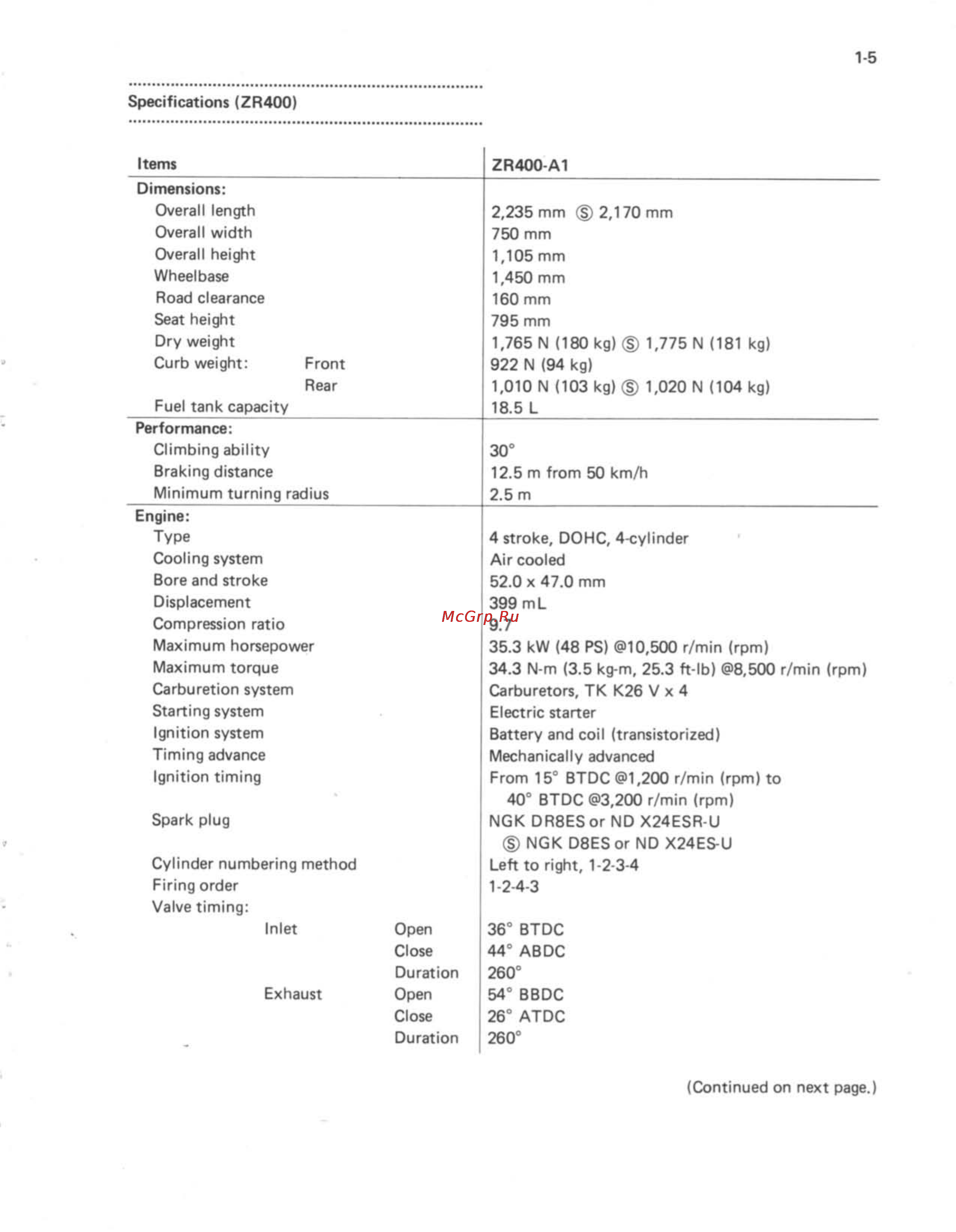

1 5 Specifications ZR400 Items ZR400 A1 Dimensions Overall length 2 235 mm S 2 170 mm Overall width 750 mm Overall height 1 105 mm Wheel base 1 450 mm Road clearance 160 mm Seat height 795 mm Dry weight Curb weight Front 1 765 N 180 kg 1 775 N 181 kg 922 N 94 kg Rear 1 010 N 103 kg 1 020 N 104 kg Fuel tank capacity 18 5 L Performance Climbing ability Braking distance 30 12 5 m from 50 km h Minimum turning radius 2 5 m Engine Type 4 stroke DOHC 4 cylinder Cooling system Air cooled Bore and stroke 52 0 x 47 0 mm Displacement 399 mL Compression ratio 9 7 Maximum horsepower Maximum torque 35 3 kW 48 PS 10 500 r min rpm Carburetion system Starting system Carburetors TK K26 V x 4 Ignition system Battery and coil transistorized Timing advance Ignition timing Mechanically advanced 34 3 N m 3 5 kg m 25 3 ft lb 8 500 r min rpm Electric starter From 15 BTDC 1 200 r min rpm to 40 BTDC 3 200 r min rpm NGK DR8ESor ND X24ESR U Spark plug NGK D8ES or ND X24ES U Cylinder numbering method Firing order Left to right 1 2 3 4 1 2 4 3 Valve timing Inlet Exhaust Open 36 BTDC Close Duration 44 ABDC Open 260 54 BBDC Close Duration 26 ATDC 260 Continued on next page
