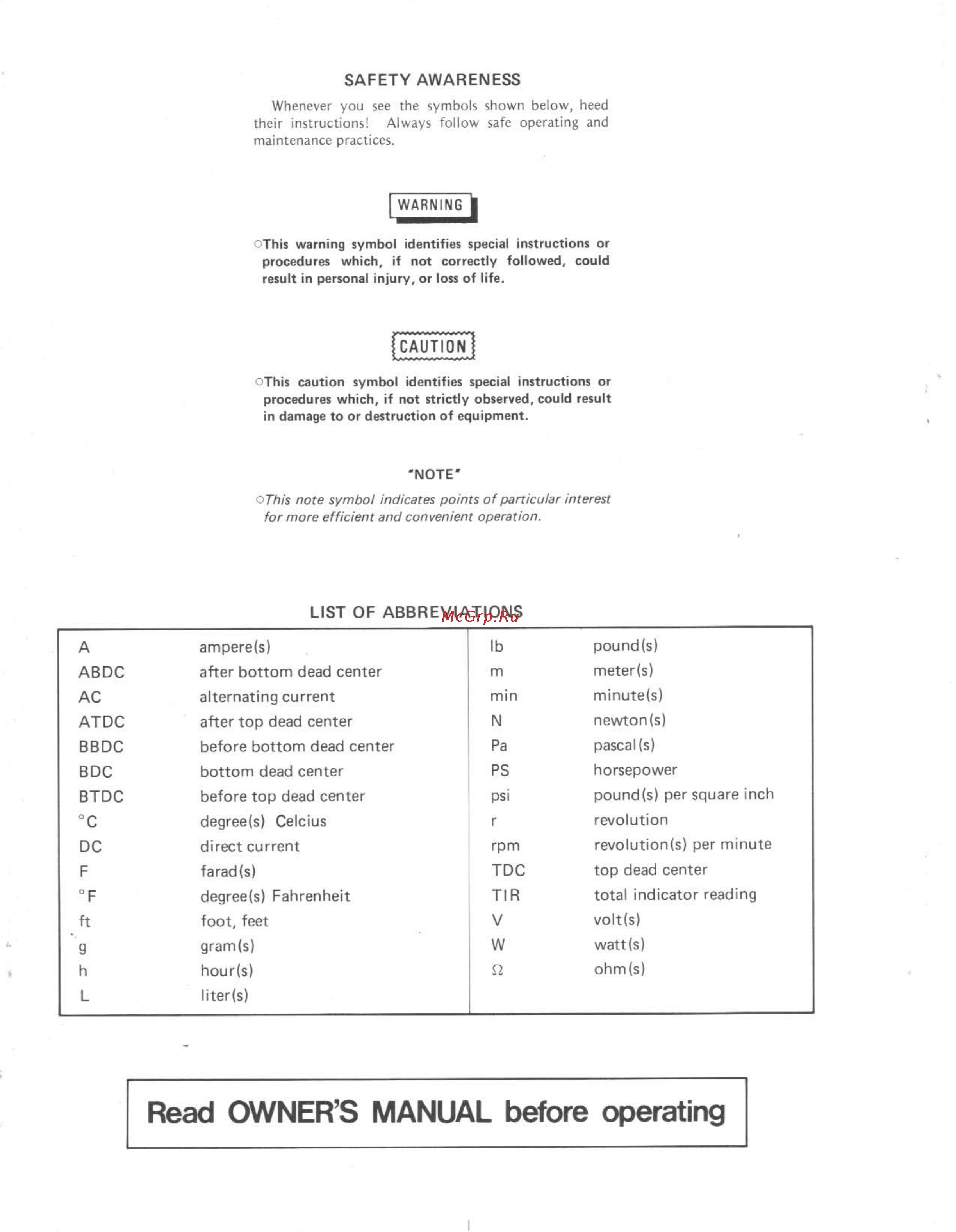

SAFETY AWARENESS Whenever you see the symbols shown below heed their instructions Always follow safe operating and maintenance practices WARNING OThis warning symbol identifies special instructions or procedures which if not correctly followed could result in personal injury or loss of life CAUTION This caution symbol identifies special instructions or procedures which if not strictly observed could result in damage to or destruction of equipment NOTE OThis note symbol indicates points of particular interest for more efficient and convenient operation LIST OF ABBREVIATIONS lb pound s A ampere s ABDC after bottom dead center m meter s AC alternating current min minute s ATDC after top dead center N newton s BBDC before bottom dead center Pa pascal s BDC bottom dead center PS horsepower BTDC before top dead center psi pound s per square inch C degree s Celcius r revolution DC direct current rpm revolution s per minute F farad s TDC top dead center F degree s Fahrenheit TIR total indicator reading ft foot feet V volt s 9 gram s W watt s h hour s Q ohm s L liter s Read OWNER S MANUAL before operating
