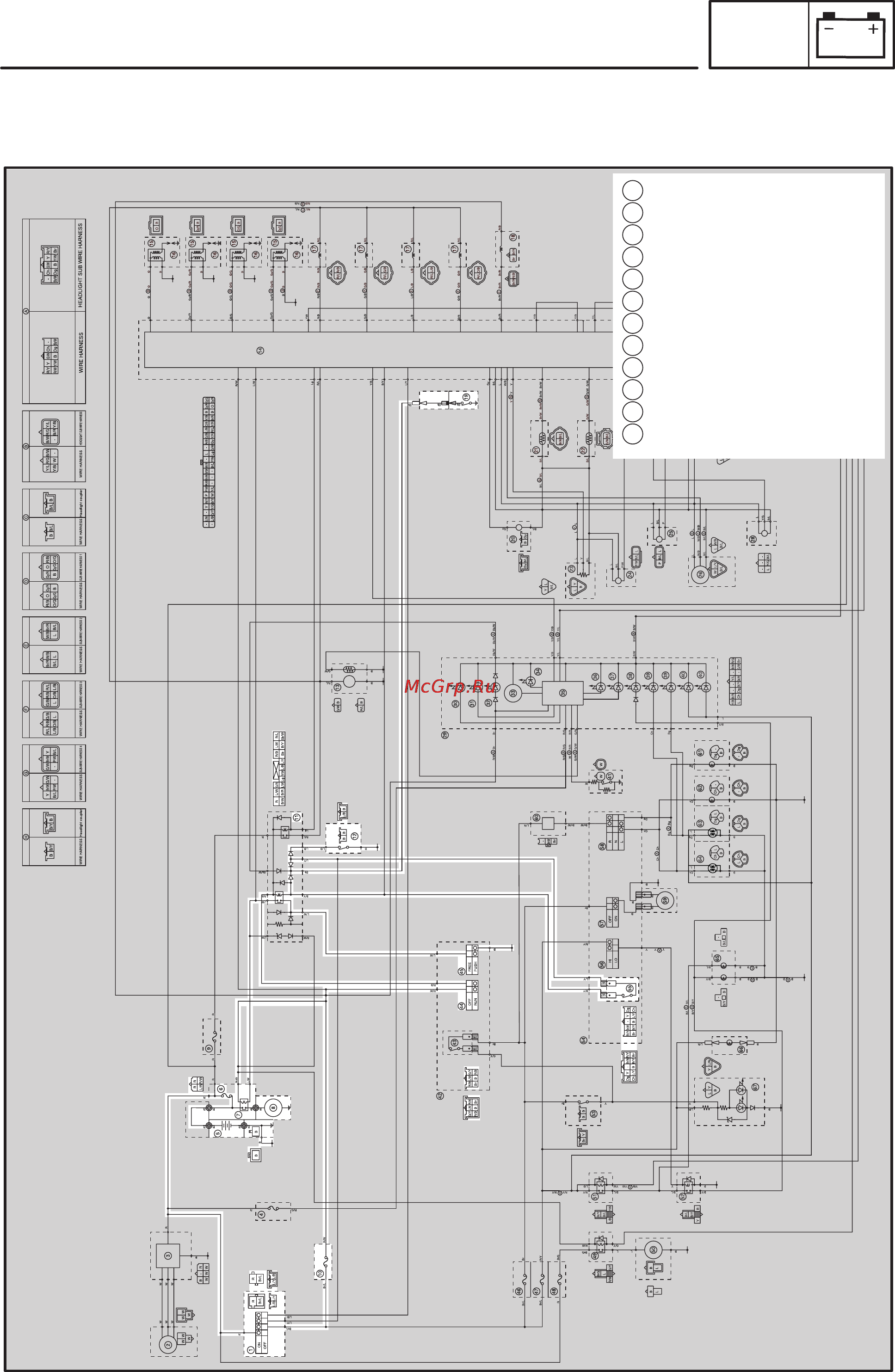

Yamaha YZF-R6 (2003) [384/434] Electric starting system
![Yamaha YZF-R6 (2003) [384/434] Electric starting system](/views2/1121348/page384/bg180.png)
8-14
1 Main switch
5 Battery
6 Fuse (main)
7 Starter relay
8 Starter motor
10 Fuse (ignition)
11 Starting circuit cut-off relay
12 Sidestand switch
19 Neutral switch
44 Engine stop switch
45 Start switch
55 Clutch switch
ELECTRIC STARTING SYSTEM
ELEC
EAS00755
ELECTRIC STARTING SYSTEM
CIRCUIT DIAGRAM
