Usage and Storage Instructions 3
EN
English

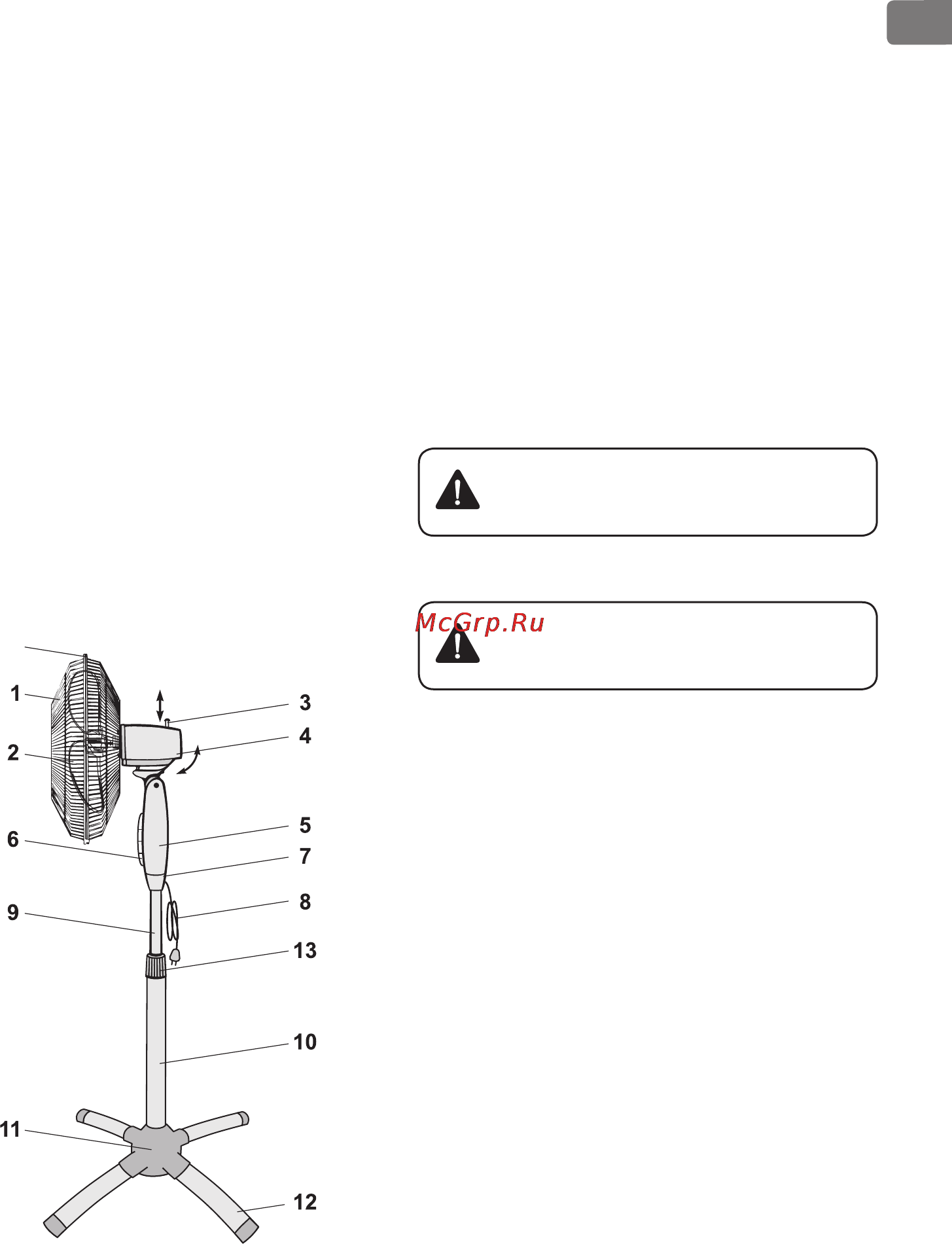

DECRIPTION OF THE MAIN PARTS
1. Protection grille
2. Blade
3. Oscillation button
4. Motor
5. Control panel
6. Switch
7. Screw of the control panel
8. Power cord
9. Inner tube
10. Outer tube
11. Cross-shaped plastic base
12. Feet
13. Height-adjustment mechanism
14. Plastic ring between the two protection grilles
14
ASSEMBLY INSTRUCTIONS
The only tool, which is needed to assemble this
appliance is a cross-head screwdriver (it is not included
in this product).
1. Take the inner tube out of the outer one and secure
them by the height-adjustment mechanism.
2. Position the lower part of the outer tube into the
cross-shaped plastic base and tighten the screw in
order to assemble the two parts together.
3. Install the 4 feet into the cross-shaped plastic base
by thrusting them till every foot gets xed and
remains stable (there is a special groove which
regulates the direction of the foot)
4. Installation of the control panel:
Never disassemble the restrictor of the inner tube.
If you disassemble it, it might be necessary to repair it.
Never loosen the screw of the inner tube!
•
Loosen the screw (7) of the control panel (5) by
turning it to the left
•
Position the opening which is located at the
lower part of the control panel (5) over the inner
tube (9).
•
Turn the screw of the control panel (5) clockwise
and tighten it rmly.
