4 Usage and Storage Instructions EN
EN
5. Assembly of the front part of the fan

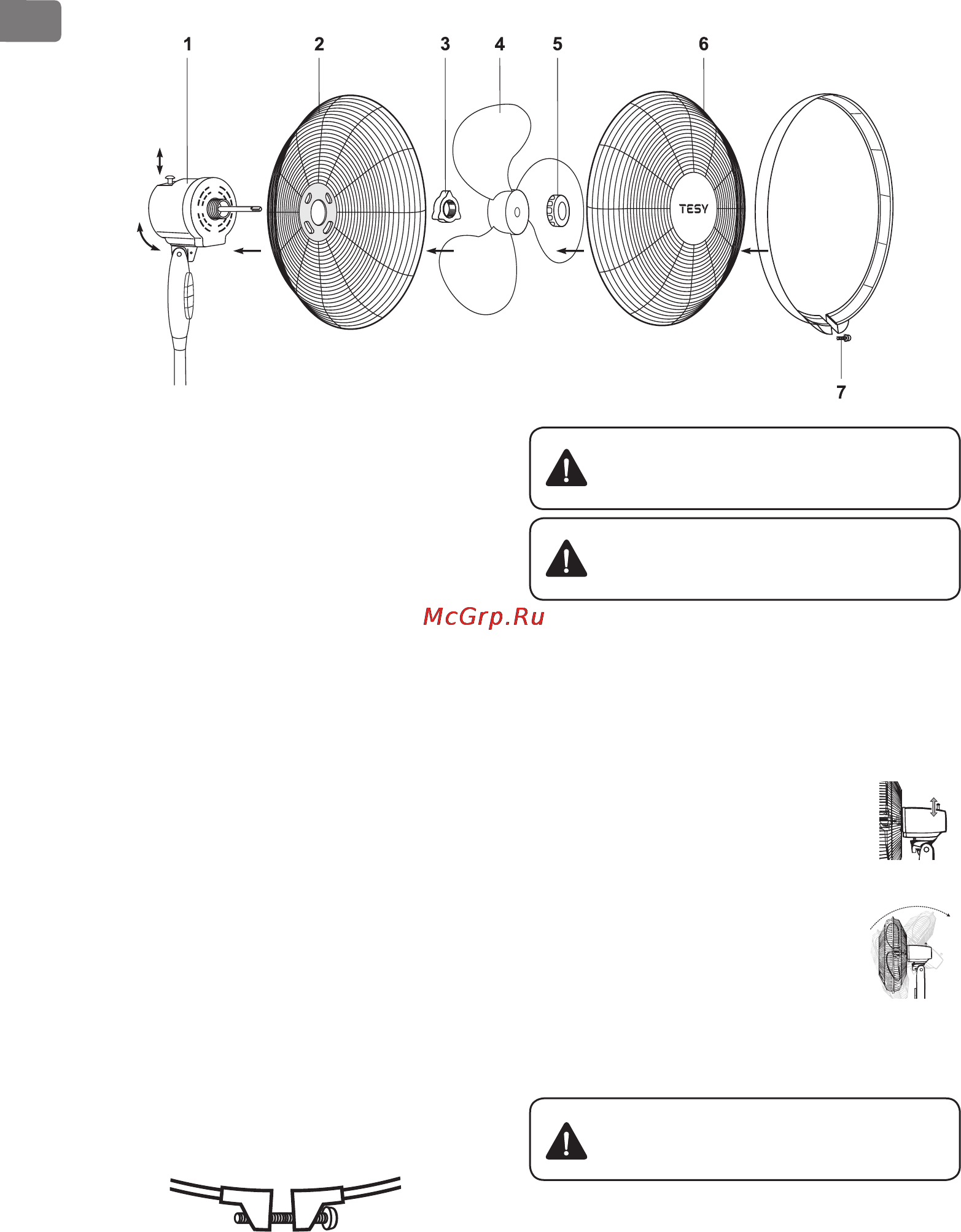

Main parts:
1. Motor
2. Back protection cover
3. Locking protection nut
4. Blade
5. Blade cover
6. Front protection cover
7. Screw and plastic groove
•
Installation of the back protection cover
Install the back protection cover (2) onto the
motor (1) and secure the cover by the locking
nut (3).
•
Installation of the blade
Insert the blade (4) onto the shaft of the motor.
Secure it by means of its cover (5).
•
Installation of the front protection cover
Installation of the front protection grille (6). Turn
the front protection cover as much as its trade
mark gets in horizontal position, and then install
the back protection cover. Connect them by
applying pressure over their peripheral zones
so that both protection covers get xed by the
outer plastic groove.
•
Secure by a screw (7) – outer plastic groove
which locks into place the front and the back
protection grilles
Never operate the fan with cracked or damaged
blade!
This appliance is designed for on-oor operation
only!
OPERATION INSTRUCTIONS
Blade speed control
The speed of the fan blade is controlled by buttons.
During operation you can push any of the buttons for
blade speed (1-2-3). To stop the fan, push “O” button.
Oscillation
Push downwards the oscillation button and
the fan will start to oscillate, pull the
oscillation button upwards and the
oscillation will stop.
Tilt adjustment
You can direct the air ow upwards or
downwards after you loosen slightly the
securing screw which is located between
the motor and the control panel. After
adjusting the fan in the desired direction
(upwards or downwards), you have to tighten the
securing screw to such extent that the protection cover
cannot move freely.
Always switch the fan o before adjusting its tilt
position.
Height adjustment
Loosen the height adjustment screw, then adjust the
tube to the desired height and tighten the screw again.
