iMPOrTanT

Stationary images in video games can “burn”

into some TV screens, creating a permanent

shadow. Consult your TV owner’s manual or

manufacturer before playing games.

Connect the Component HD AV Cable

Use your component HD AV cable to connect

your console to your TV.

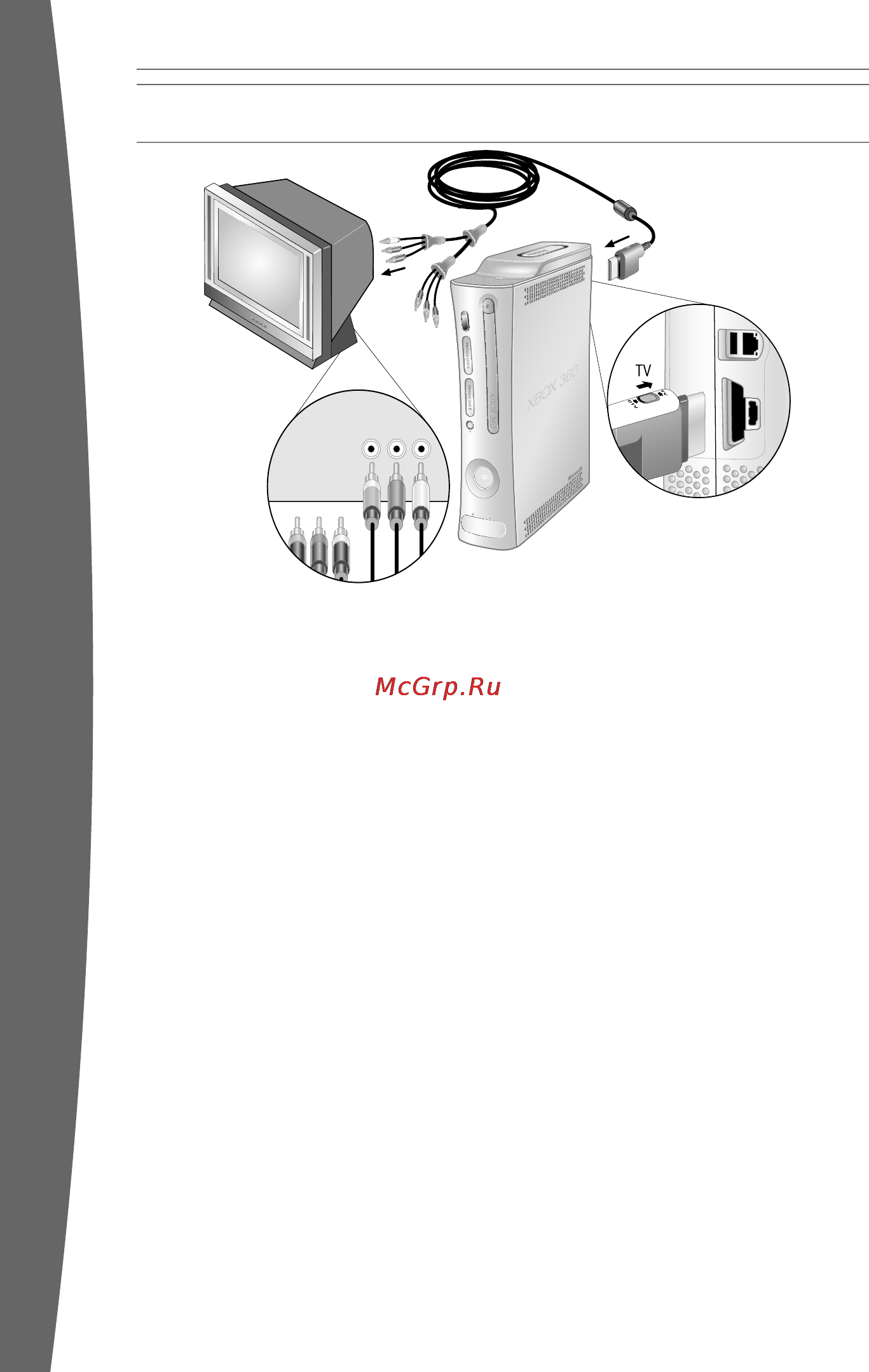

To connect to your standard TV:

1 Connect the HD AV cable connector to the

AV port on the console.

2 Set the switch on the AV port connector to

TV.

3 Connect the yellow color-banded

composite signal video connector on the

HD AV cable to the yellow input on your TV.

Leave the red, green, and blue color-

banded video connectors unconnected.

4 Connect the solid color left and right (white

and red) audio connectors on the HD AV

cable to the audio inputs on your TV or

stereo receiver.

For monaural (mono) TVs, which have only

one audio input, connect either the right or

left audio connector to the audio input.

5 Select the appropriate video input on your

TV (see No Picture under “Troubleshooting”

for more information).

nOTE

Your Xbox 360 Component HD AV Cable has

two distinct sets of connectors on the TV end

grouped by audio and video. Do not confuse

the red connector from the audio group with

the red connector from the video group.

CONNECT TO YOUR TV AND AUDIO SYSTEM
