2. FEATURE LIST
Built in 40-bit digital effect processor.
Remote control through PC link
1 factory preset and 32 user presets by large memory capacity
Delay lines up to 582ms for each output
User-controllable clip limiter.
Stereo (dual channel), or bridge mono (bi-amp output) operation mode.
Balanced XLR inputs/parallel outputs to ensure noiseless long wiring.
Binding post and Neutrik Speakon connectors for outputs.
Front panel LED indicators for operating/protection, limiter, power and clip.
Manufactured under QS9000, VDA6.1 certified management system.
3. CONTROL ELEMENTS
3.1 Front Panel
The LTO DPA2500/4000 40 Bit DSP Stereo Amplifier is a high power, low profile, professional Power Amplifier
with In fact, the amplifier functions far beyond a traditional power amplifier,advanced features and great reliability.
it is also a versatile effect processor. You can set the input and output audio configuration through recalling one
of the presets included in the internal memory or PC editor software.
The amplifier delivers tremendous power in only two rack spaces, providing high performance under the most
demanding conditions. It contains two independent channels, with separate AC transformer secondaries, power
supplies and protection system. All protection systems, except the main AC one, are self resetting upon removal
of fault, and the remaining channels shall continue to operate. Each channel has independent protective circuitry
against open circuit, short circuit, mismatched loads and over temperature.
Thanks to the use of selected and expensive components, the performance of DPA2500/4000 is worth much more
than its price.
1. Power Switch
Turn the unit power ON or OFF.
2. Clip LED
When the signal distortion reaches or surpasses 0.5%, the LED lights up. This means the output level of
signal source is too high and it is time to reduce input level until clip LED turns off.
3. Output Limiter LED
While the unit is limiting the output signal, the LED lights up.
1. INTRODUCTION
4
4. Operating and Protection LED
In normal operation, the LED is green, if the LED is red, it means the unit is in heat protection, no signal output at
the time and over-heat inside the unit (the surface temperature of power transistor is over 100 ), the temperature
must be lowered through better ventilation and decrease the signal level etc. After the temperature has dro-
pped, the protection stops and meanwhile the LED turns off with the unit recover normal work.
This LED lights up when the unit is powered.
5. Power LED

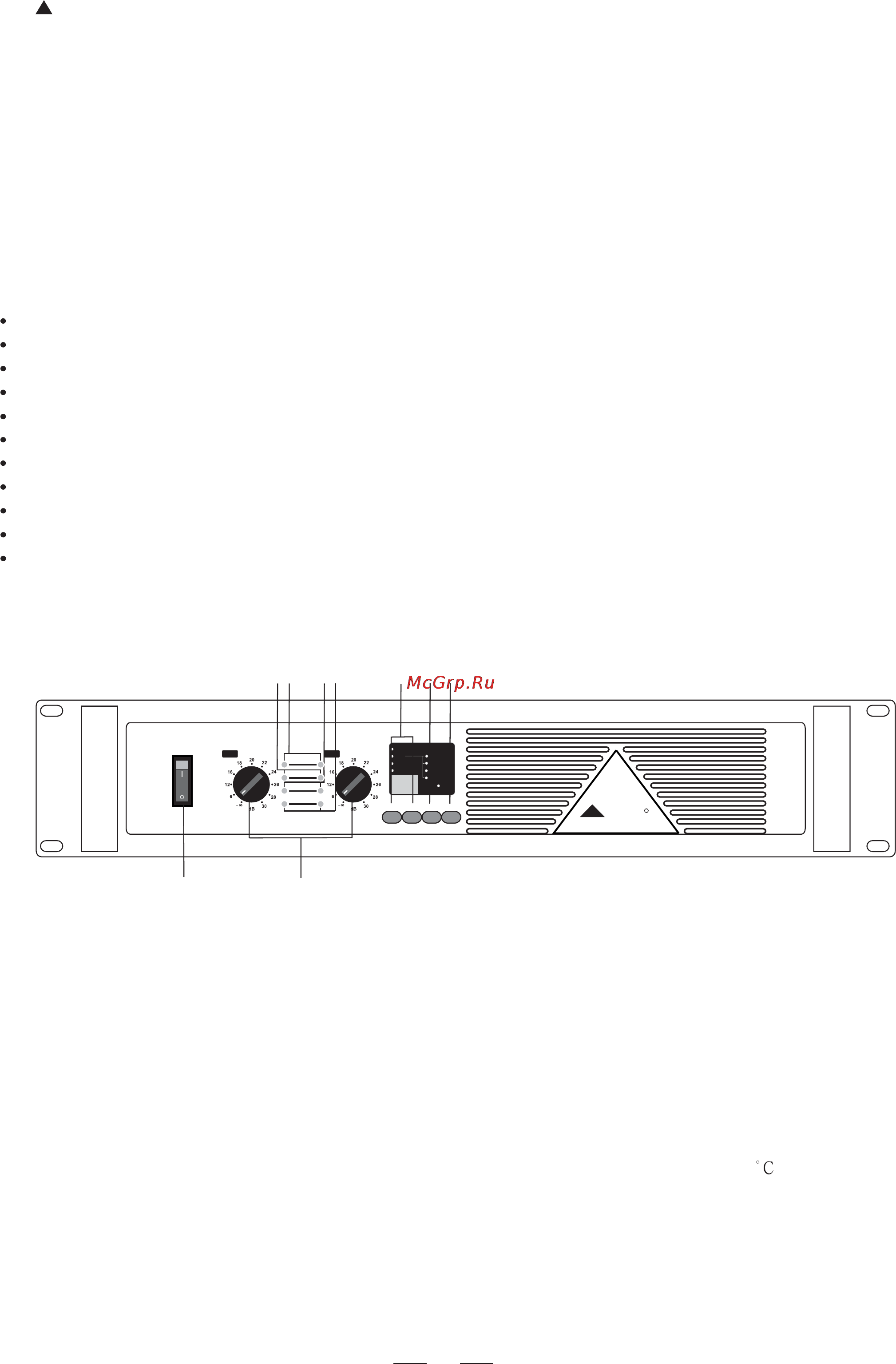

Easy to operate front panel controls
DPA 4000
CH1
CLIP
LIMIT
OPERATING/
PROTECTION
POWER ON
40 BIT DSP ENHANCED
Stereo Power Amplifier
UP
DOWN
ENTER
SELECT
POWER
ON
OFF
1
23 4
5
987
6
CH2
LTO
R
PRESET
EDIT
VOLUME
CHSEL
HUM CANCEL
COMM
NOISE GATE
MULTICOMP
SIG/LIMITER
88
