HEAT RECOVERY AIR HANDLING UNITS

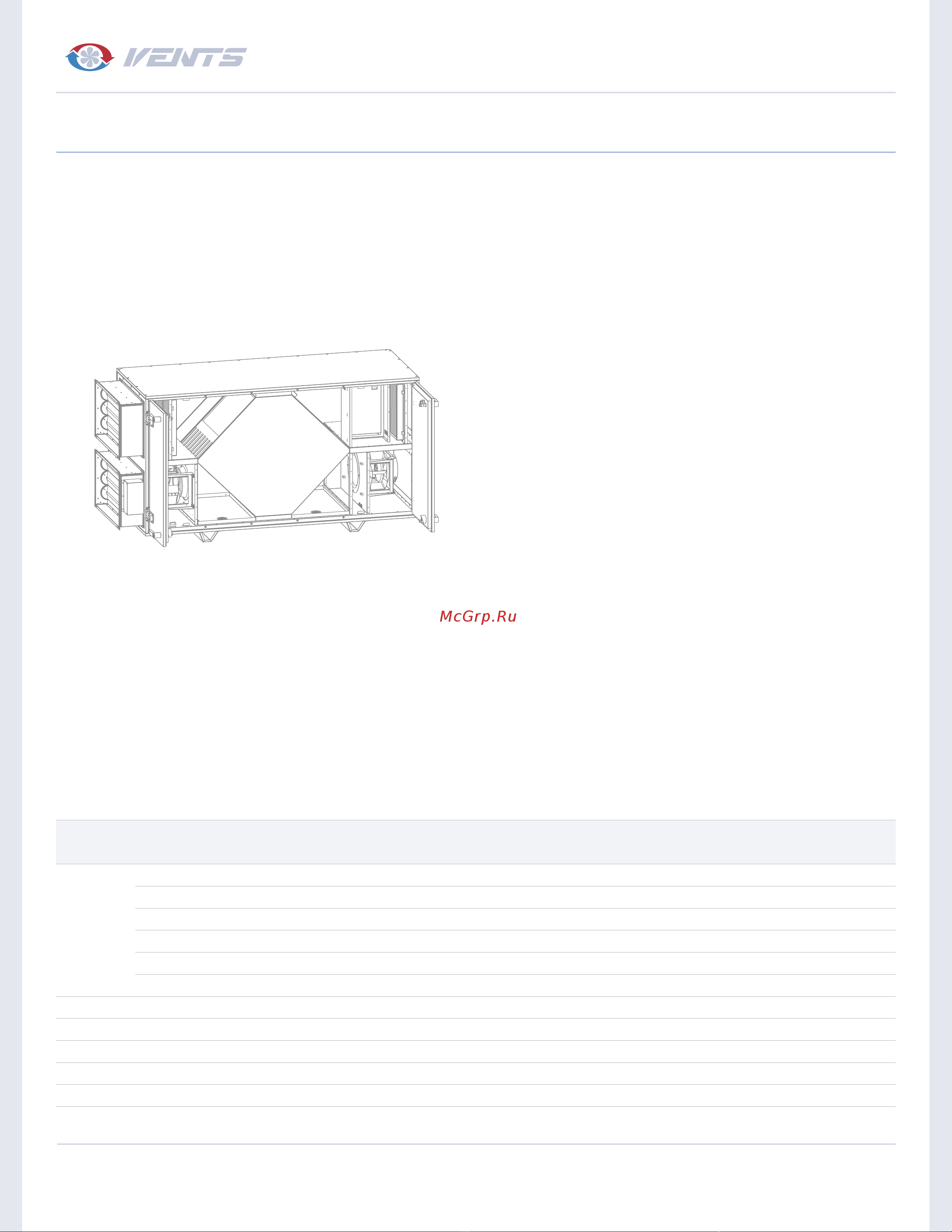

HEAT RECOVERY VENTILATION UNIT CFH

The brand new premium line of commercial heat recovery air handling units for floor

mounting with high-efficient counter-flow heat exchanger. Available in 8 standard sizes

based on the air flow capacity of 800, 1200, 1500, 2500, 3500, 5000, 6000, 9000

Optionally accomplished with electric/water heater or water/freon cooler and ready

for operation with all necessary control elements.

Main features:

• High-efficient EC fans, backward-curved, external rotor. Low power

consumption at any speed, low noise level and stable operation in any

climate conditions.

• Integrated plug-and-play controls on the basis of the Carel controller. Easy

connecting via web-interface using the Ethernet-Modbus and BACnet.

• High-efficient counter-flow heat exchanger is made of profiled plastic plates

and impregnated with elastic heat-resistant sealant.

• The stainless steel drain pan is located on the inlet and outlet sides..

• Casing: double skin; frameless; 40 mm mineral wool 90 kg/m³ for CFH 800-

6000 and with frame 50 mm for CFH 9000. Outer skin: zinc-aluminum. The

units have C4 corrosion resistance class in compliance with ISO 12944. Each

model is available in left- and right-handed modifications. The units have

service access on both sides and on the bottom.

• Washable F7, G4 (optional) panel filters in exhaust and supply air streams.

• IIntegrated control panels:

- A30 th-Tune: standard control panel with handy interface ensures basic

setup of parameters.

- A32 pGDe: control panel with expanded functionality ensures complete

setup of parameters.

• Integrated bypass of the heat exchanger with automatic damper and Belimo

actuator ensures active freeze protection. Free heating and cooling functions

are also available. Built-in automatic external air dampers with Belimo

actuators.

• ECO-Design’18 compliant.

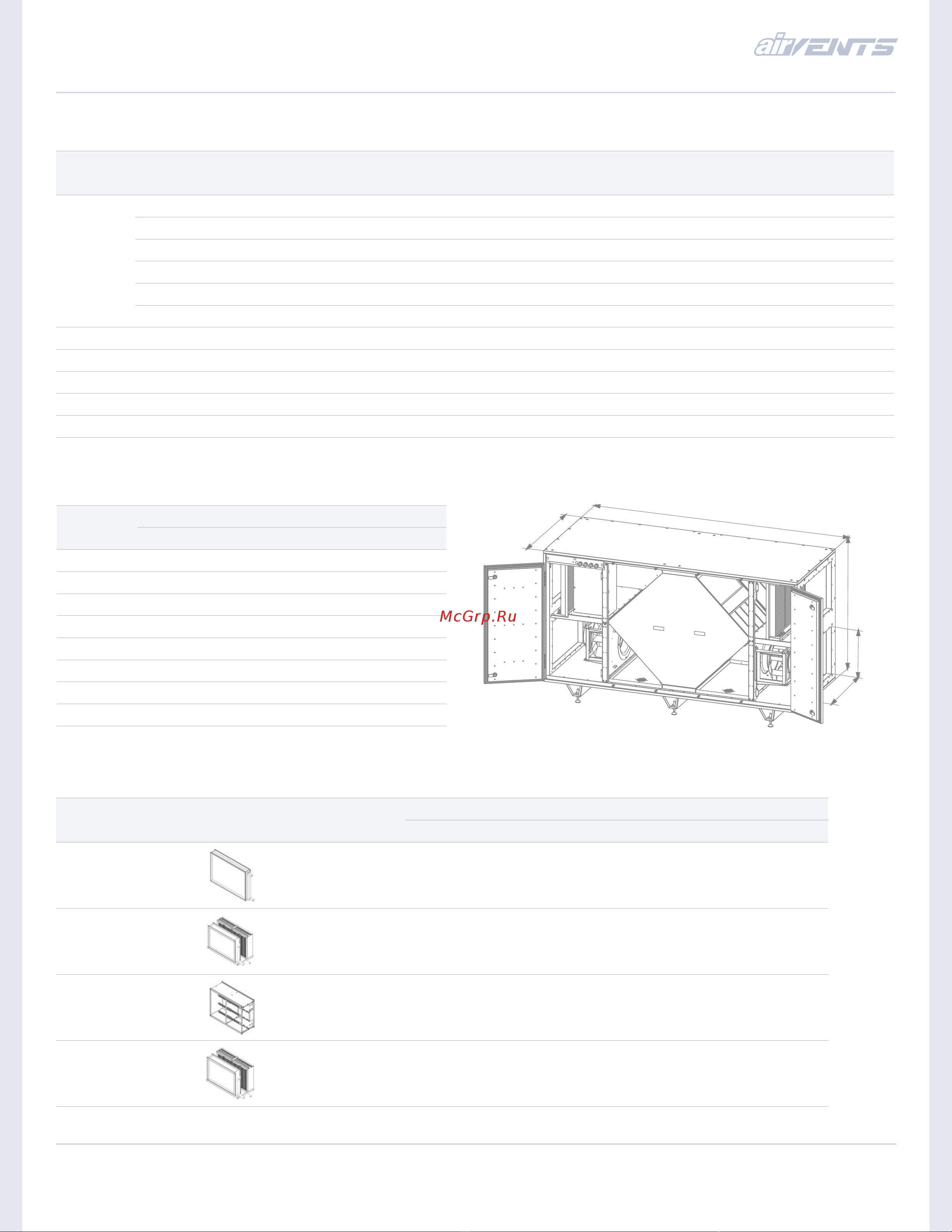

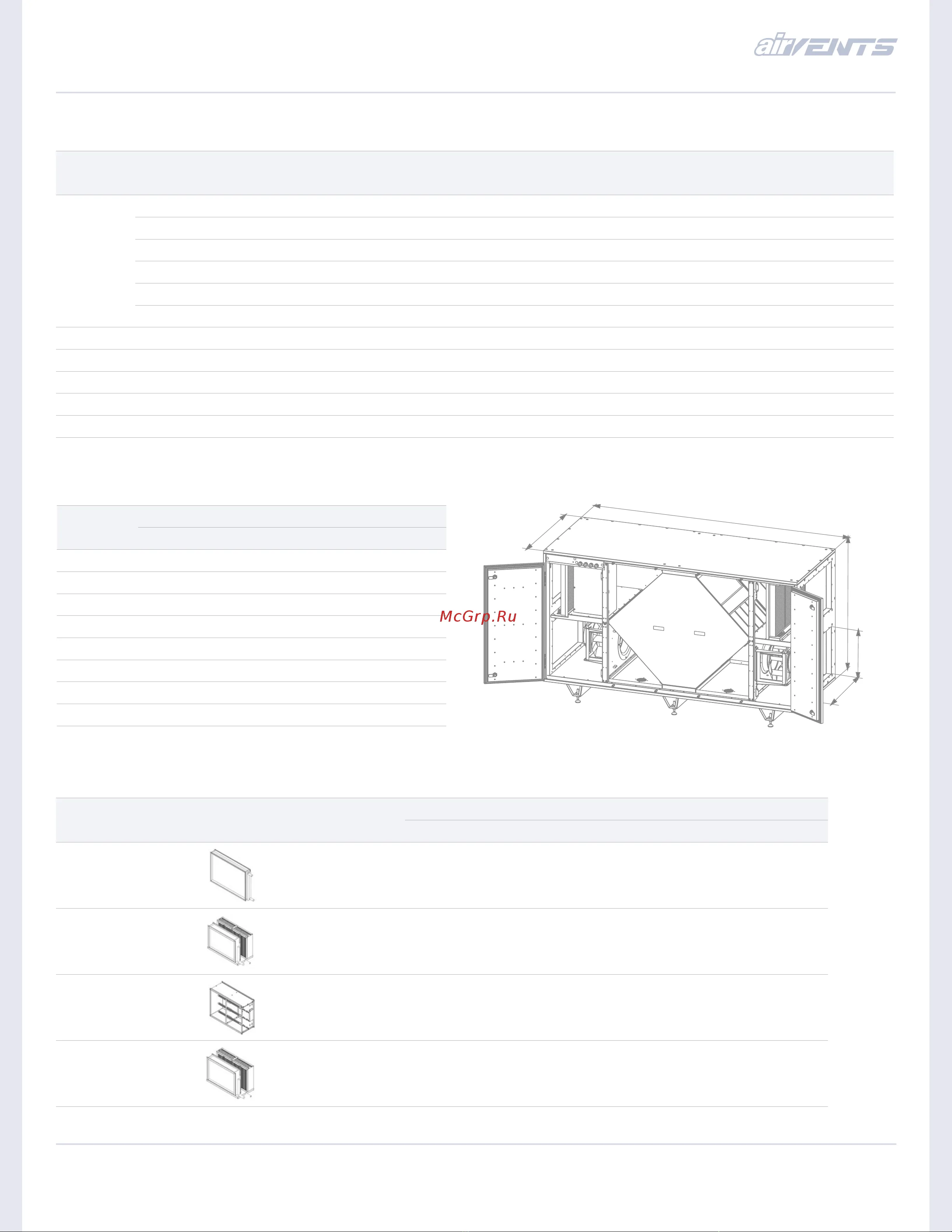

Technical parameters

Rated air flow [m³/h] 800 1200 1500 2500

EC fans

Phase/voltage [50/60Hz/VAC] 1~200-240 1~200/277

Power/current [kW/A] 2x0.27/2.5 2x0.61/5.3 2x0.61/5.3 2x0.835/6.9

Fan speed [min

-1

] 2800 3000 3000 3000

Perm. amb. temp. [°C] -35...+50

Motor protection IP54

Insulation class F

Filter exhaust/supply ePM1 70%/ePM1 70% (ISO 16890)-F7 (EN779)

Weight (net, without packing) [kg] 230 230 295 295

Housing protection class IP34

Sound pressure lvl @ 3m to environment [dBA] 34 35 37 37

Transported air temperature [°C] -25...+40
