6
EN
• In HDMI in mode (connected via
HDMI IN 1 or HDMI IN 2), press and
hold to switch audio output from the
Soundbar speaker or TV speaker.
s (Play/Pause)
• Start, pause or resume play in USB
mode and Bluetooth mode (only for
AVRCP-supported Bluetooth devices).
• Press and hold to stop play in USB
mode.
t USB
Switch to USB mode.
u AUX
Switch your audio source to the AUX
connection.
v COAX
Switch your audio source to the coaxial
connection.
w HDMI 2
Switch your source to the HDMI IN 2
connection.

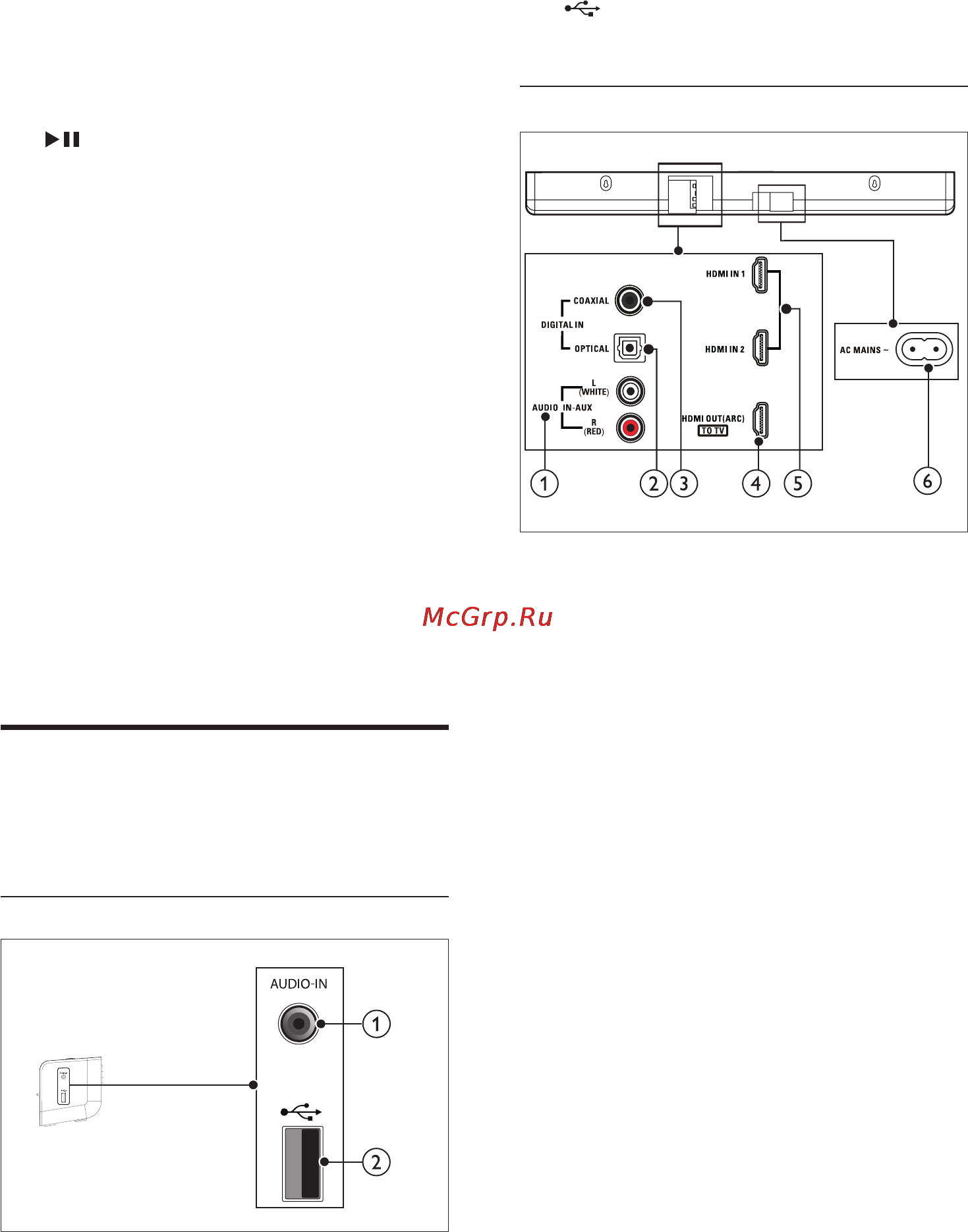

Connectors
This section includes an overview of the
connectors available on your SoundBar.
Side connectors
a AUDIO-IN
Audio input from an MP3 player (3.5mm
jack).
b (USB)
Audio input from a USB storage device.
Rear connectors
a AUDIO IN-AUX
Connect to an analog audio output on the
TV or an analog device.
b DIGITAL IN-OPTICAL
Connect to an optical audio output on the
TV or a digital device.
c DIGITAL IN-COAXIAL
Connect to a coaxial audio output on the
TV or a digital device.
d TO TV-HDMI OUT (ARC)
Connect to the HDMI input on the TV.
e HDMI IN 1 / HDMI IN 2
Connect to the HDMI output on a digital
device.
f AC MAINS~
Connect to the power supply.
