Section 02 ENGINE

Subsection 07 (PTO HOUSING AND MAGNETO)

529036117

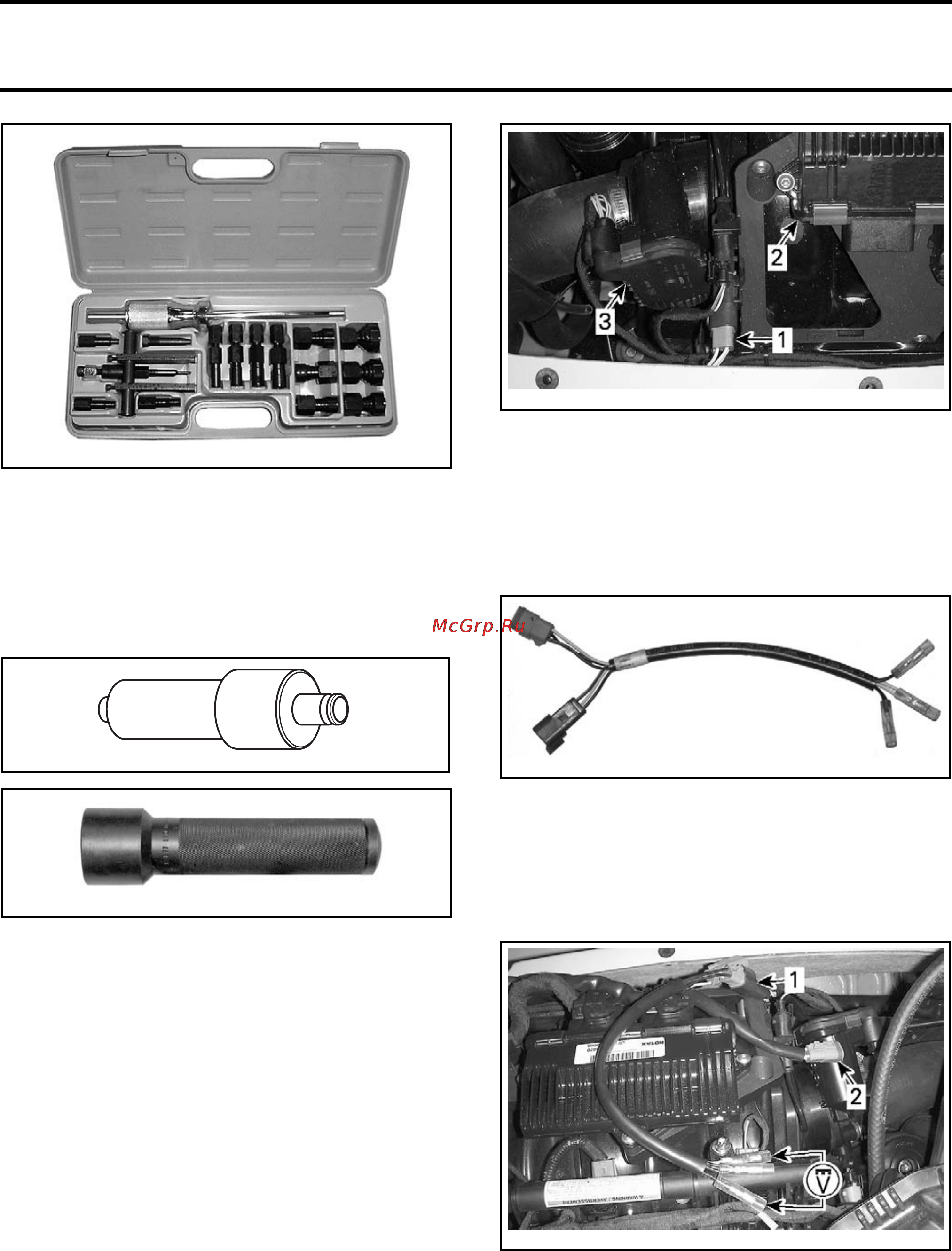

Starter Drive Bearing Installation

Prior to assembly grease starter drive bearing with

ISOFLEX GREASE TOPAS NB 52 (P/N 293 550 021).

Install st

arter drive bearing in PTO housing using

the

STARTE

R DRIVE SEAL PUSHER (P/N 420 876 502)

and the HAN

DLE (P/N 420 877 650)

420876502

420877650

STATOR

Stator O

utput Voltage Test

Disconnect the magneto wiring harness connec-

tor. This connector is located between the ECM

and the throttle body.

smr2009-016-015_b

1. Magneto connector

2. ECM

3. Throttle body

Install the 3-PIN MAGNETO HARNESS ADAPTER

(P/N 529 036 016)

onto the magneto connector.

NOTE: Do not connect the magneto harness

adapter to the vehicle harness connector.

529036016

Set multimeter to Vac scale.

Start engine.

Connect multimeter between each pair of YEL-

LOW wires as per following table. Measure volt-

age between each pair of wires.

smr20

09-022-101_a

STATOR OUTPUT VOLTAGE TEST

1. Connect adapter to magneto stator connector

2. Leav

e vehicle harness disconnected

Read voltage as per following table.

78 smr2009-022
