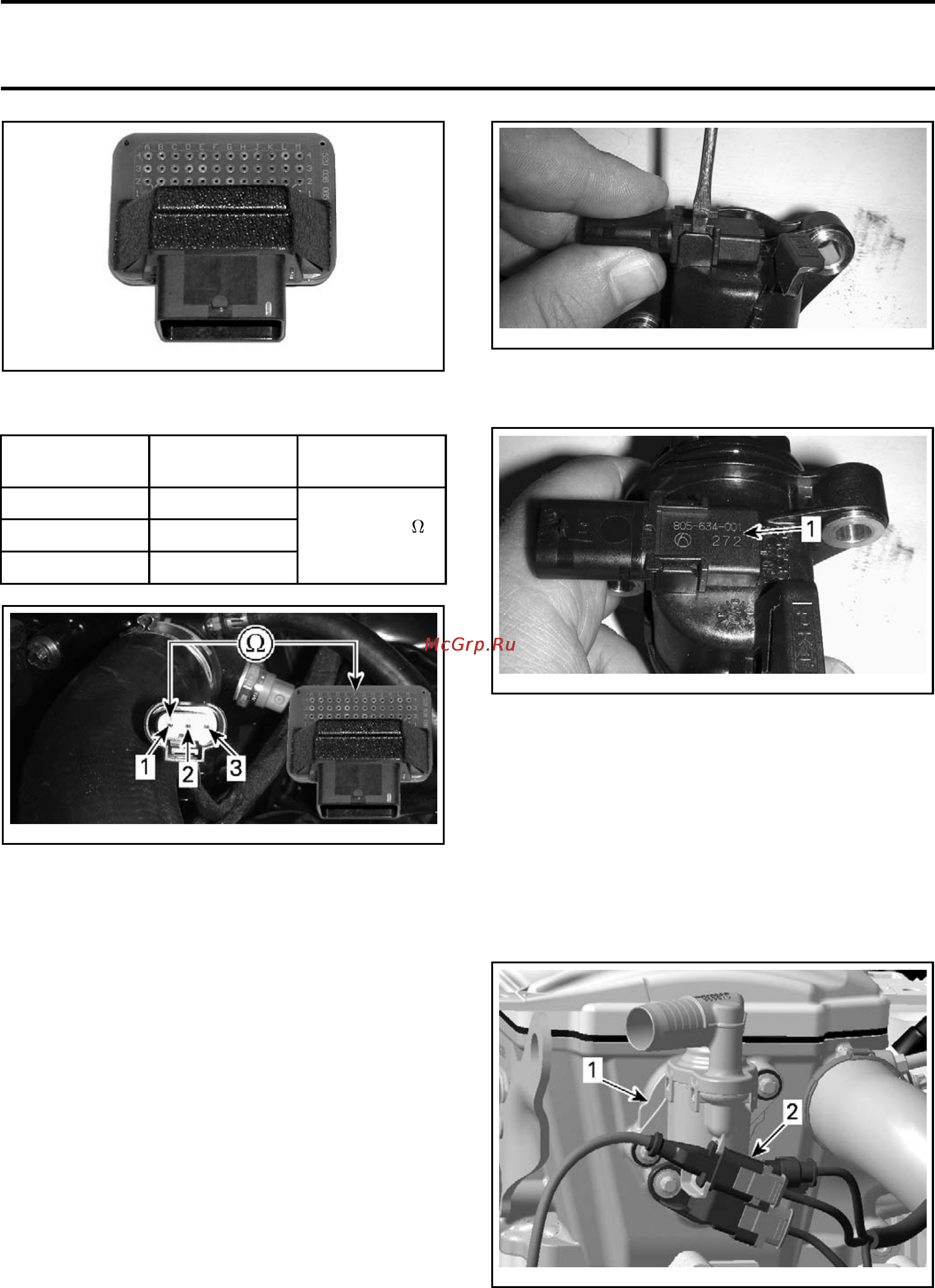

Section 02 ENGINE
Subsection 08 (LUBRICATION SYSTEM)
529036166
Check continuity of the blow-by valve TOPS
switch circuit as per following table.
TOPS SWITCH
CONNECTOR
ECM
ADAPTER
RESISTANCE
Pin 1 Pin F4
Pin 2
Pin G1
Pin 3
Pin C4
Closeto0
(continuity)
smr2009-023-103_b
1. Pin 1
2. Pin 2
3. Pin 3
If continuity test is good, check ECM. Refer to
ELECTRONIC FUEL INJECTION (EFI)
subsection.
If continuity test is not good, repair or replace de-
fective wires or connectors.
Blow-By Valve TOPS Switch
Replacement
Remove blow-by valve and turn it upside down.
Insert a small screwdriver between TOPS switch
anditsretainingtab. TwistandholdtheTOPS
switch then release the other retaining tab.
smr2009-023-051
When installing the TOPS switch, make sure
printed information is visible.
smr2009-023-052_a
1. TOPS valve inscriptions
Blow-By Valve Removal
Remove:
– Deck extension, refer to
BODY
subsection
– Air intake silencer, refer to
AIR INTAKE SYS-
TEM
subsection.
Remove ventilation hose from blow-by valve.
Remove the CPS connector from its support on
blow-by valve.
smr2
009-023-013_a
1. Blow-by valve
2. CPS connector
110
smr2009-023
