Section 02 ENGINE

Subsection 08 (LUBRICATION SYSTEM)

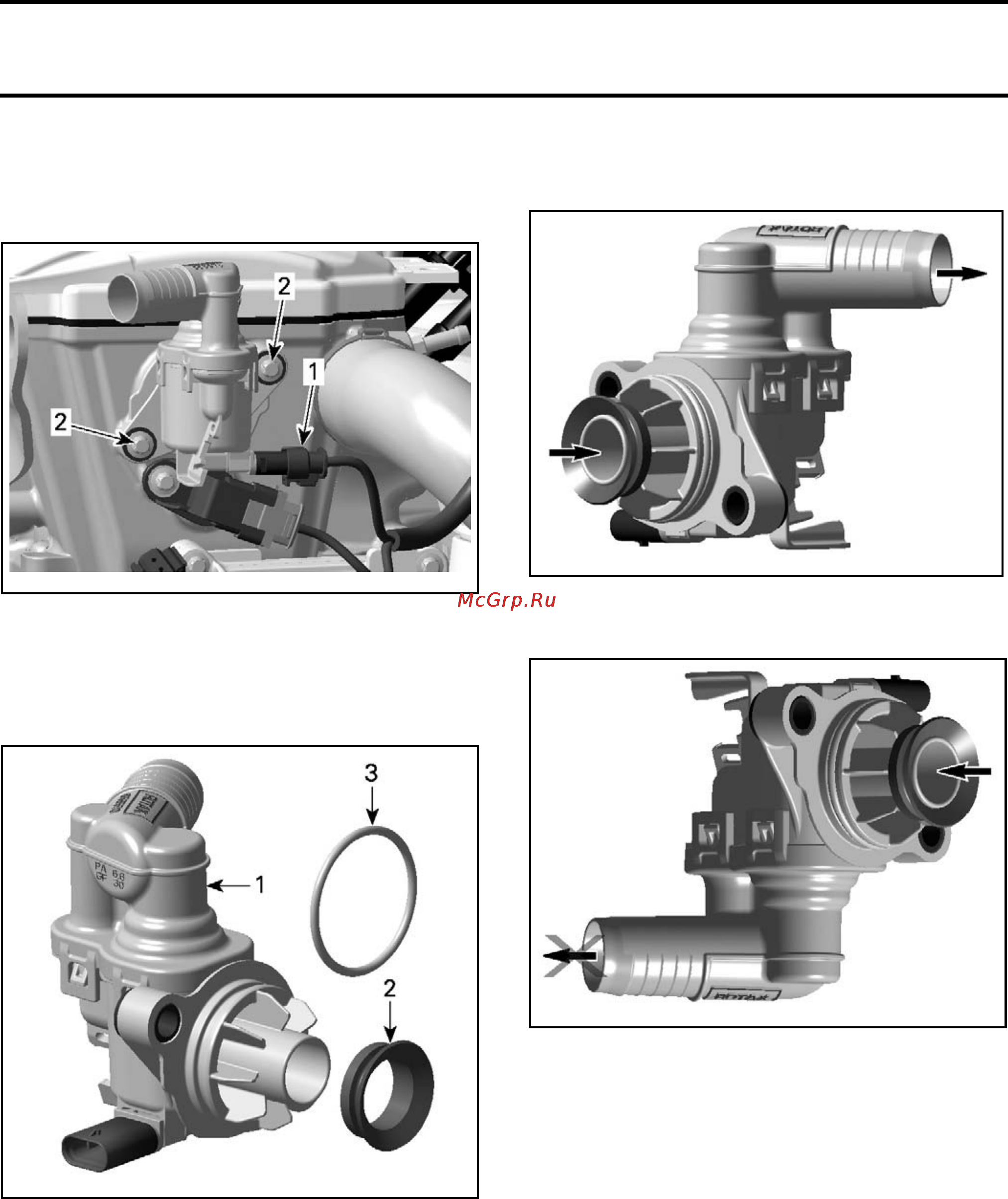

Disconnect the TOPS switch connector of the

blow-by valve.

Unscrew and remove the blow-by valve.

smr2009-023-014_a

1. TOPS switc

h connector

2. Retaining screws

Remove O-ring and V-ring.

NOTE: The blow-by valve can not be disassem-

bled.

smr2009-023-022_a

1. Blow by valve

2. V-ring

3. O-ring

Blow By Valve Inspection

If O-ring or V-ring are brittle, cracked or hard, re-

place them.

If blow-by valve is damaged, replace it.

Clean all contact surfaces of blow-by valve.

Place a clean rag on valve inlet.

Blow air through inlet port. Air must flow freely to

the outlet port.

smr2009-0

23-023_a

Turn valve upside down and blow air again. Air

must not flow out.

smr2009-023-024_a

If test fails, replace blow-by valve.

Blow-By Valve Installation

The installation is the reverse of the removal pro-

cedure. However, pay attention to the following.

Install the blow-by valve with NEW O-ring and

V-ring.

Apply

LOCTITE 243 (BLUE) (P/N 293 800 060) on

threads of blow-by valve screws.

Tighten blow-by valve screws to 9 N•m

(80 lbf•in).

Reinstall remaining removed parts.

OIL COOLER

The oil cooler is located below the air intake man-

ifold.

smr2009-023 111
