Section 02 ENGINE

Subsection 08 (LUBRICATION SYSTEM)

smr2009-023-025_a

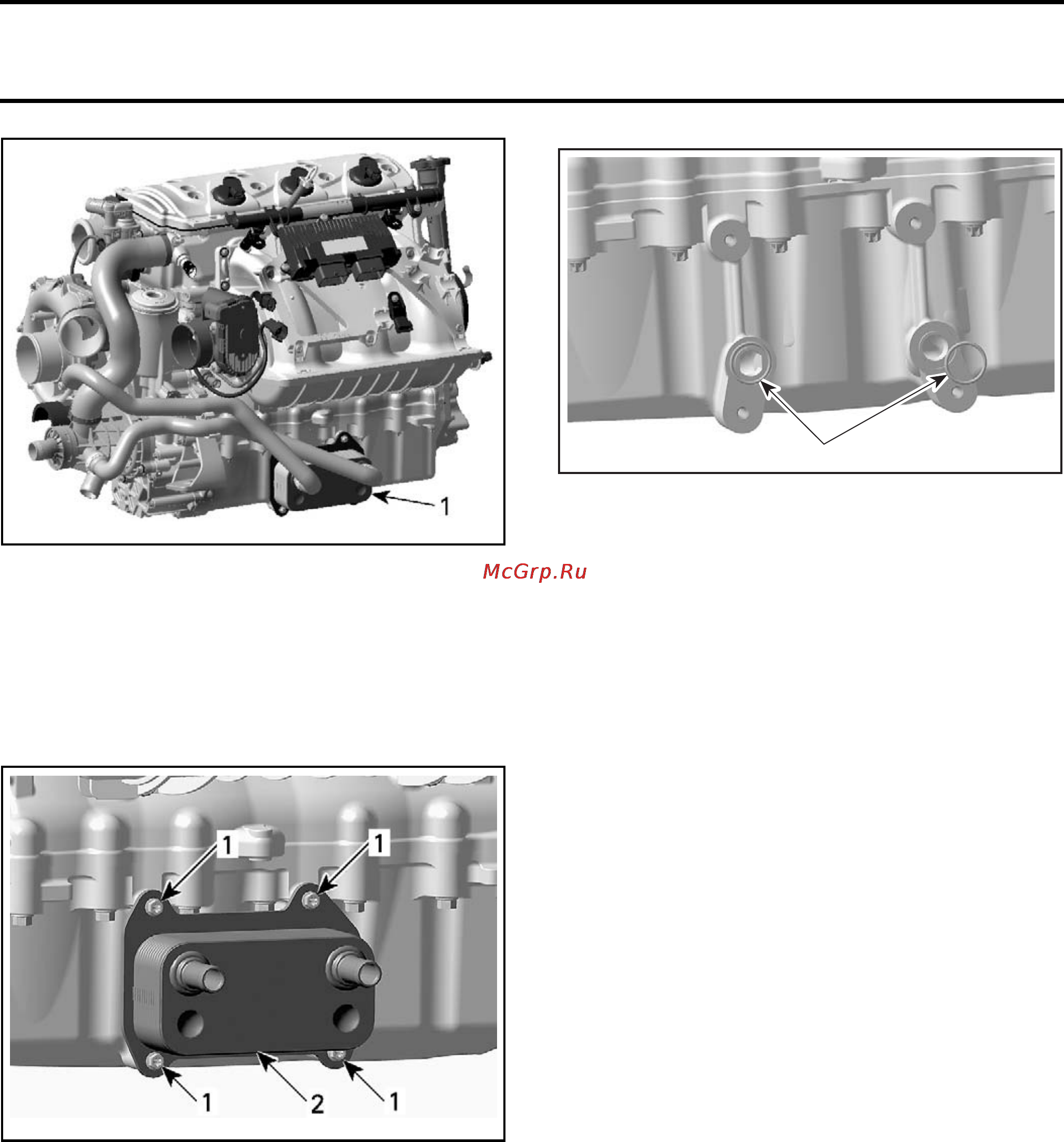

1. Oil cooler

Oil Cooler Removal

Remove engine from vehicle. Refer to

ENGINE

REMOVAL AND INSTALLATION

subsection.

Disconnect cooling hoses from oil cooler.

Remove screws securing oil cooler.

smr2007-015-007_a

1. Oil cooler crews

2. Oil coo

ler

Remove oil cooler from engine. Ensure not to lose

O-rings located between oil cooler and engine.

R1503motr148A

1. O-rings

Oil Cooler Inspection

If O-rings are brittle, cracked or hard, replace

them.

Clean both contact surfaces of oil cooler.

Check and clean the oil inlet and outlet area for dirt

and other contaminations.

Oil Cooler Installation

For installation, reverse the removal procedure.

Pay attention to the following details.

Apply engine oil on O-rings.

Apply

LOCTITE 243 (BLUE) (P/N 293 800 060) on

threads of oil cooler screws.

Tighten screws to 9N•m (80 lbf•in).
