Section 02 ENGINE

Subsection 09 (COOLING SYSTEM)

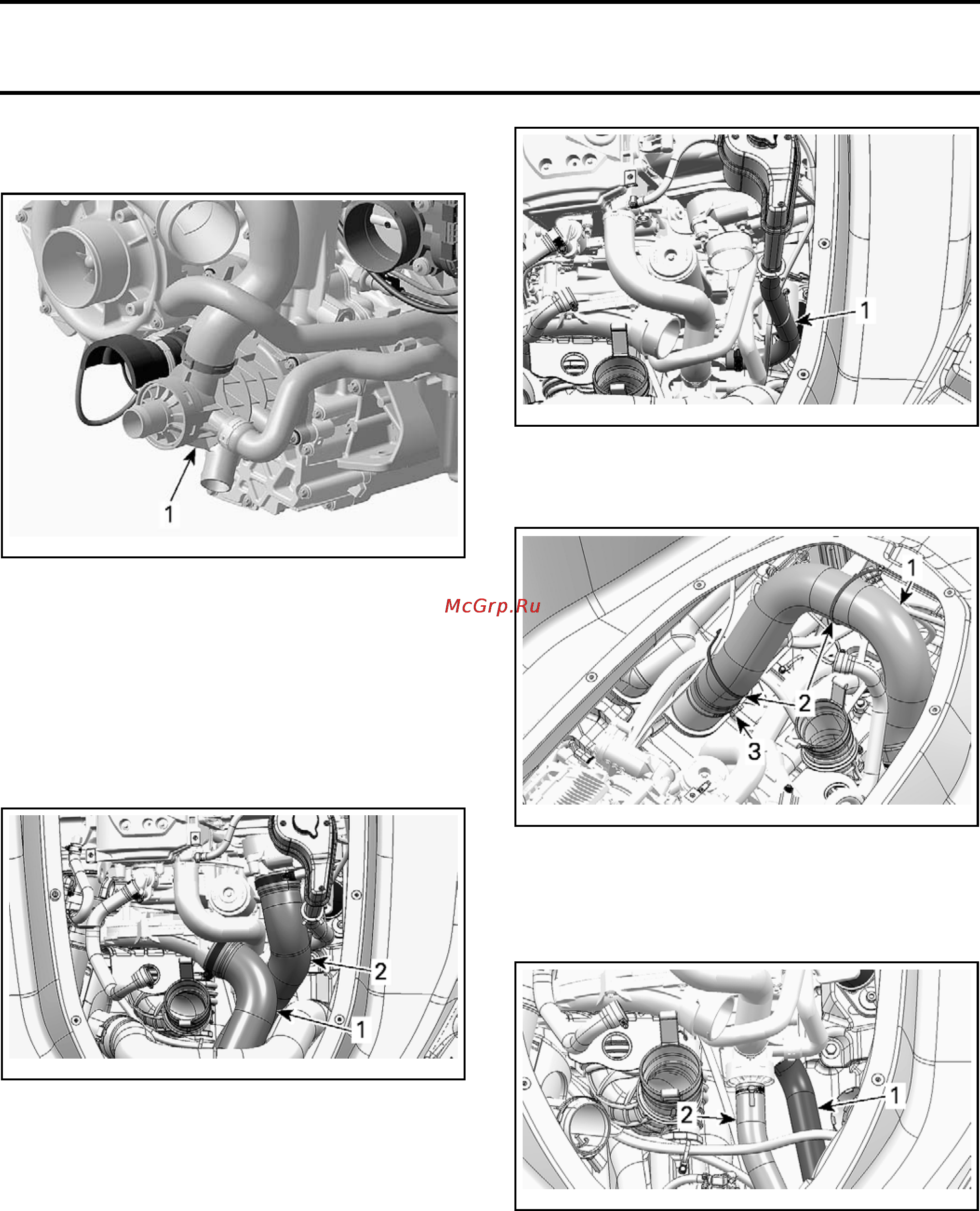

WATER PUMP HOUSING

smr2009-024-004_b

1. Water pump housing

Water Pump Housing Removal

Remove the moving deck. Refer to

BODY

sub-

section.

Remove the air intake silencer. Refer to

AIR IN-

TAKE SYSTEM

subsection.

Remove both air hoses from intercooler to reach

supercharger.

smr2009-024-104_a

1. Intercooler air inlet hose

2. Intercooler air outlet hose

Drain cooling system and engine oil.

Disconnect the coolant expansion tank hose from

water pump housing and move expansion tank

aside to make room.

smr2009-024-105_a

1. Expansion tank hose

Disconnect exhaust hose from the resonator.

Place hose over muffler.

smr2009-024-106_a

1. Exhaust hose

2. Cut thes

e locking ties

3. Retaining clamp

Disconnect ride plate hoses from water pump

housing.

smr2009-024-107_a

1. Ride plate outlet hose

2. Ride plate inlet hose

Disconnect the cylinder head outlet hose and oil

cooler hoses.

smr2009-024 121
