Section 02 ENGINE

Subsection 09 (COOLING SYSTEM)

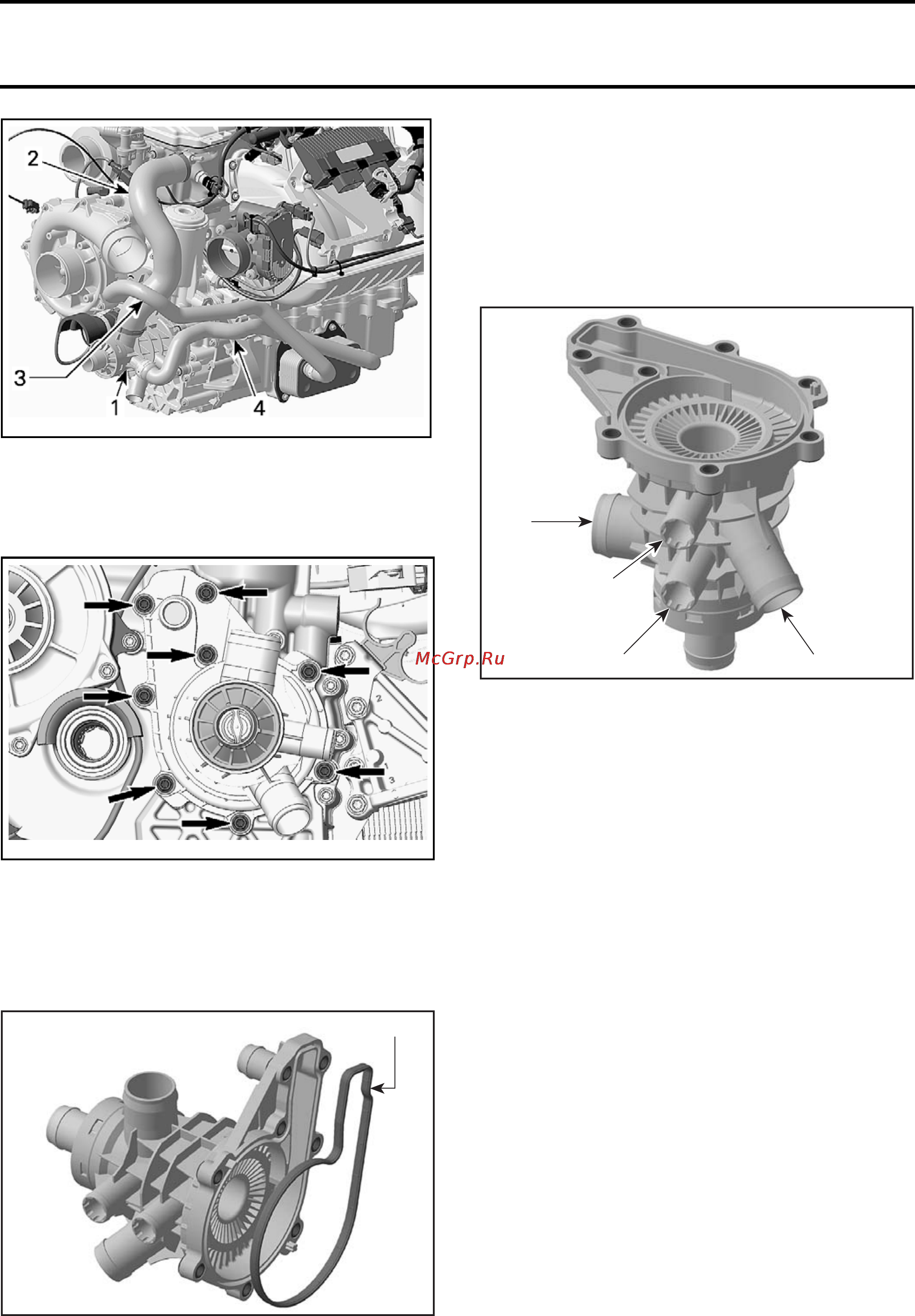

smr2009-024-006_a

1. Water pump housing

2. Cylinder head hose

3. Oil cooler inlet hose

4. Oil cooler outlet hose

Remove water pump housing screws.

smr200

8-016-004_a

Pull the water pump housing to remove it.

Water Pump Housing Inspection

Check if gasket is brittle, hard or damaged and re-

place as necessary.

F18E11A

1. Water pump housing gasket

Check if thermostat is in good condition. Refer to

THERMOSTAT

in this subsection.

Water Pump Housing Leak Test

Plug the connections of the oil cooler return hose,

coolant tank hose, ride plate return hose and cylin-

der head return hose with a rag.

F18E12A

1. Oil cool

er return connection

2. Coolant tank hose connection

3. Ride plate return hose connection

4. Cylinde

r head return hose connection

Fill the water pump housing with water.

If a bigg

er quantity of coolant leaks out at the ride

plate ou

tlet connection, replace the water pump

housing

If there is no leak, check the operation of the ther-

mostat.

Water Pu

mp Housing Installation

The installation is the opposite of the removal pro-

cedure. However, pay attention to the following.

Apply

LOCTITE 243 (BLUE) (P/N 293 800 060) on

threads of water pump housing screws.

Install

screws as per the following illustration.

122 smr2009-024
