Section 02 ENGINE
Subsection 09 (COOLING SYSTEM)
Thermostat Installation
For installation, reverse the removal procedure,
paying attention to the following details.
Refer to
WATER PUMP HOUSING
in this subsec-
tion.
ROTARY SEAL
Rotary Seal Inspection
Check leak indicator hole for oil or coolant leak.

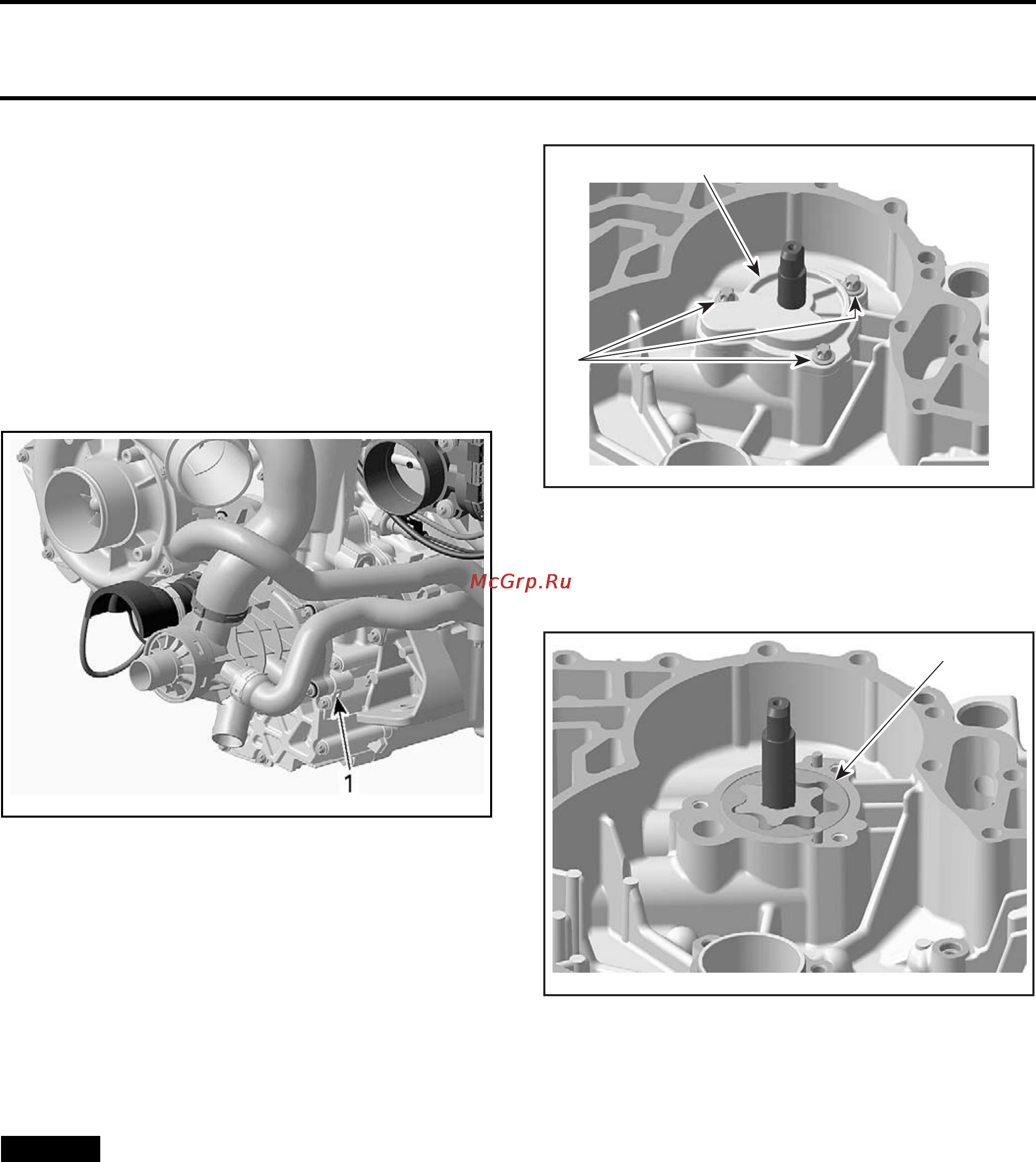

smr2009-024-004_a
1. Leak indicator hole
Coolant le
aking out of the hole indicates a defec-
tive rotar
y seal. Leaking oil indicates a faulty oil
seal.
However, if seal is disassembled both parts have
to be replaced together.
Rotary Se
al Removal
Remove
WATER PUMP HOUSING
, see proce-
dure in this subsection.
Unscrew the impeller clockwise.
NOTICE
Always unscrew the impeller clock-
wise otherwise you can damage the compo-
nents.
Remove PT
O housing Refer to
PTO HOUSING
AND MAGNE
TO
subsection.
Remove oil pump cover screws.
1
2
F18E14A
1. Oil pump cover screws
2. Oil pump cover
Remove oil pump cover.
Remove outer oil pump rotor.
1
F18E15A
1. Outer o
il pump rotor
Extract the coolant/oil pump shaft from outside
PTO housing cover with a pusher.
124 smr2009-024
